WEIGHSOUTH WS 10 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

WS 10

Weighing indicator

USER MANUAL

Edition:10052001A

Table of Contents

Need help?

Do you have a question about the WS 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for WEIGHSOUTH WS 10

Page 1 WS 10 Weighing indicator USER MANUAL Edition:10052001A...
Page 2 Safety Instruction For safety operation follow the safety instructions. WARNING Setting, Calibration Inspection and Maintain of the indicator is prohibited by Non-professional staff . WARNING Please make sure the weighing display have good ground in using WARNING Th e indicator is the static and sensitive equipment, cut off the power during electrical connections, internal components touched by hand is prohibited, and please take the measure of anti-static.

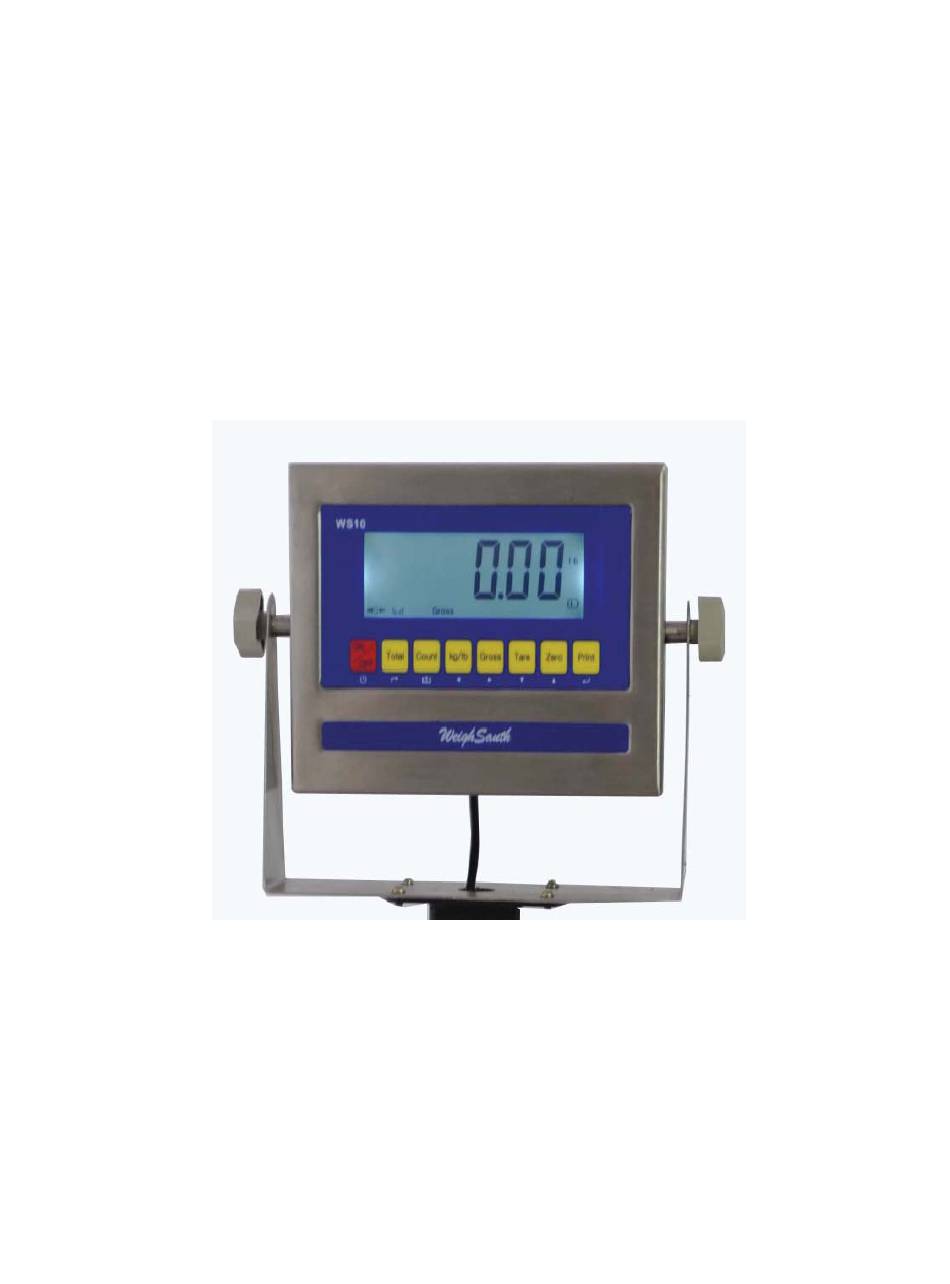

Page 3 1. Technical Parameters Th is weighing indicator is designed for bench scale. Floor scale, the basic weighing function include: Hold. Print kg/lb conversion . optional: I/O , 4-20mA output. 1.1 Main function Weighing function: Zero, tare, G.W, N.W, accumulation. printing, animal -weighing. kg/lb convert.
Page 4 Ensure that all parts are accounted for: • WeighSouth WS10 Indicator • Weighing Platform • Column • Wall Mount Bracket • Required parts bag • Operation manual Th e correct location is crucial to the accuracy of the weighing results. Select a stable, vibration-free and level location. Th e ground must be able to safely bear the weight of the fully loaded scale.
Page 5 1.3 Drawing...
Page 6 1.4 Battery instruction 1. When you use the internal battery fi rst time, you should charge the battery fully, to prevent low voltage resulted from self leakage of battery. 2. When the “battery” light is on, means low battery. 3. Th e light turns to yellow during charging 4.
Page 7 2. Basic Operation 2.1 Keys Instruction Weighing data Hold Data hold Gross Gross weight Net weight Tare tare...
Page 8 Th e weighing data is stable Weight is zero Overload Underload Decimal Show the counting status TOTAL Go to accumulation mode Keys function Keys Key Name Key function 1. Work with “ZERO” TARE” “ON/OFF” key Print to perform many functions. 2.
Page 9 Power on & off Press 2 seconds to power on or power off , aft er power on the indicator show ”000000-999999”. 2.3 Zero operation 1. Initial zero setting: When power on the indicator, if the weight on the scale is within the initial zero tolerance, indicator show zero automatically.
Page 10 EXIT the accumulation function When the indicator show the last 4 digits, Press hold it, the indicator shows “clrn”, it means don’t clear the total Weight, Press “PRINT” key to exit it; if you want to clear total weight, Press “ZERO”...
Page 11 3. Calibration and Parameter setting 3.1 Enter setting Th ere have two methods to enter the setting menu: 1. When the switch “ CAL” is off , press the “PRINT” hold it and then press” HOLD” enter C08-39 setting. 2. Take out the sealing screw on the back of indicator, then press “CAL”, at the “SPAN”...
Page 12 3.2 Step of calibration operation: According to the second method which can enter setting menu, C01-C39 Step Method of Display Remark Operation Aft er you enter calibration mode, it [C01 ] displays [C01 ] press Weight unit [C01 1] option: 1= kg 2= lb press [C02 ]...
Page 13 [0100.00] For example: the weights is 80kg As bellows: [0080.00] Input the 0080.00, count down , then press [CAL 9] indicator shows 0080.00 , calibration press …… is over. [0080.00] If you want to set application [CAL function parameter. End] Press “PRINT”...
Page 14 Option: 0= Close hold function 1= Peak Hold / 2= Data Hold Instruction: Hold Function Hold Mode Peak-hold: it shows the max. data, mainly application for materials testing, such as tension and pulling force. Date-hold: it shows current weight value. Mainly application for animal weighing.
Page 15 Option: 0= Close manually zero setting 1=±1% max capacity 2=±2% max capacity Manually Zero Range 4=±4% max capacity 10=±10% max capacity 20=±20% max capacity 100=±100% max capacity Zero Range Option: 0= No initial zero setting 1=±1% max capacity 2=±1% max capacity Initial Zero Range 5=±1% max capacity 10=±1% max capacity...
Page 16 Option: 0= quick Standstill Time 1= medium 2= slow Option: Standstill Time 1= 1d 2= 2d Standstill Range 5= 5d 10= 10d d= Division Option: Dynamic Filter 0= Close dynamic fi lter Instruction: Dynamic 1=1 Digital fi lter strength fi lter is collecting 2=2 Digital fi lter strength the data fi lter before 3=3 Digital fi lter strength...
Page 17 Wireless C35=0~99 signal Comm. Gravity of C36=9.7000~9.9999 Calibration Location Gravity of Des- C37=9.7000~9.9999 tination Version No. Preserved Menu 4. Maintenance 4.1 Regular error and solution ERROR REASON SOLUTION 1. Overload 1. Reduce the weight 2. Wrong connection 2. Check load cell connection UUUUUU with load cell 3.
Page 18 Th e calibration weights During calibration , the Minimum is 10% of Max. cap. Rec- ERR2 weights is below than ommend 60%-80% of Max. Cap. Min. required weights 1. Check the connection During calibration, the 2. Check load cell for problems ERR3 input signal is negative 3.
Page 19 Th e Manufacturer warrants each product to be free from defects in materials and workmanship, and to conform to its published product specifi c cautions under normal use and service for the period of one year commencing from the date of purchase. Th e foregoing warranty is extended only to the fi rst purchaser and applies only to product failures due to defective materials and/or workmanship.
