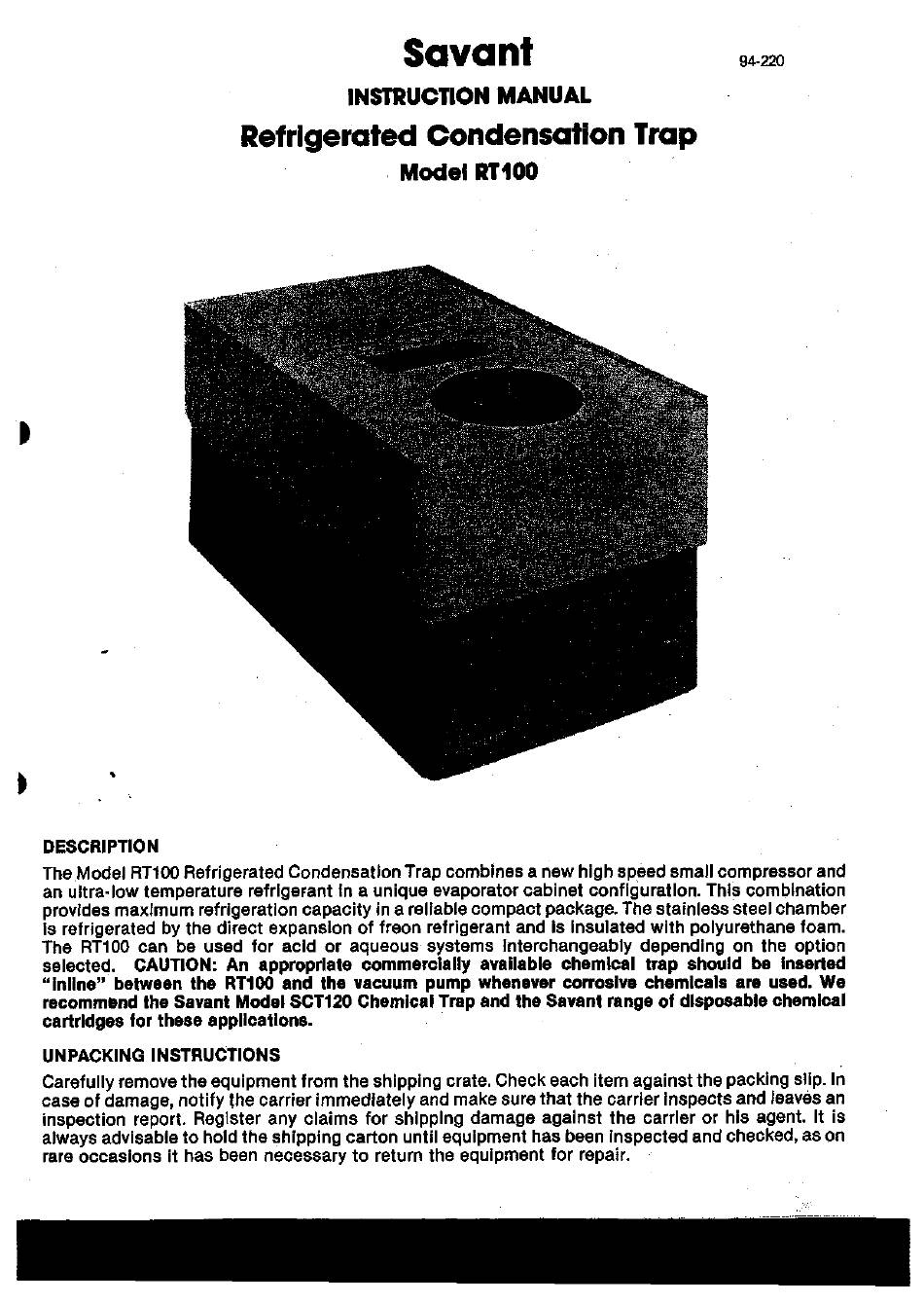

Savant RT100 Instruction Manual

Savant
INSTRUCTION MANUAL
Refrigerated Condensation Trap
Model RT1OO
94-220
DESCRIPTION
The Model RT100 Refrigerated Condensation Trap combines a new high speed small compressor and
an ultra-low temperature refrigerant in a unique evaporator cabinet configuration. This combination
provides maximum refrigeration capacity in a reliable compact package. The stainless steel chamber
is refrigerated by the direct expansion of freon refrigerant and is insulated with polyurethane foam.
The RT100 can be used for acid or aqueous systems interchangeably depending on the option
selected. CAUTION: An appropriate commercially available chemical trap should be inserted
"inline" between the RT100 and the vacuum pump whenever corrosive chemicals are used. We
recommend the Savant Model SCT120 Chemical Trap and the Savant range of disposable chemical
cartridges for these applications.
UNPACKING INSTRUCTIONS
Carefully remove the equipment from the shipping crate. Check each item against the packing slip. In
case of damage, notify the carrier immediately and make sure that the carrier inspects and leaves an
inspection report. Register any claims for shipping damage against the carrier or his agent. It is
always advisable to hold the shipping carton until equipment has been inspected and checked, as on
rare occasions it has been necessary to return the equipment for repair.
