ZyXEL Communications V-250 User Manual

Dect gap phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V-250
DECT GAP Phone
User's Guide
Version 1.01
Edition 1
4/2007

Advertisement

Table of Contents
loading

Summary of Contents for ZyXEL Communications V-250

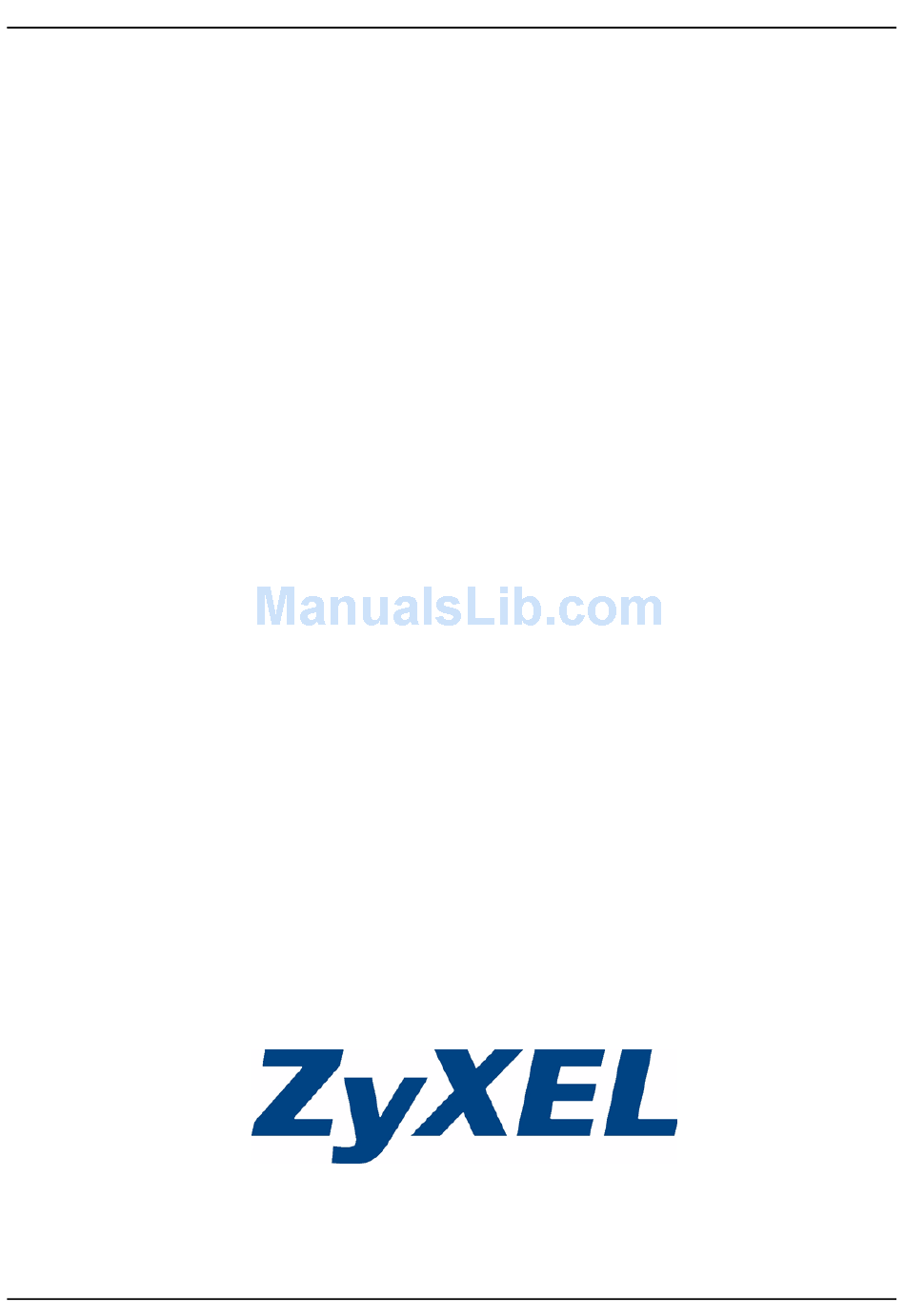

  • Page 1 V-250 DECT GAP Phone User’s Guide Version 1.01 Edition 1 4/2007...

  • Page 2: Lcd Display

    250 by the base station. Use it for internal calls. Handset Name This is configurable. Date day/month/year format V-250 User’s Guide Volume Level I - low volume II - medium volume III - high volume Right Softkey Function of the right softkey. Here,...
  • Page 3 2 Quick Reference - Physical Parts Left Softkey Navigator- left Off-hook Dialing Numbers Speaker Phone Microphone Charge Terminals V-250 User’s Guide HANDSET BASE Earpiece Navigator-up Right Softkey Navigator- right On-hook Enter Navigator-down Internal Call / Flash Charge...
  • Page 4 3 Quick Reference - Basic Operations • Make a call Lift the V-250 from the charger and press Off-hook (8). Dial a number. To end the call, place the V-250 on the charger or press On-hook (9). • Receive a call When the V-250 rings, lift the handset or press Off-hook (8).

  • Page 5: Install And Charge The Batteries

    4 Connect the other end of the power cable to a wall socket. 5 Place the handset in the base station for charging. 4.1 Important Notes About Charging the Batteries Note: Make sure to charge the batteries for 16 hours before using your V-250 for the first time. V-250 User’s Guide...

  • Page 6: Basic Setup And Operations

    5 Basic Setup and Operations You must have a DECT GAP base station already set up with a phone connection (VoIP, PSTN or ISDN) to make external calls (A). You can also use the V-250 to make internal calls (B). V-250 User’s Guide...
  • Page 7 (1-4). You can register with up to 4 base stations. Press the Right Softkey to select OK and enter the screen to enter the base station PIN (password). V-250 User’s Guide PHONE SETTING HS NAME PABX DIRECT CALL WALLPAPER...

  • Page 8: Last Number Redial

    • VOIP OFF/ON - This indicates whether the base station this phone is registered with has a VoIP connection. 5.2 Last Number Redial The V-250 stores the last 10 numbers you dialed in memory. V-250 User’s Guide PHONE SETTING PIN : **** LONG PRESS BASE...

  • Page 9: Adjust The Volume

    2 Dial one of the recently dialed numbers by pressing the Off-hook button when the phone number is selected. Note: The V-250 stores phone numbers up to 24 digits long (longer phone numbers will be truncated). You can clear all of the recently dialed phone numbers.

  • Page 10: Flash Function

    In our example the volume is at high level ( 5.5 Flash Function Press the R/INT button on the V-250 to put an existing call on hold and pick up a second call. Press the R/INT button again to switch back to the original call.
  • Page 11 See Ring Type Menu section on page 5.7 Call All Phones You can use the V-250 to call all handsets registered with the base station as well as all the analog phones connected to the phone ports of the base station.

  • Page 12: Menu Features

    2 Phone Setting - Use this menu to set the time and date on the V-250, register to a base station, change the dial mode and display and enable other features. 3 Call History - Use this menu to view up to 10 of the most recent received and/or missed calls to the V-250.

  • Page 13: Phone Book Menu

    (do the same on any other screen with multiple choices). The phone book allows you to add new entries and edit or delete existing entries. V-250 User’s Guide PHONE BOOK Adam Barbara John Doe...

  • Page 14: Phone Setting Menu

    Turn the alarm on and off and specify the type of melody to play. Caller ID Activate or deactivate the caller ID feature. You must subscribe to this feature from your service provider. V-250 User’s Guide PHONE SETTING ALARM CALLER ID SET KEYTONE...
  • Page 15 Baby Mode is on, the handset automatically picks up an internal call and the caller can listen. Use this function to monitor a baby room. Leave the V-250 in the baby room. When you call the V-250 from another handset registered to the same base station, the V-250 picks up automatically.
  • Page 16 Activate and configure the Direct Call feature on the V- 250. You can program a phone number which is dialed automatically when any key is pressed on the V-250. Note: You can only use the direct call feature Press the On-hook button to end a direct call. Press and hold the On-hook button for 2 seconds to turn the Direct Call mode off.

  • Page 17: Call History Menu

    FUNCTION DESCRIPTION Handset Use this to view the V-250’s firmware version number as Version well as the RFPI number. The RFPI number is a factory assigned number (unique to each handset) used to identify the V-250. Default Use this to reset the phone settings to the factory defaults.
  • Page 18 1 Press the Right Softkey button. 2 Use the Navigator-up/down/ right/left buttons to select the icon. Press the Right Softkey button and the Ring Type menu opens. V-250 User’s Guide CALL HISTORY Add to phonebook Delete BACK NEXT RING TYPE...

  • Page 19: Specifications

    Table 1 Device Specifications Feature Handset Batteries Power Supply Operating Requirements V-250 User’s Guide Specification 2 x AAA Rechargeable NiMH batteries (1.2V, 750 mA) 6 Volt DC @ 300 mA Operating Temperature: 0 to 50 Storage Temperature: -30 to 60...

  • Page 20: Safety Warnings

    • Make sure you insert the batteries with correct polarities. Battery Safety Precautions The V-250 uses two AAA batteries. Please read and follow these safety precautions when using and handling the batteries: • CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

  • Page 21: Related Documentation

    ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser. To obtain the services of this warranty, contact ZyXEL's Service Center for your V-250 User’s Guide for product news, firmware,...

  • Page 22: Customer Support

    • Telephone: +886-3-578-3942 • Fax: +886-3-578-2439 • Web Site: www.zyxel.com, www.europe.zyxel.com • FTP Site: ftp.zyxel.com, ftp.europe.zyxel.com • Regular Mail: ZyXEL Communications Corp., 6 Innovation Road II, Science Park, Hsinchu 300, Taiwan Costa Rica • Support E-mail: soporte@zyxel.co.cr • Sales E-mail: sales@zyxel.co.cr •...
  • Page 23 Czech Republic • E-mail: info@cz.zyxel.com • Telephone: +420-241-091-350 • Fax: +420-241-091-359 • Web Site: www.zyxel.cz • Regular Mail: ZyXEL Communications, Czech s.r.o., Modranská 621, 143 01 Praha 4 - Modrany, Ceská Republika Denmark • Support E-mail: support@zyxel.dk • Sales E-mail: sales@zyxel.dk •...
  • Page 24 • Sales E-mail: sales@zyxel.com • Telephone: +1-800-255-4101, +1-714-632-0882 • Fax: +1-714-632-0858 • Web Site: www.us.zyxel.com • FTP Site: ftp.us.zyxel.com • Regular Mail: ZyXEL Communications Inc., 1130 N. Miller St., Anaheim, CA 92806-2001, U.S.A. Norway • Support E-mail: support@zyxel.no • Sales E-mail: sales@zyxel.no •...
  • Page 25 • Support E-mail: support@zyxel.es • Sales E-mail: sales@zyxel.es • Telephone: +34-902-195-420 • Fax: +34-913-005-345 • Web Site: www.zyxel.es • Regular Mail: ZyXEL Communications, Arte, 21 5ª planta, 28033 Madrid, Spain Sweden • Support E-mail: support@zyxel.se • Sales E-mail: sales@zyxel.se • Telephone: +46-31-744-7700 •...
  • Page 26 Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to techwriters@zyxel.com.tw or send regular mail to The Technical Writing Team, ZyXEL Communications Corp., 6 Inno- vation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you.
