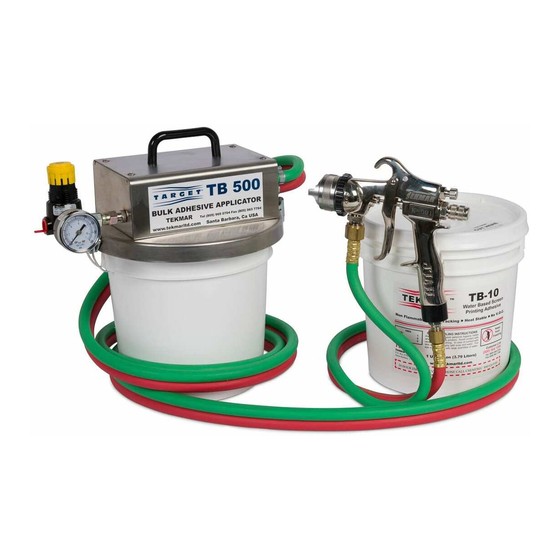

- Page 1 SYSTEM TB 500 BULK ADHESIVE APPLICATOR INSTRUCTION FOR SET UP OPERATION...
- Page 2 The biggest single cause of premature failure of this system results from insufficient cleaning, so please pay extra attention to this section. As with all TARGET or TEKMAR products, should you experience any difficulties with this product please call our customer service line 800/564-1096 AIR HOOK UP The air requirements for the SYSTEM TB 1000 are very minimal.
-
Page 3: Initial Set Up And Adjustment
INITIAL SET UP AND ADJUSTMENT The success of the TEKBOND adhesive system is reliant on the use of TB10 water base adhesives. substitutions. may result in inferior opera- tion and may invalidate the warranty Getting Ready 3.0 Prepare the bucket of TB 10 by cutting the opening where shown on the lid 3.1 Slide the TB500 onto the bucket and attach the latches to the sockets on the side of the bucket. - Page 4 3.8 The smaller silver knob on the gun is used to adjust the spray pattern. With the knob all the way in a circular spray pattern is achieved (see fig a). By slowly rotating it counter clockwise a flatter fan type spray pattern can be achieved (see fig b). The flat fan spray pattern is more suitable for the application of adhesive.
-
Page 5: Operation
OPERATION The success of the TARGET SYSTEM TB 500 and TEKBOND TB-10 is dependent upon the minimal use of the adhesive. To maximize adhesive usage it is essential to follow the operating procedures outlined below. 4.0 Initially when starting with clean pallets it is necessary to apply a “build”... -
Page 6: Care And Maintenance
CARE AND MAINTENANCE Cleaning The biggest single cause for premature failure of the TB500 is as a result of insufficient or non cleaning of the pump and spray gun. If the following steps are taken then the unit will provide years of trouble free maintenance If the unit is to be inactive for any period of time (2 or more days) or at least once a month the unit should be flushed in the following manner. -
Page 7: Maintenance
Maintenance: 6.1 General maintenance guides include regular flushing of the pump and keeping the air cap holes clean. 6.2 Needle wear is not unusual. To identify this problem, look for wear of the tip and wear between the needle and the point of contact with the packing. - Page 8 PARTS LIST Item Part Description Item Part Description 591-01 Retaining Ring 591-21 Fluid Screw 591-02 Air Cap 591-22 “O” Ring 591-03 Fluid Nozzle 591-23 Spring 591-04 Gasket 591-24 Bushing 591-05 Air Ring 591-25 Adjusting Screw 591-06 Lock Screw 591-26 Bushing 591-07 Side Port Contl.
- Page 9 This page left blank intentionally...
- Page 10 This page left blank intentionally...
-
Page 11: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY Technical Marketing, Ltd. makes every effort to ensure that its products meet high quality and durability standards, and warrants to the original purchaser that this product meets high quality and durability standards, and warrants to the original purchaser, for a period of 1 year from date of purchase, that this product is free from defects in materials and workman- ship, that all components of this adhesive system are free from defects in materials and workmanship. - Page 12 CUSTOMER LINE: 800/564-1096 • PHONE: 805/965-0704 FAX: 805/963-7794 www.tekmarltd.com SHIPPING MAILING 927 INDIO MUERTO ST. P.O. BOX 4700 SANTA BARBARA, CA 93103 SANTA BARBARA, CA 93140...
