Lichtanlage für Anhänger/Auflieger
Trailer Lighting System
Technische Daten / Specifications
Akkuspannung:
Operating voltage: 2s ... 3s Li-Ion/Lipo
Schaltausgänge:
Switching Outputs: 6 x 700mA max
Servos:
Servo-Versorgung: 5V/1A
BEC:
Datenübertragung: drahtlos per Infrarot
Data Link:
Stromaufnahme:
Quiescent Current: approx. 20mA
Abmessungen (mm):
Dimensions:
AMO
7.2 ... 12V NiCd/NiMH
6 x 700mA max.
kurzschlussfest, überlastsicher
short-circiut & overload protected
2 x prop, 1 oder 2 geschaltet
2 x prop, 1 or 2 min/max
5V@1A
wireless via IR
ca. 20mA
70 x 30 x 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMO and is the answer not in the manual?

Questions and answers

Summary of Contents for Servonaut AMO

  • Page 1 Lichtanlage für Anhänger/Auflieger Trailer Lighting System Technische Daten / Specifications Akkuspannung: 7.2 ... 12V NiCd/NiMH Operating voltage: 2s ... 3s Li-Ion/Lipo Schaltausgänge: 6 x 700mA max. kurzschlussfest, überlastsicher Switching Outputs: 6 x 700mA max short-circiut & overload protected Servos: 2 x prop, 1 oder 2 geschaltet 2 x prop, 1 or 2 min/max Servo-Versorgung: 5V/1A BEC:...
  • Page 2 Lieferumfang Included · AMO-Modul AMO module · IR-Sensor IR sensor · Schalter mit Kabel Switch · Anleitung Manual...
  • Page 3: Table Of Contents

    IR-Verbindung…………………… 3 IR Link……………………………… Servos, motorbetriebene Stützen Servos, Motorized Support Legs und andere Sonderfunktionen…. 4 and other Extra Functions………. AMO mit Servonaut K-Regler….. 5 AMO with Servonaut K-controllers AMO mit M24……………………. 5 AMO with Servonaut M24……….. Steckbrücken, Einstellungen……. 6 Jumper Settings………………….

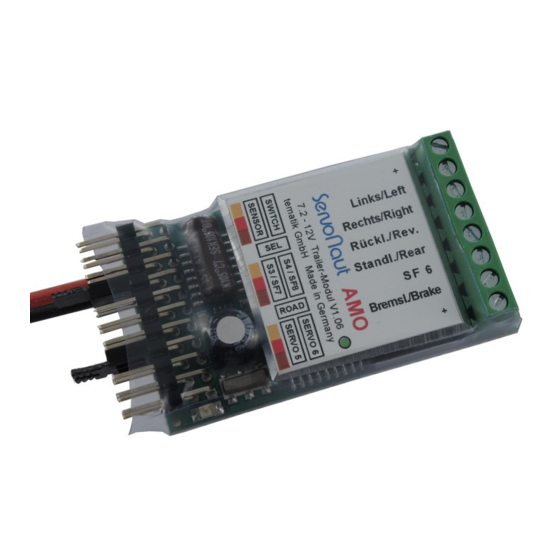

  • Page 4 AMO Anhänger-Modul AMO Trailer Module Das AMO ist die Lichtanlage von ServoNaut The AMO is the ServoNaut lighting system for für Anhänger bzw. Auflieger. Auf der Seite trailers or semi-trailers. It has to be com- der Zugmaschine wird zusätzlich ein AIR4 bined with an AIR4 or AIRU transmitter in oder AIRU Infrarotsender benötigt.
  • Page 5: Anschluss Des Akkus

    Akkus. Connecting the Lighting Verkabelung der Lichtanlage All light outputs of the AMO are connected via a screw terminal block with 8 slots. On the left Alle Licht- bzw. Schaltausgänge des AMO sind and right are connections for the common plus über eine 8polige Schraubklemmenleiste ge-...
  • Page 6: Ir-Verbindung

    Massekabel muss wie auch bei allen Servo- connectors of the AMO. You may extend the anschlüssen an dem AMO nach rechts gesteckt sensor cable by using a standard servo exten- werden.
  • Page 7: Servos, Motorbetriebene Stützen Und Andere Sonderfunktionen

    Sonderfunktionen and other Extra Functions Das AMO besitzt vier Servo-Ausgänge, von The AMO has four servo outputs, two of denen zwei als Schaltfunktion (Servo 3+4) them only with full swing function (servos und zwei als Proportionalfunktion (Servo 5+6) 3&4) and two of them with normal propor-...
  • Page 8: Amo Mit Servonaut K-Regler

    AMO mit Servonaut M24 The five lighting outputs for the rear lights of Die fünf Beleuchtungsausgänge des Servo- the M24 are also available on the AMO. In naut M24 für die hinteren Lampen stehen addition, servo 4 for motorized auch am AMO zur Verfügung.
  • Page 9: Steckbrücken, Einstellungen

    Steckbrücken (Jumper) Jumper Es gibt am AMO zwei Steckbrücken, die die There are two jumpers. Their functions will be nachfolgend beschriebenen Funktionen haben. described as follows. · Steckbrücke ‚ROAD’: Jumper ‘ROAD’: Diese Brücke dient zur Auswahl des Roadtrain- This jumper Is used to select roadtrain opera- Betriebs.
  • Page 10: Jumper Settings

    Einstellungen Jumper Settings Servo 3 - ‚ROAD’ gesteckt Servo 3 - ‘ROAD’ installed Licht aus SF7 - ‚SEL’ gest. Lights off SF7 - ‘SEL’ inst. Servo 3 - ‚ROAD’ gesteckt Servo 3 - ‘ROAD’ installed Licht aus SF8 - ‚SEL’ offen Lights off SF8 - ‘SEL’...
  • Page 11: Zeit-Programmierung

    2a. Steckbrücke ´SEL´ umstecken (siehe 2a. Replug the jumper ´SEL´(see photo) Foto) 2b. Remove the jumper ´ROAD` 2b. Steckbrücke ´ROAD´ entfernen! 3. Turn on the AMO 3. AMO einschalten 4. Carry out programming 4. Programmierung vornehmen 5. Turn off the AMO 5.
  • Page 12: Anschluss-Übersicht

    Gemeinsames ‚+’ and Servo 5 (lower) Common ‘+’ Das Typenschild ist gleichzeitig auch The AMO type plate is also used as a heat Kühlkörper. Das AMO wird im Betrieb sink. The module could become warm warm (besonders bei 12V) und braucht (especially when supplied from 12V) and ggf.
  • Page 13 Speed and situation dependent sound Turbolader AIR4 AIR4 IR transmitter for Servonaut M and K speed controllers with integrated light · IR-Sender für Servonaut M- und K- Reg- sets ler mit integrierter Lichtanlage AIRU AIRU Universal IR transmitter for S22/ML4 and ·...
  • Page 14 Weitere Produkte von Servonaut: Related Servonaut Products: TM72 TM72 · Robuster langsamlaufender Motor mit Low speed high torque motor, optimized optimierter Wicklung für den Truckmo- for truck models scale 1:14 dellbau im 540er Format Also available as gearbox drive: · Auch mit Getriebe als Unterflur-Antrieb...
  • Page 15 Notizen: Notes:...
  • Page 16 Help us to protect the environment. Please do not dispose electrical and elec- tronic equipment in domestic household waste. tematik GmbH - Servonaut WEEE-Reg.-Nr. DE 76523124 tematik GmbH Fon: +49 (0) 4103 80 89 89 - 0...
