Introduction
AVerCaster Pro series products are audio/video encoder/transcoder servers especially
designed and developed by AVerMedia Technologies, Inc. to welcome the unstoppable
trend in Internet/digital TV and broadcasting applications. AVerCaster Pro series products
provide comprehensive all-in-one servers to demands in audio/video encoder/transcoder and
streaming services. AVerCaster Pro series products support not only real-time video
streaming but also multi-displa y output, bitrate and resolution configurations, and other
encoding profiles, letting administrators to complete configurations from input signals to
streaming tasks quickly and transmitted high quality videos to various receiving terminals such
as TV sets, desktop PCs or mobile devices. Administrators can easily integrate AVerCaster
Pro series products into currently running IPTV/OTT equipments and working processes.
AVerCaster Pro supports various and multiple input sources, multiple encoding/transcoding
formats, and multiple streaming tasks of single input source too. Administrators are free to
combine or create freely based on different needs easily. Moreover, AVerCaster Pro complies
with 3GPP rules and regulations, expanding its services to a wide range of mobile device
users in its service area. Reliable, high compatibility and expandability, AVerCaster Pro solves
the problems and fits into current environment infrastructures.
English-1
Advertisement
Summary of Contents for Avermedia AVerCaster Pro Series
- Page 1 AVerCaster Pro series products are audio/video encoder/transcoder servers especially designed and developed by AVerMedia Technologies, Inc. to welcome the unstoppable trend in Internet/digital TV and broadcasting applications. AVerCaster Pro series products provide comprehensive all-in-one servers to demands in audio/video encoder/transcoder and streaming services.
-
Page 2: Parts And Names

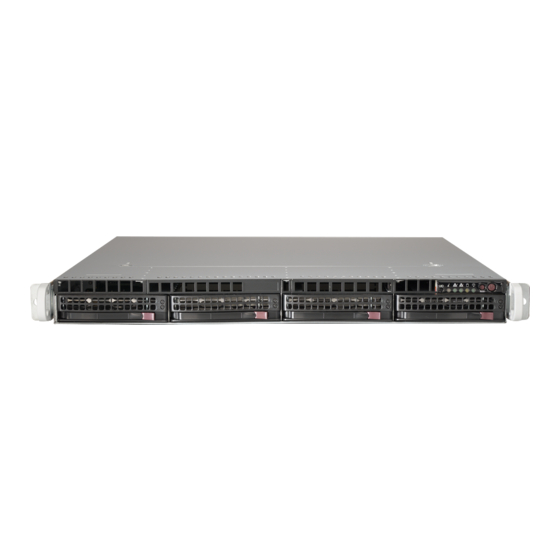

Parts and Names: Front View – RS7130 / RS7165 / RS7170 / RS7185 / RS7190 Description Description Unit Identifier Button (UID) Power LED Universal Information LED Reset Button LAN 1 LED Power Button LAN 2 LED Hard Drive Signal Device Activity LED Hard Drive Failure Universal Information LED Indications Indication... - Page 3 Back View – RS7130 / 7165 / RS7170 / RS7185 / RS7190 Part Name Part Name Redundant Power Supply USB 3.0 x 2 COM 1 Port (for RS232 Controller) LAN 1 & LAN 2 Ports USB 2.0 x 2 VGA Port IPMI PCI-E Expansion Slots* *Interface varies depending on different RS models.
- Page 4 RS7185 4 Ch HD-SDI/SD-SDI or 2 Ch 3G-SDI RS7190 4 Ch 3G-SDI/HD-SDI/SD-SDI Power Supply Connection Input Source Connections – RS7165 HDMI / Component / S-Video / Composite English-4...
- Page 5 Input Source Connections – RS7170 HDMI Input Source Connections – RS7185 / RS7190 English-5...
- Page 6 HD-SDI / SD-SDI or 3G-SDI English-6...
- Page 7 Standard Operation Procedure for First Time Users 1. Log in to Windows with default account and password (admin/admin). 2. Open AVerCaster Streaming Service Management and log in with default account and password (admin/admin). Access from remote desktop: type the IP address of the AVerCaster Pro server in the URL field and click enter, and then enter the default account and password.
- Page 8 Specifications INPUT SIGNAL RS7165 HDMI / Component / S-Video / Composite RS7170 HDMI RS7185 / RS7190 3G-SDI / HD-SDI / SD-SDI IP OUTPUT Output Interface Dual Gb Ethernet Ports TS over TCP/ UDP/ UDP Multicast/ RTP/ RTP Multicast/ HTTP/ HTTP Live Transmission Protocol Streaming (HLS)/ FLV over HTTP/ RTMP Publish/ RTSP HLS PUSH/MPEG-DASH PUSH...
- Page 9 Copyright © 2016 by AVerMedia Technologies, Inc. All rights reserved. No part of this publication, in whole or in part, may be reproduced, transmitted, transcribed, altered or translated into any language in any form by any means without the written permission of AVerMedia Technologies, Inc.
- Page 10 Important Safety Instructions Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings. Do not use the apparatus on uneven or unstable surfaces. Do not use this apparatus in a wet environment or near water. Unplug the apparatus before cleaning. Clean only with a dry cloth. Use in a well ventilated environment.
- Page 11 FCC Class A User Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
