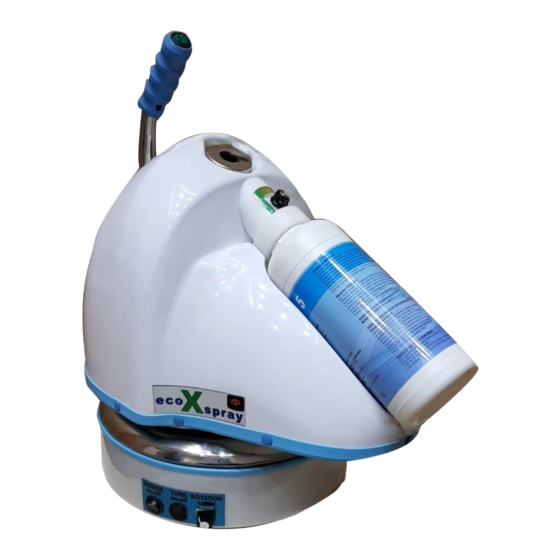

HSV BioSpray User Manual

HSV BioSpray User Manual

Disinfection machine

Advertisement

Quick Links

McElwaine Technical Services Limited
BioSpray User Manual
Prior to operating the unit, please read the
owner's manual carefully, and most
importantly, observe all safety rules. Follow
the maintenance guidelines to ensure the
long service life of your equipment. We will be
happy to assist you with any questions.
Tel:
+44 28 6772 4455
Email: info@mcelwainetechnical.com
EC declaration of conformity - The EC
declaration of conformity on a separate
document forms part of these operating
instructions.
Please contact us if this is
required.
Packaging and Disposal
Please keep the original packaging in order to
protect
the
equipment
damage in the event that you ever need to ship
it or transport it.
If the packaging materials are no longer
required, they should be disposed of properly in
accordance with applicable local regulations.
Corrugated board packaging materials may be
recycled or reused.
At the end of the equipment's service life,
please make sure that you dispose of it in
accordance with the official directives and
regulations that apply in your area.
The manufacturer reserves the right to change
the design and configuration of any product
without prior notice. For that reason, claims
cannot be accepted with reference to text and
illustrations in this manual.
against
transport
Page 1 of 10
Symbols
The following symbols are used in this manual
and on the product:
Always handle this power tool with
particular care
Thoroughly read these operating
instructions before undertaking any
maintenance, installation and cleaning
steps
Wear protective gloves when handling
and working with the equipment
A breathing mask should be worn when
using chemicals.
Pesticides can be flammable.
Labelling

Advertisement

loading
Need help?

Need help?

Do you have a question about the BioSpray and is the answer not in the manual?

Questions and answers

Summary of Contents for HSV BioSpray

  • Page 1 McElwaine Technical Services Limited BioSpray User Manual Symbols Prior to operating the unit, please read the owner’s manual carefully, and most The following symbols are used in this manual importantly, observe all safety rules. Follow and on the product: the maintenance guidelines to ensure the long service life of your equipment.
  • Page 2: Troubleshooting

    User Manual INDEX 1. Symbols 2. Workshop service, replacement parts and guarantee 2.1 Maintenance and Repair 2.2 Replacement Parts 2.3 Guarantee 3. Important Components 4. Safety regulations 4.1 Correct use / Application 4.2 General safety instructions 4.3 Protection of Environment 4.4 Operating Hints 5.
  • Page 3 2. Workshop service, replacement parts and guarantee 2.1. Maintenance and Repair Maintenance and repair of the Biospray fogger and safety-relevant assemblies require qualified, specialised training and a workshop equipped with special tools and test devices. We advise that any essential work is completed by the manufacturer. Please contact us with any requirements.
  • Page 4 User Manual 3. Important Components Area (m ) adjuster /ml) adjuster Suction pipe Page 4 of 10...
  • Page 5 User Manual Page 5 of 10...
  • Page 6 User Manual 4. Safety regulations 4.1. Correct use / Application The machine may only be used for the following areas of application: • The unit is suitable for applying disinfectant approved by national regulatory authorities. Follow instructions for use with extreme care. Within certain limits, the amount to be applied is subject to the position of the machine.
  • Page 7 User Manual When using spray medium that may be hazardous to health, wear respiratory protection. Any clothing soaked with chemical should be changed immediately. Always observe accident prevention regulations issued by local authorities or applicable to facilities where the unit will be in operation. 4.3.
  • Page 8: Starting Machine

    User Manual 6.STARTING MACHINE STARTING . 1. Discharge the cartridge by turning counter-clockwise Fill the cartridge with the liquid-based disinfectant and restore it to the screw-in fitting on the fogging unit. Plug the machine into a grounded power outlet. Calculate the volume of the target zone, and set the appropriate volume on the dial. Page 8 of 10...
  • Page 9 User Manual 4. Adjust the m /ml according to required disinfectant amount. 5. Turn on the Power and Rotation button and discharge the area. The unit will start automatically 30 seconds. 6. The machine will stop automatically after disinfection is complete based on the volume setting.
  • Page 10 User Manual 7.Technical Specifications • 6.1 kg Weight • 1,100 Watt 220 V AC 50-60 Hz Electric motor • Adjustable Rotation Speed • Assurance of homogeneous fogging distribution through 360° rotation drum • Dry and Wet mist projection by Venturi effect up to 15 meters radius from the appliance •...
