VENT FREE GAS LOG SET
Owner's Operation and Installation Manual
Also Design Certified As Vented Decorative Appliances
WARNING: If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage,
personal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
i v
i c
i n
y t
f o
h t
s i
r o
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
This is an unvented gas-fired heater. It uses
air (oxygen) from the room in which it is
installed. Provisions for adequate combus-
tion and ventilation air must be provided.
Refer to page 4, Air for Combustion and
Ventilation.

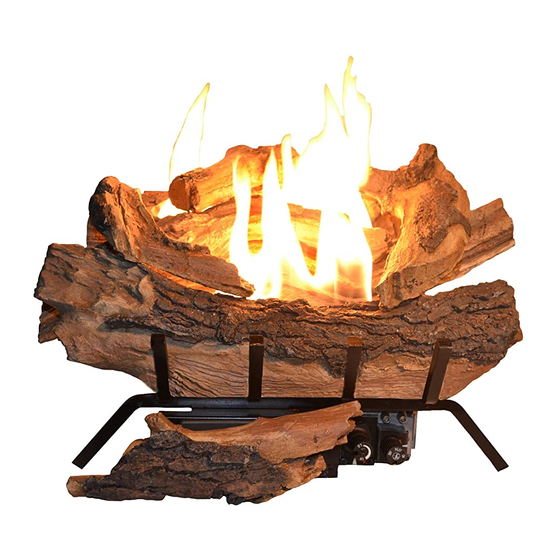

American Elm Models
AEVF18FANG AEVF24FANG
AEVF18FALP AEVF24FALP
Fully Automatic Remote
Control Included
a
ny other appliance.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
Thisappliancehasbeentestedandapproved
under ANS Z21.11.2–2012 Unvented Gas-
Fired Room Heaters.
WARNING: This appliance is for installation
only in a solid fuel burning masonry or UL
127 factory-built fireplace or listed ventless
firebox enclosure. It has been design certi-
fied for these installations. EXCEPTION: DO
NOT install this appliance in a factory-built
fireplace that includes instruction stating it has
not been tested or should not be used with
unvented gas logs.
This appliance may be installed in an
aftermarket,* permanently located, manu-
factured (mobile) home, where not prohib-
ited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This app-
liance is not convertible for use with other
gases.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer
