FEATURES:
• In-line 2ch analogue audio delay with line-level volume control
• Supports 48 KHz/24 Bit sample rates
• Selectable audio delay from 50-1000ms:
- 0-500ms in steps of 50ms
- 500-1000ms in steps of 100ms
• Adjustable line level volume control from -75dB to 0dB
Panel Description
Connections:
USB Update port - Micro USB connector used for firmware upgrade
1
L/R analogue audio input – RCA L/R 2ch input
2
Power LED indicator - Lit when detecting unit is powered
3
Power port – Use supplied 5V/1A DC adaptor
4
Audio delay rotary dial - Rotate to adjust audio delay (see page 2 for delay settings)
5
L/R analogue audio output – RCA L/R 2ch output
6
Volume control rotary dial - Rotate to adjust volume level ('0' = Mute)
7
contact
support@blustream.co.uk / support@blustream.com.au
AD11AU
Quick Reference Guide
The Blustream AD11AU has been designed to help correct audio delays incurred
when separating audio and video signals in an AV system. The AD11AU can add a
delay of up to 1 second selectable in 15 increments and has a volume adjustment
of -75dB to 0dB.
1
2
3
4

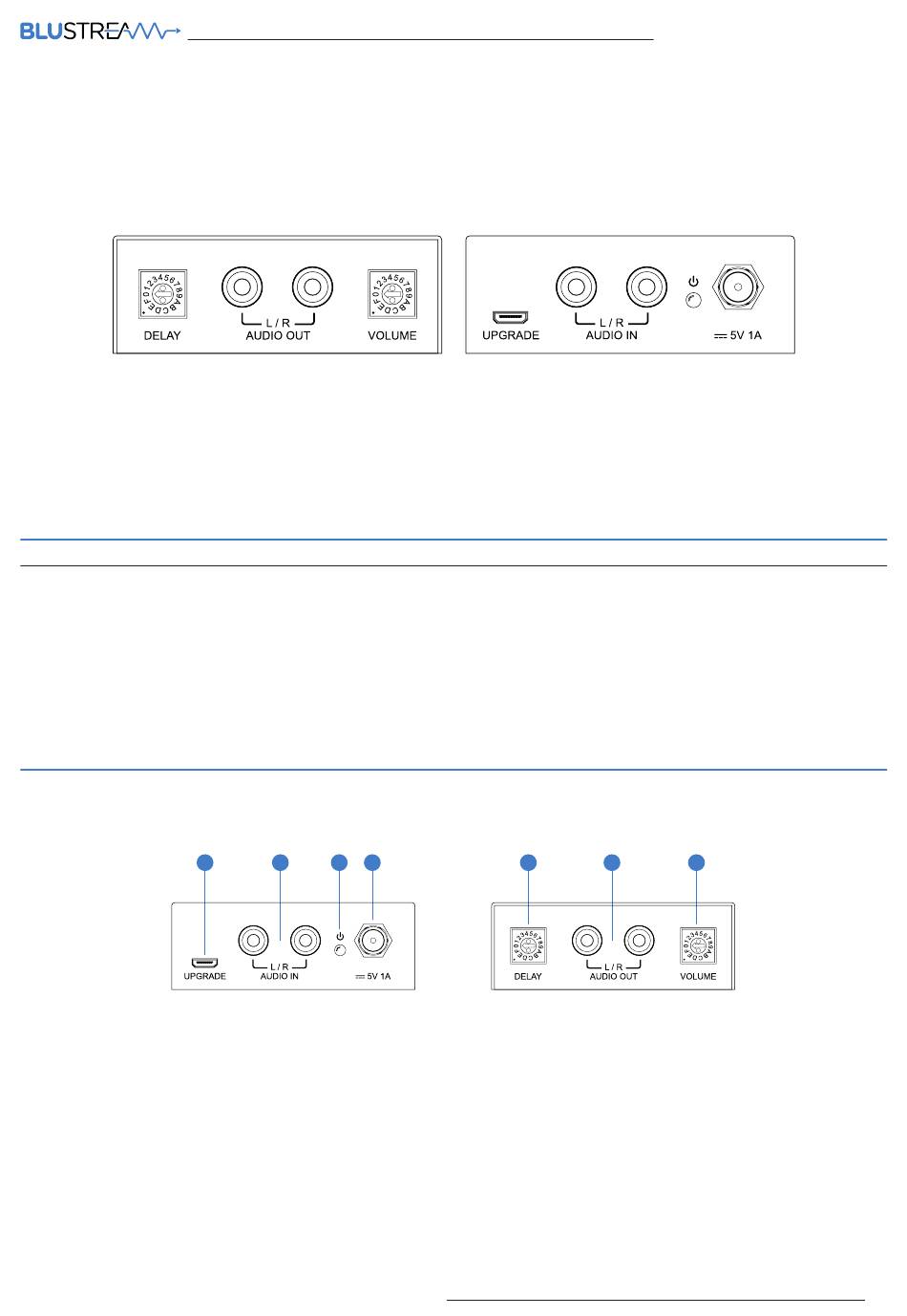

Rear Panel
AD11AU
5
6
7
Front Panel
QUICK REFERENCE GUIDE
01
