Summary of Contents for rotork LHS

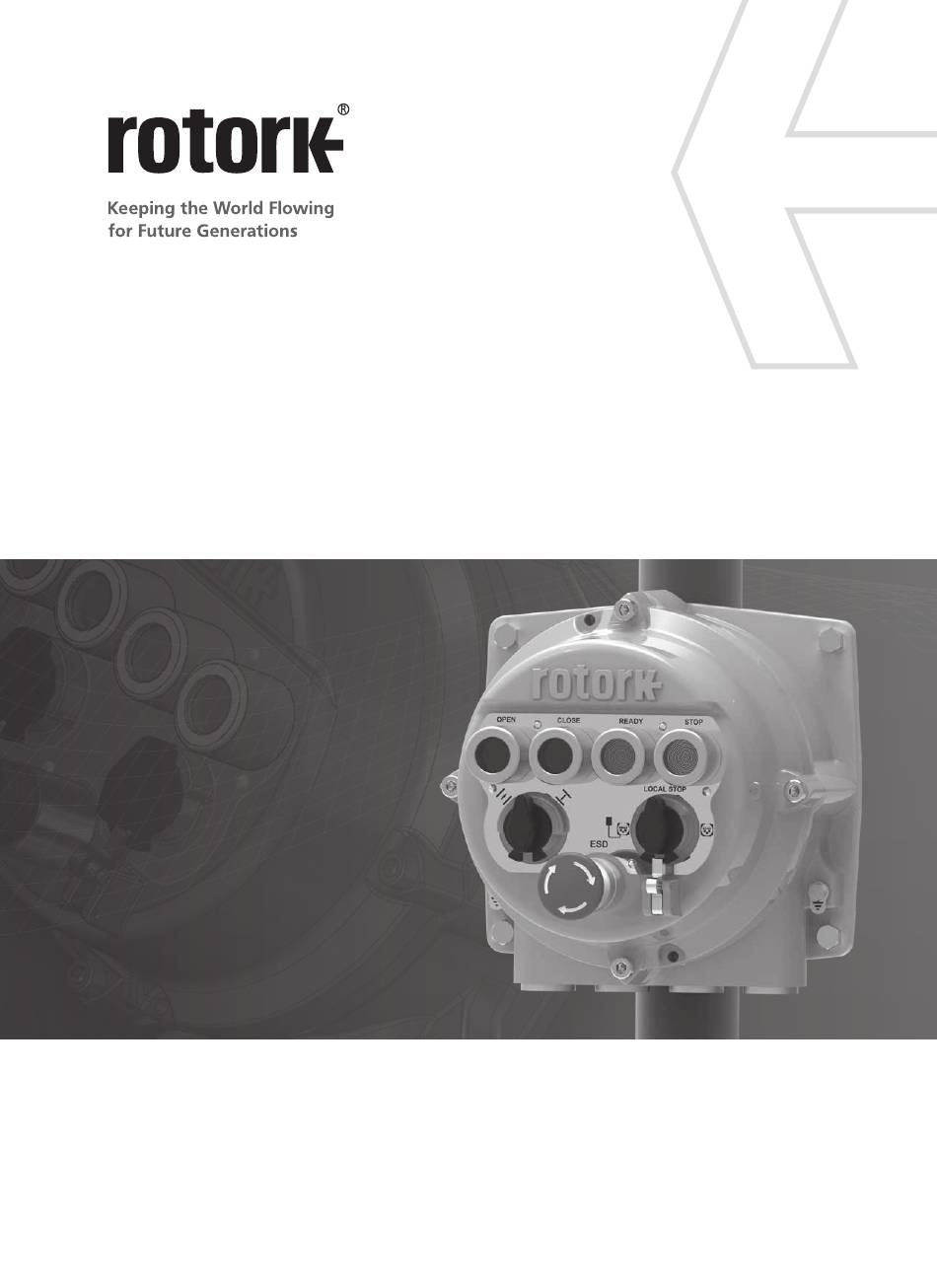

- Page 1 Local Hand Station Installation and Maintenance Instructions...
-
Page 2: Table Of Contents
Contents Section Page Introduction Mounting Settings Electrical Connections Approvals Environmental LHS Installation and Maintenance Instructions... -
Page 3: Introduction
Prepare the mounting holes using suitable tools. • Select suitable fixings by referring to the weight above for details of the LHS assembly. • Install the LHS unit to the structure. Tighten the fixings to ensure a secure hold. COVER COVE REMOVAL... -
Page 4: Settings
Local Remote Actuator* Parameters Specifications * Actuator remains in control unless the Remote mode is enabled. When Remote mode enabled, the LHS shares control despite the actuator set for Type of Cable Hook up Remote Control. Wire Gauge 22 AWG... - Page 5 Once the cable specification has been selected, cut to the appropriate length (leaving approx. 20 mm at each end for final termination). • Feed the cable to both the actuator and LHS terminal compartments and secure the glands to ensure watertight integrity is maintained. •...
-
Page 6: Approvals
25.00 ATEX / IEC / Indian Certified LHS Rotork has maintained more stringent gaps than those required by the standard. The user must refer to Rotork before SPECIAL CONDITIONS carrying out any repairs or refurbishment to the equipment. This Local Hand Station equipment includes some exterior Separately certified entry devices conforming to standards non-metallic paints including the protective coating. -
Page 7: Environmental
Environmental End user advice on disposal at end of life of the product. Subject Definition Remarks / examples Hazardous Recyclable EU Waste Disposal Code Printed circuit boards All Products 20 01 35 Electrical & Wire Use specialist Electronic recyclers Equipment LED Indicator All Products 17 04 10... - Page 8 As part of a process of on-going product development, Rotork reserves the right to amend and change specifications without prior notice. Published data may be subject to change. For the very latest version release, visit our website at www.rotork.com PUB169-001-00 The name Rotork is a registered trademark.
