HELIX Propeller Instrument PI-1 Short Instruction

HELIX-Carbon GmbH
Short Instruction PI-1

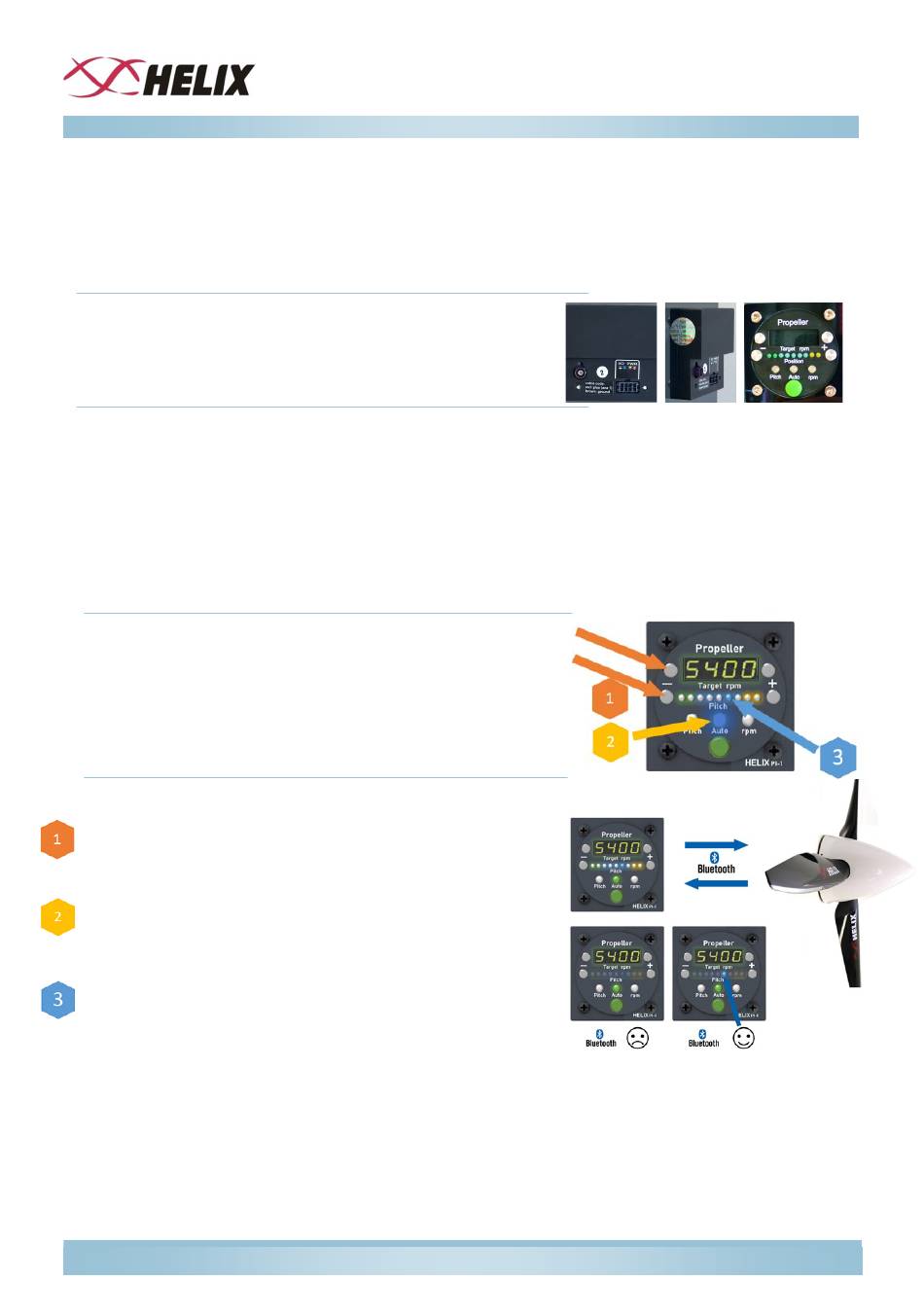

Initial start-up Propeller Instrument
Step 1: Connect the power supply 9V — 24V
"plus - red cable" and
•
The instrument starts with all LEDs on, and shows 1234 on the display
•
As soon as the propeller is running (or the control unit is powered by an external battery) the pro-
peller sends data in a rhythm of seconds and the propeller pitch position is displayed and every-
thing is ok
•
If the pitch position is not displayed, step 2 must be executed
Step 2: Establish Bluetooth connection
Press the two minus buttons
„– Target rpm" and „– Pitch Position"
The connection to the propeller can be established by
simultaneously pressing the two buttons
„– Target rpm" and „– Pitch Position"
The connection procedure is indicated by the "blue Auto
Led".
After the „blue Auto LED" goes out, a pitch position should
be indicated (one of a small LED must be on) - now the
connection is established.
Otherwise the procedure must be repeated. In an environ-
ment with many Bluetooth transmitters (trade fair or office environment) it is not unusual to
pair several times until the connection is established.
Once the connection is established, it is never lost again.
„ground - brown cable"
