Using the Parkwood Instruments KXer-Single Paddle

Introduction -

The popularity of the Elecraft KX-1

design of keyer paddles designed specifically to fit this potent little rig. The

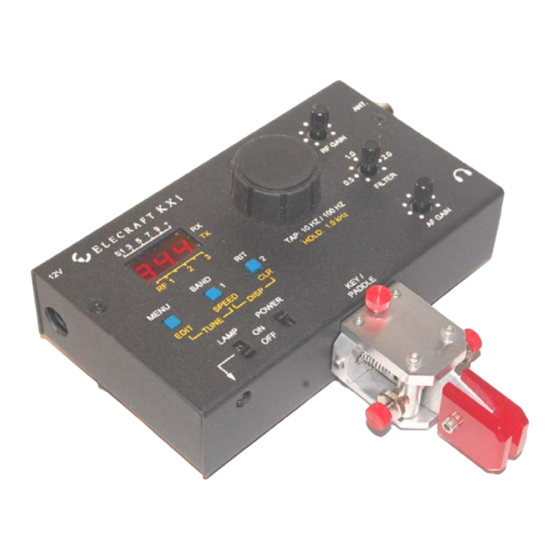

Parkwood KXer-Single is a non-iambic plug-in paddle that fits onto the KX-1

without any modification to the rig. It gives the portable operator a tiny paddle

with the feel of a full-sized one. For operation separate from the KX-1, or for

use with other rigs, there is an optional compact brass base. An iambic

version, the KXer, is also available.

Attachment to the KX-1 –

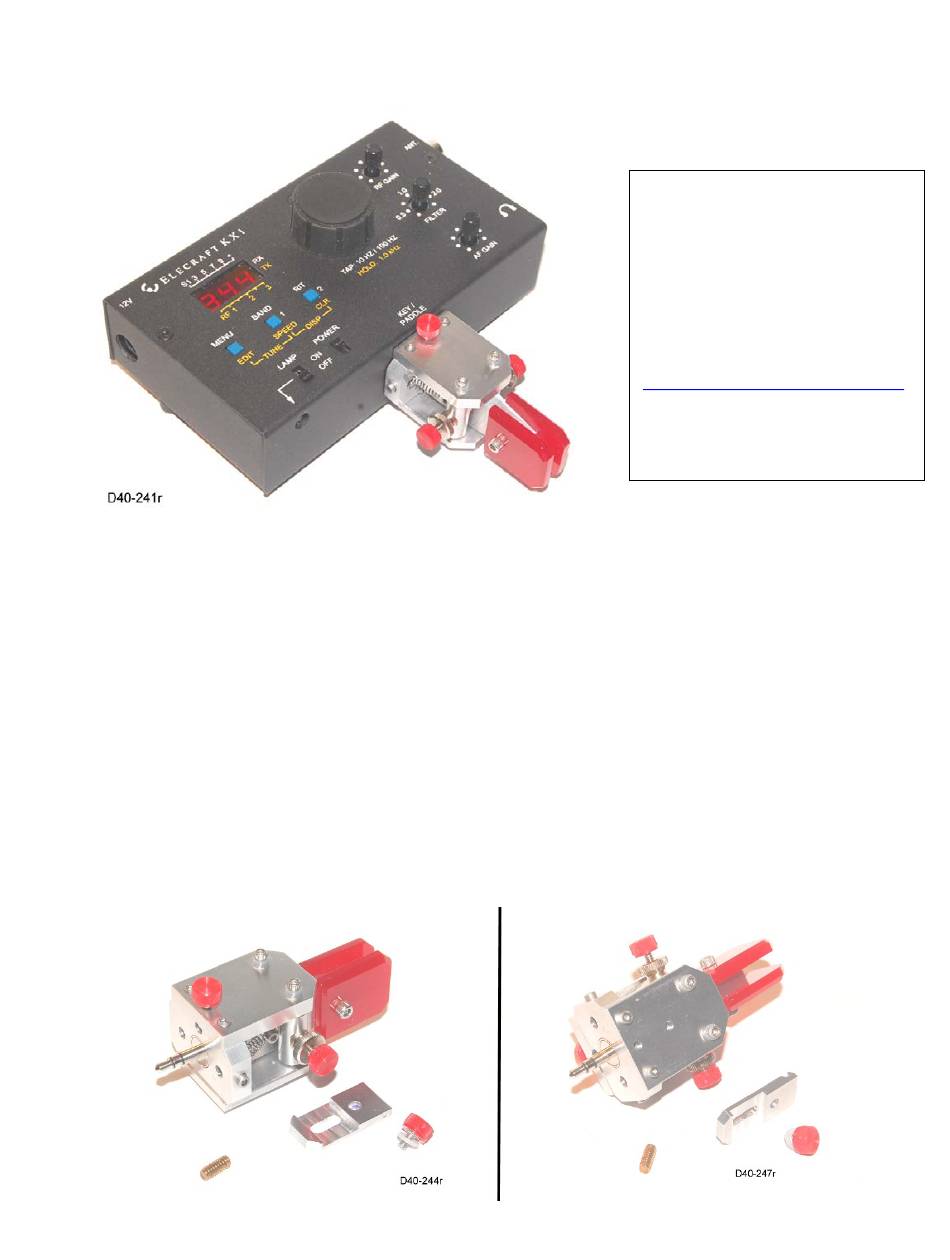

The parts of the clamping mechanism are shown below. They consist

KXer-Single Manual 4

11/4/2008
