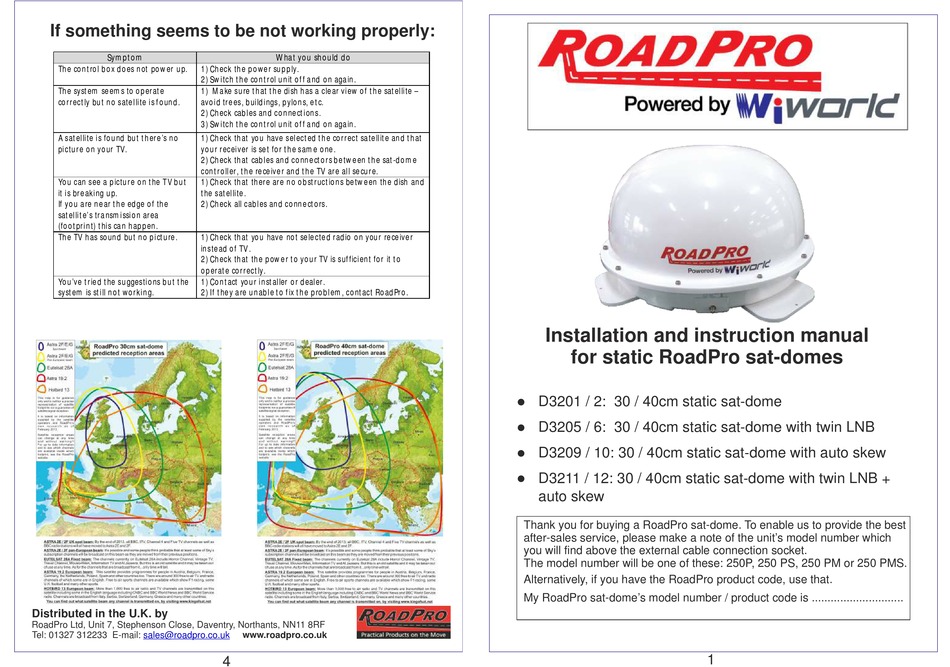

Roadpro D3201 Installation And Instruction Manual

If something seems to be not working properly:

Symptom
The control box does not power up. 1) Check the power supply.
2) Switch the control unit off and on again.
The system seems to operate 1) Make sure that the dish has a clear view of the satellite –
correctly but no satellite is found. avoid trees, buildings, pylons, etc.
2) Check cables and connections.
3) Switch the control unit off and on again.
A satellite is found but there's no 1) Check that you have selected the correct satellite and that
picture on your TV. your receiver is set for the same one.
2) Check that cables and connectors between the sat-dome
controller, the receiver and the TV are all secure.
You can see a picture on the TV but 1) Check that there are no obstructions between the dish and
it is breaking up. the satellite.
If you are near the edge of the 2) Check all cables and connectors.
satellite's transmission area
(footprint) this can happen.
The TV has sound but no picture. 1) Check that you have not selected radio on your receiver
instead of TV.
2) Check that the power to your TV is sufficient for it to
operate correctly.
You've tried the suggestions but the 1) Contact your installer or dealer.
system is still not working. 2) If they are unable to fix the problem, contact RoadPro.
Distributed in the U.K. by
RoadPro Ltd, Unit 7, Stephenson Close, Daventry, Northants, NN11 8RF
Tel: 01327 312233 E-mail: sales@roadpro.co.uk
What you should do
www.roadpro.co.uk
4

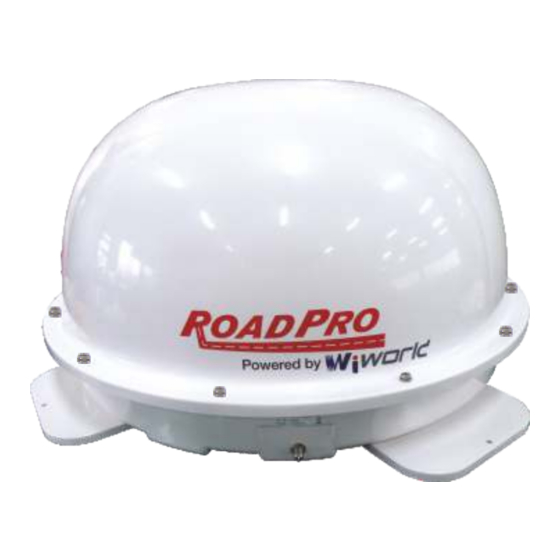

Installation and instruction manual
for static RoadPro sat-domes
Ÿ
D3201 / 2: 30 / 40cm static sat-dome
Ÿ
D3205 / 6: 30 / 40cm static sat-dome with twin LNB
Ÿ
D3209 / 10: 30 / 40cm static sat-dome with auto skew
Ÿ
D3211 / 12: 30 / 40cm static sat-dome with twin LNB +
auto skew
Thank you for buying a RoadPro sat-dome. To enable us to provide the best
after-sales service, please make a note of the unit's model number which
you will find above the external cable connection socket.
The model number will be one of these: 250P, 250 PS, 250 PM or 250 PMS.
Alternatively, if you have the RoadPro product code, use that.
My RoadPro sat-dome's model number / product code is .............................
1
