Ameristar TransPornt II Instructions Manual

Ornamental cantilever gate

Advertisement

Quick Links

*NOTICE: Ornamental Cantilever Gates are supplied with rolls of 2" mesh safety screening in sufficient quanti-
ties to cover the entire gate (including overhang) and an equal portion of fence parallel to the gate in the open
position up to a height of over 6 feet from ground elevation. This screening must be included when the TransPort
Gate is assembled at the jobsite. Additionally, all of the safety requirements of ASTM F2200 must be met during
installation. Failure to incorporate the safety mesh or follow ASTM F2200 safety requirements during gate as-
sembly and installation will cause rejection (under UL-325) of the entire gate system any time an attempt is made
to attach the gate to an automatic gate operator. Ameristar assumes no responsibility for gate installations that
fail to utilize the materials provided or meet the applicable safety standards.
1.
All gates require two 4" square truck bracket mounting posts, one to act as Fulcrum Post, the second as Tail
Support Post. Set these mounting posts in an off-line configuration as shown in Figure 1. Check grade condi-
tions to ensure posts are set to proper height; allow no more than four (4) inches from bottom of gate to grade.
A Supplemental Latch Post, located as shown in Figure 1, is required to mount patented offset latches (see Step
11 - Page 6). See post set table page 2.
SUPPLEMENTAL
LATCH POST
GATE LATCH -
(SEE STEP 11
ON PAGE 5)
FENCE LINE
FENCE POST
1
|
888-333-3422
AMERISTARFENCE.COM
PART # TP-II INST | 07/2018
U.S.A. Patent Number 5,136,813
ORNAMENTAL CANTILEVER
GATE INSTRUCTIONS
NOTE: FACE OF END POST TO CENTER OF
TAIL POST EQUALS GATE OUT-TO-OUT
MINUS 8 INCHES (MAX)
NOTE: FACE OF END POST TO CENTER OF
FULCRUM POST EQUALS CLEAR OPENING
PLUS 8 INCHES (MIN)
CANTILEVER GATE
CLEAR OPENING

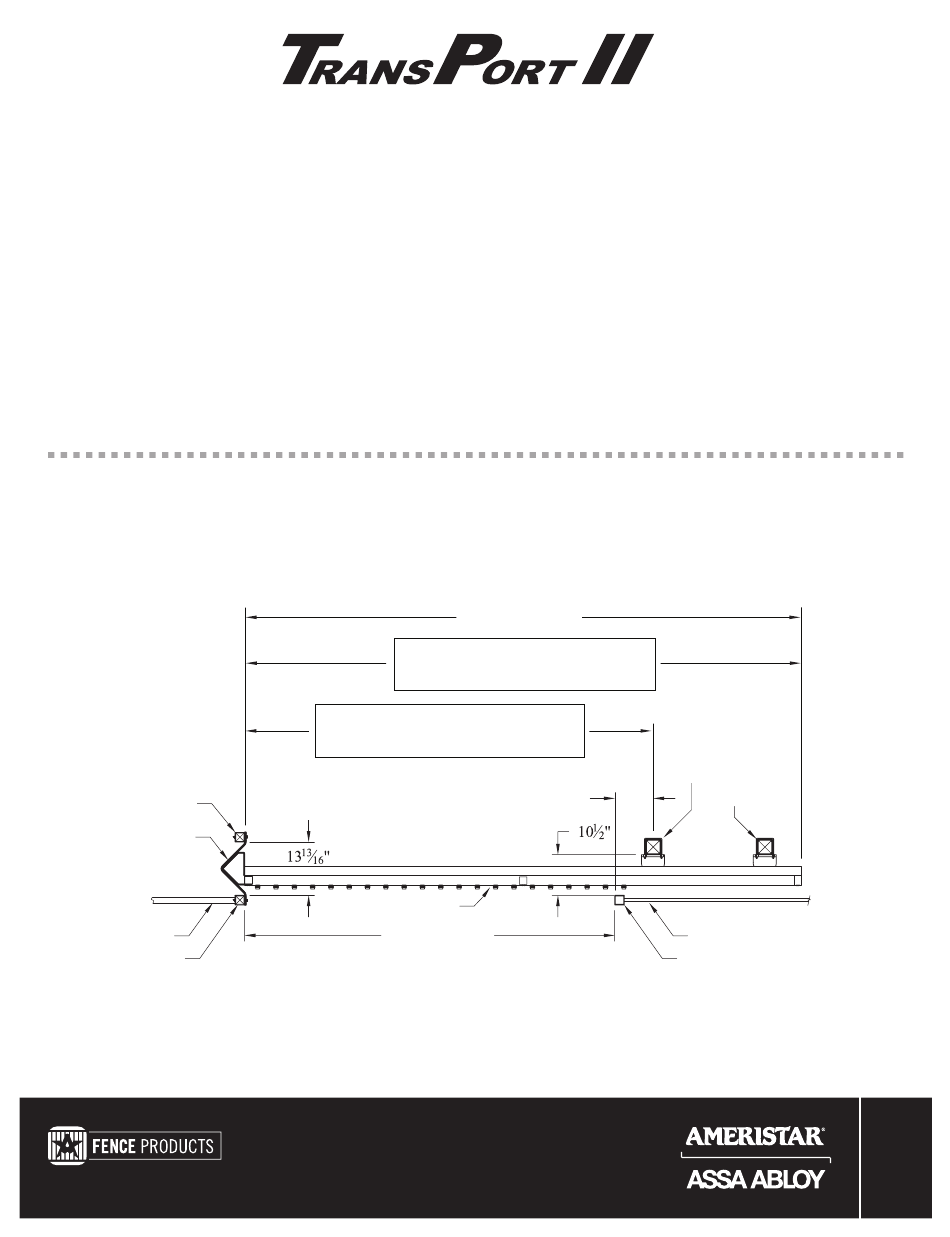

FIGURE 1
GATE OUT-TO-OUT
8"
FULCRUM POST
TAIL POST
FENCE LINE
FENCE POST
1
