Summary of Contents for miniDSP UMIK-X

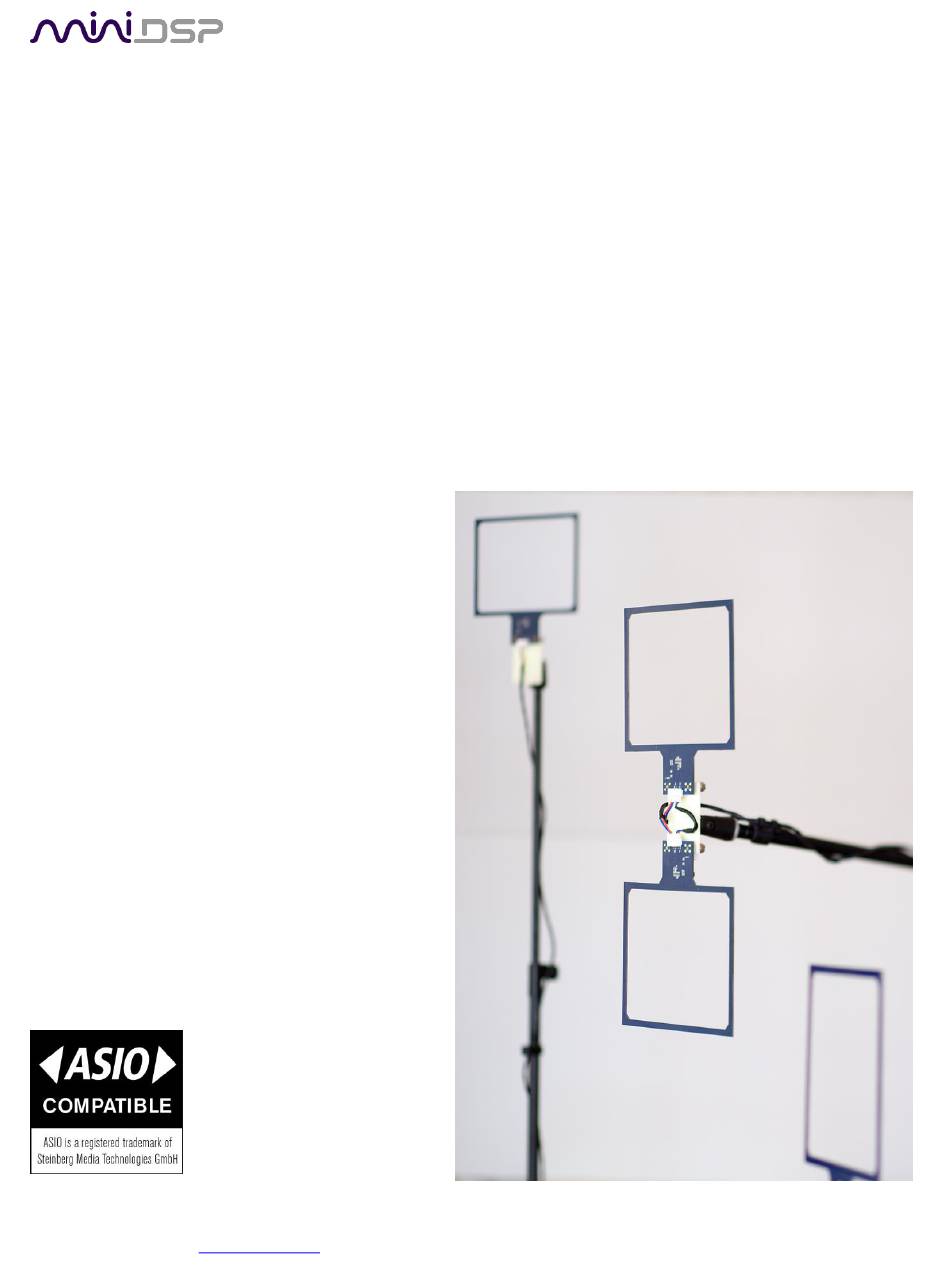

- Page 1 UMIK-X DISTRIBUTED MICROPHONE ARRAY User Manual miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
- Page 2 Second Preliminary 1 June 2020 Added screenshots for Mac 8 June 2020 Updated support links 6 July 2020 Added 4-channel firmware 21 August 2020 miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 3: Table Of Contents
Configuration in Audio MIDI Setup ......................18 Room EQ Wizard Multichannel Measurement ..................19 Enabling the license ..........................19 Configuring REW Preferences – Windows ....................20 5.2.1 miniDSP ASIO driver ........................20 5.2.2 ASIO4ALL ............................21 5.2.3 Selecting the calibration file ......................21 Configuring REW Preferences –... -
Page 4: Important Information
Warranty Terms miniDSP Ltd warrants this product to be free from defects in materials and workmanship for a period of one year from the invoice date. Our warranty does not cover failure of the product due to incorrect connection or installation, improper or undocumented use, unauthorized servicing, modification or alteration of the unit in any way, or any usage outside of that recommended in this manual. - Page 5 CE Mark Statement The UMIK-X has passed the test performed according to European Standard EN 55022 Class B. A Note on this Manual This User Manual is designed for reading in both print and on the computer. If printing the manual, please print double-sided.
-
Page 6: Product Overview
RODUCT VERVIEW Thank you for purchasing a miniDSP UMIK-X distributed microphone array. The UMIK-X consists of one to four UMA-4 microphone modules and a USB-A2B interface to interface the modules to the computer. Between four and 16 microphones can therefore be connected. UMA-4 modules are daisy-chained to each other using a single twisted-pair cable carrying the A2B protocol at 44.1 or 48 kHz. -
Page 7: Hardware Connectivity
(supplied). Channel numbering within each module is as shown. Headers for the two A2B ports A are located as shown. (A third header above one of the threaded lugs is not intended for end-user access.) Figure 1. UMIK-X physical structure miniDSP Ltd, Hong Kong / www.minidsp.com... - Page 8 • The stand adapter. One or two UMA-4 modules can be mounted to the adapter. Figure 2. UMA-4 microphone module and provided parts miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
- Page 9 When using a single module, the twisted pair cable to the USB-A2B interface plugs into the “A” jack as shown. Figure 3. Single UMA-4 module on microphone stand (connector/sound source side) miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
- Page 10 Each pair of UMA-4 modules is provided with a short 8 cm twisted-pair cable. This is used when mounting two modules onto a single stand, as shown in Figure 4. Figure 4. Dual UMA-4 modules mounted on a single stand with boom arm miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
- Page 11 Figure 5. USB-A2B interface Figure 6 illustrates how the UMIK-X is connected. Note that the power supply is equipped with a USA-style pair of power pins that fold out from the body. Adapters for UK, EU and AU power are included and can be fitted to the supply by folding down the pins and sliding the adapter into the slot until it locks.
- Page 12 Figure 6. UMIK-X connections miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 13: Installation And Configuration - Windows
3.2 USB DRIVER INSTALLATION The USB driver enables Windows to stream audio to the UMIK-X. In addition, it installs a control panel to help manage the UMIK-X. To install the driver, go to the WinDrivers folder of the installation download and double-click on the installer: •... -
Page 14: 4-Channel Firmware
X-4CH_v1.2.bin to load into the UMA-4. (The version number “v1.2” may be different.) All other procedures to use the UMIK-X in this manual are the same, except that (if you have four UMA-4 modules) REW or other measurement software will see only four channels from the UMIK-X. -
Page 15: Uac2 Control Panel
To configure the UMIK-X, open the miniDSP UAC2 Control Panel (from Start Menu -> miniDSP Ltd). It has several tabs. Status This tab shows the current sample rate of the UMIK-X. This setting cannot be changed in the Control panel, but simply reflects the current sample rate of the UMIK-X. Format... - Page 16 Info This pane shows information about the UMIK-X. About miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 17: Installation And Configuration - Mac Os X
X-4CH_v1.2.bin to load into the UMA-4. (The version number “v1.2” may be different.) All other procedures to use the UMIK-X in this manual are the same, except that (if you have four UMA-4 modules) REW or other measurement software will see only four channels from the UMIK-X. -
Page 18: Configuration In Audio Midi Setup
UDIO ETUP Open the program Audio MIDI Setup (in Applications->Utilities). Click on the device UMIK-X that appears in the list on the left. This will display the input and output channels. The Format drop-down menu will show the supported sample rates. For the input channels:... -
Page 19: Room Eq Wizard Multichannel Measurement
IZARD ULTICHANNEL EASUREMENT The UMIK-X is provided with a license for the multichannel measurement feature of Room EQ Wizard (REW). 5.1 E NABLING THE LICENSE To enable your license, drop down the Upgrades menu and select Multichannel measurement. Paste in your license code. -
Page 20: Configuring Rew Preferences - Windows
To use the UMIK-X, open the Preferences window (the wrench/spanner icon at top right). You will need to decide on how to allow REW to output test signals as well as to select the UMIK-X for audio input. 5.2.1 miniDSP ASIO driver The A2B interface has a standard optical stereo output (TOSLINK). -
Page 21: Asio4All
I/O configured. Note that – even with the calibration file – the UMIK-X does not have same level of accuracy as the UMIK-1. The polar response is not symmetrical at high frequencies. The benefit of the UMIK-X is its ability to make multiple measurements at the same time. -
Page 22: Configuring Rew Preferences - Macos/Os X
The A2B interface has a standard optical stereo output (TOSLINK). The simplest method of sending test audio from REW is to connect this optical output to a device that has an optical input. For example: In this case, select the UMIK-X for both input and output: miniDSP Ltd, Hong Kong / www.minidsp.com... - Page 23 REW Preferences to select it: Note that – even with the calibration file – the UMIK-X does not have same level of accuracy as the UMIK-1. The polar response is not symmetrical at high frequencies. The benefit of the UMIK-X is its ability to make multiple measurements at the same time.
-
Page 24: Running A Multichannel Measurement
(In other words, up to 17 individual measurement graphs will be produced from one sweep.) miniDSP Ltd, Hong Kong / www.minidsp.com... - Page 25 Note: when choosing channels, remember that channel 1 is “furthest” from the computer. See Figure 6. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 26: Additional Information
Matched sensitivity for uniform response Mounting Plastic clamp for microphone mounting Dimensions (mm) / Weight 172 x 180mm/ 27g Based on MEMS manufacturer specifications miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 27: Firmware Upgrade
4-channel and 16-channel mode by uploading the corresponding firmware file. To upgrade the A2B firmware, first download the latest version of the UMIK-X software package from the User Downloads section of the miniDSP website, then extract it on your computer (on Windows, right-click and select “Extract All...”;... - Page 28 Click on the Browse button and select the firmware file from the XMOS_Firmware folder of the software download. It will have a name like UMIK-X_v1.2.bin for 16-channel mode or UMIK-X-4CH_v1.2.bin for 4- channel mode. (The version number “v1.2” may change.) Click on the Start button.
-
Page 29: Macos
Connect the A2B interface to your computer via USB (if not already connected) and power it on. Navigate to the XMOS_Firmware/Firmware_Upgrade_Tools/Mac folder of the software download. Double-click on the .zip file to extract the firmware update software, then double-click on miniDSP USB DFU.app to run it. The app will start: miniDSP Ltd, Hong Kong / www.minidsp.com... - Page 30 Click on the Browse button and select the firmware file from the XMOS_Firmware folder of the software download. It will have a name like UMIK-X_v1.2.bin for 16-channel mode or UMIK-X-4CH_v1.2.bin for 4- channel mode. (The version number “v1.2” may change.) Click on the Start button.
-
Page 31: Obtaining Support
6.3 O BTAINING SUPPORT 1. Check the forums on miniDSP.com to see if this issue has already been raised and a solution or solutions provided. 2. Contact miniDSP via the support portal at support.minidsp.com with: a. The product information. b. A clear explanation of the symptoms you are seeing.
