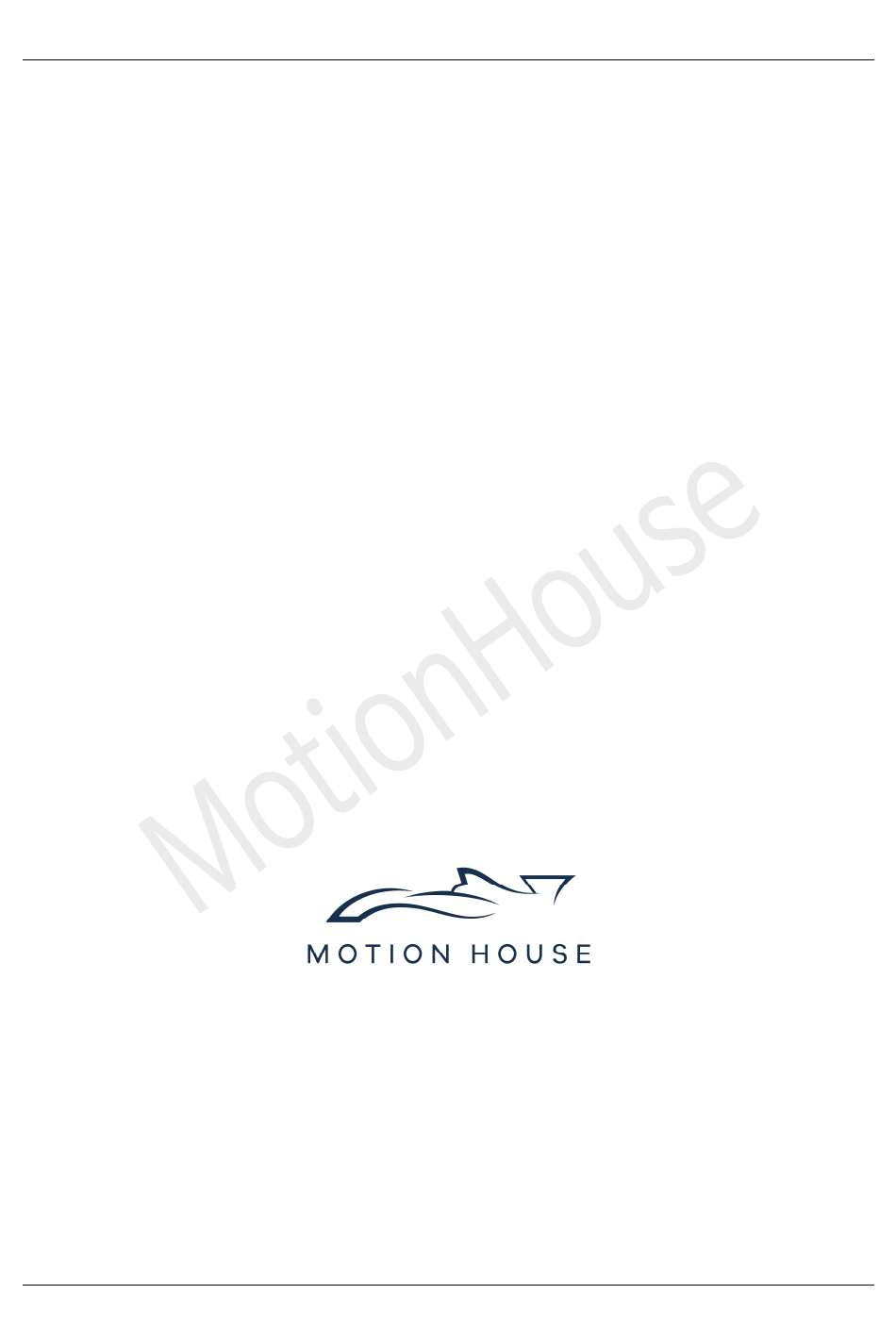

- Page 1 Motion Simulator MotionGear 4U MotionGear 4U User Guide 629ho 296, Sandan-ro, Danwon-gu, Ansan-si, Gyeonggi-do, Republic of Korea T:+82-31-318-1156 E:motionhouse@motionhouse.co.kr H:www.motionhouse.co.kr MotionHouse Co., Ltd. 1/11...
- Page 2 About MotionGear 4U (CAC4) MotionGear 4U is a 4-axis motion simulator, a device that can realistically provide the motion effects of digital content to users. When connected with various devices such as VR / AR devices, it can provide a higher sensation effect.
-
Page 3: Safety Precautions
Motion Simulator MotionGear 4U Safety Precautions The following are precautions for safety, so please keep them. If the instructions are not followed, the user may be killed or seriously injured, and injury or property damage may occur. Precautions Warning! To minimize the risk of personal injury, discomfort, and property damage, be sure to read the cautions before using the product. - Page 4 Motion Simulator MotionGear 4U Product disposal To learn more about where you can drop off your used electronic and electrical waste, contact your local or local waste management office, household waste disposal service, or store. Product care and maintenance : When cleaning the product, use a dry cloth.
- Page 5 Other parts * Brackets and bolts may differ for different cockpit models. For more information, please visit our website (www.motionhouse.co.kr). * The above images may be changed or updated without prior notice * Please refer to the assembly video on the technical support page of the homepage for the assembly method.
- Page 6 Motion Simulator MotionGear 4U MotionGear 4U Composition ② ① ③ Product composition ① Base frame : A frame that can be mounted on a cockpit. The base frame type varies depending on the type of cockpit. The base frame must be assembled with a bracket to attach the cylinder.

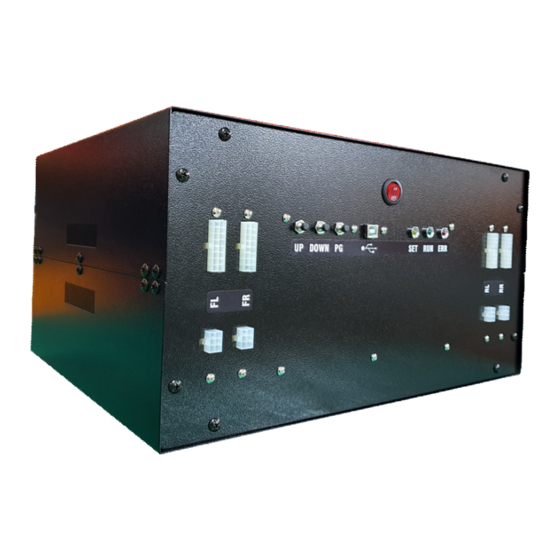

- Page 7 Motion Simulator MotionGear 4U How to operate MotionGear 4U Control Box (Front Panel) ④ ① ② ③ ⑤ ① Button part : It consists of UP button, DOWN button, PG button, If the UP button is pressed, the entire motion simulator moves upward, and when the DOWN button is pressed, the entire motion simulator moves downward.
- Page 8 ※ If the error continues, do not operate the product and contact the MotionHouse to take action. ④ POWER button: This button is used to turn the power ON / OFF. When the power is ON, the button lights red, and when it is OFF, the light goes out and the power is cut off.
- Page 9 Motion Simulator MotionGear 4U How to operate MotionGear 4U Control Box (Rear Panel) ② ① ① Power connector: It is a power connector of 2UN product and can be used in general cables other than the power cable provided by Motion House (AC220V, 10A or more).
- Page 10 How to use technical support and Data If you want technical support in addition to a separate manual for using MHServicer or emulator, please refer to the MotionHouse website (www.motionhouse.co.kr) or the contact information below. Please refer to the technical support tab on the homepage for detailed option settings.
-
Page 11: Warranty Card
Motion Simulator MotionGear 4U Warranty Card Model MotionGear 4U(CAC4) Serial No. Purchase date Warranty Customer Address Name e-mail Warranty contents * Free service information If a malfunction occurs under normal use within the warranty period from the date of purchase, we will repair it free of charge. (Within 1 year from the date of purchase / However, for commercial use, it is limited to 6 months.)
