Global Fire Equipment Valkyrie AS Series Quick Start Manual

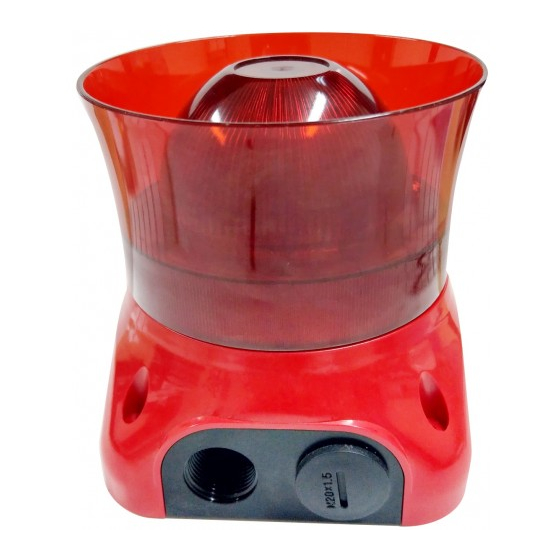

Valkyrie AS
Addressable Wall Sounder/Beacon
Sítio dos Barrabés, Armazém Nave Y, Caixa Postal 908-Z, 8150-016 São Brás de Alportel - PORTUGAL
Tel: +351 289 896 560 • Sales: sales@globalfire.pt • Technical Support: techs@globalfire.pt • www.globalfire.pt
SUPPLY VOLTAGE
LOOP CURRENT - QUIESCENT
LOOP CURRENT - SOUNDER/BEACON ACTIVE
MAXIMUM SOUNDER OUTPUT
CABLE SIZE
RESET/START-UP TIMES
PROTECTION CATEGORY
COLOUR / CASE MATERIAL
OPER. TEMPERATURE
MAX. HUMIDITY / PROTECTION
DIMENSIONS / WEIGHT
ORDER CODE
VALKYRIE AS-WHITE
VALKYRIE AS-RED
VALKYRIE-ASI-WHITE
VALKYRIE-ASI-RED
VALKYRIE ASB-WHITE
VALKYRIE ASB-RED
VALKYRIE-ASBI-WHITE
VALKYRIE-ASBI-RED
- Loop IN/ OUT
NOTE: Address programmed on switches 1-5 has an OFFSET of 94. For example if
D.I.L. switches 1-5 are all set to OFF the actual sounder address, as read by the panel, will be 94.
GLOBAL FIRE EQUIPMENT S.A.
TECHNICAL SPECIFICATIONS
Loop Powered - 20 V to 30 V DC
550 uA max. with isolator
10 mA - 280 mW @ 28 V DC inc. isolator
100 dB (@ 1 meter - 30 V DC)
0.5-2.5 mm²
20 seconds max.
Type A - Indoor Use / Rating IP21C
White or Red / ABS and PC
-10 C to 55 C
95% RH Non-Condensing / Type A - Indoor Use IP21C
110 (D) x 85 (H) mm inc. base / 254 g inc. base & 304 g inc. packaging
| CERTIFICATE | DESCRIPTION
1328-CPR-0286
ADDRESSABLE WALL SOUNDER-WHITE
1328-CPR-0286
ADDRESSABLE WALL SOUNDER-RED
1328-CPR-0286 ADDRESSABLE WALL SOUNDER-WHITE W/ LOOP ISOLATOR
1328-CPR-0286
ADDRESSABLE WALL SOUNDER-RED W/ LOOP ISOLATOR
1328-CPR-0286
ADDRESSABLE WALL SOUNDER/BEACON-WHITE
1328-CPR-0286 ADDRESSABLE WALL SOUNDER/BEACON-RED
1328-CPR-0286
ADDRESSABLE WALL SOUNDER/BEACON-WHITE W/ ISOLATOR
1328-CPR-0286
ADDRESSABLE WALL SOUNDER/BEACON-RED W/ ISOLATOR

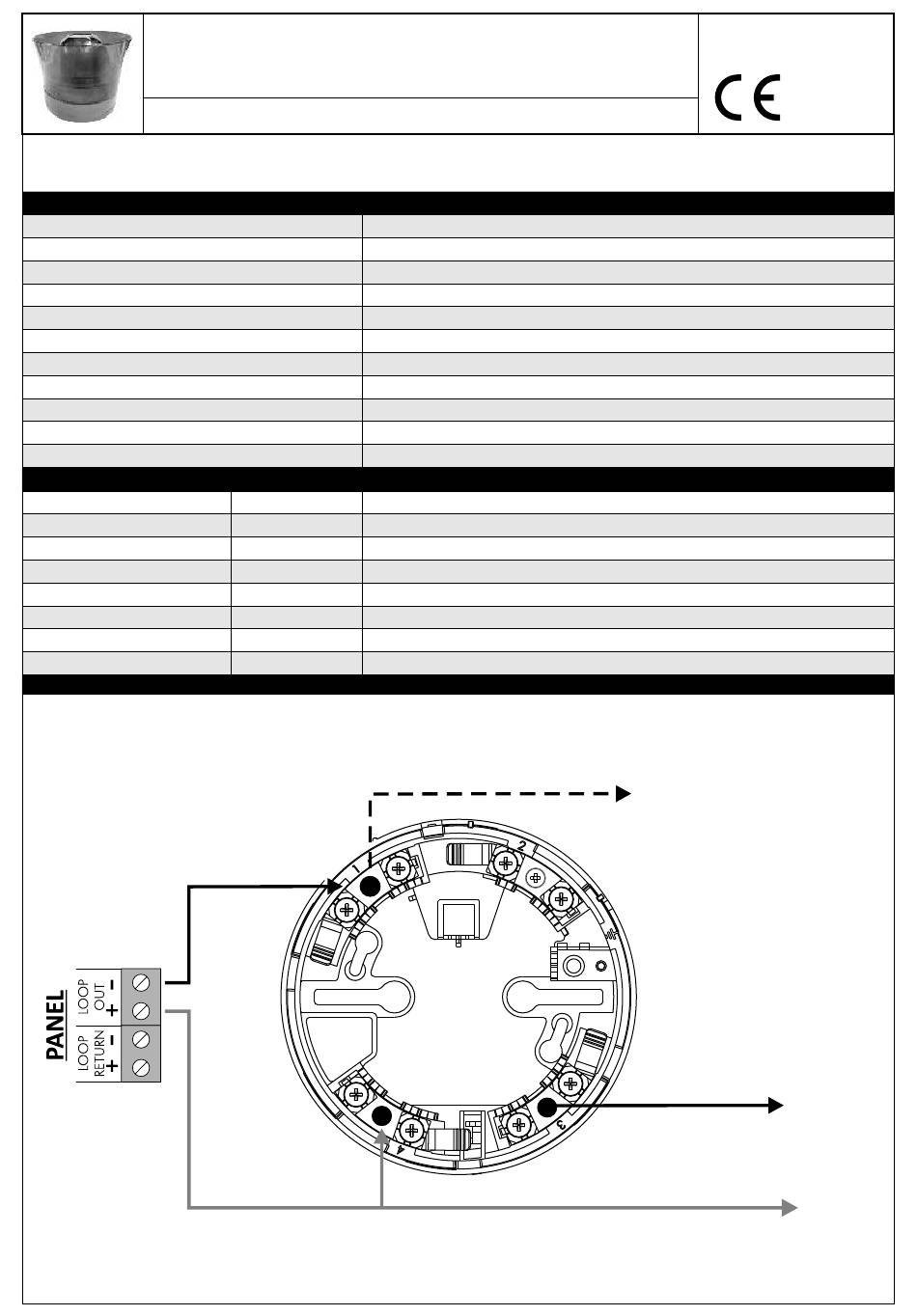

SOUNDER BASE - LOOP CONNECTIONS
Please note that this device is polarised.
1
4
o o
- Loop IN/ OUT
3
MADE IN PORTUGAL - EU
Connection applicable only to:
VALKYRIE AS / VALKYRIE ASB
To next device
in loop or return
to panel
- Loop IN/ OUT
Connection applicable only to:
VALKYRIE ASI / VALKYRIE ASBI
+ Loop IN/ OUT
MANUAL - 02/2018
