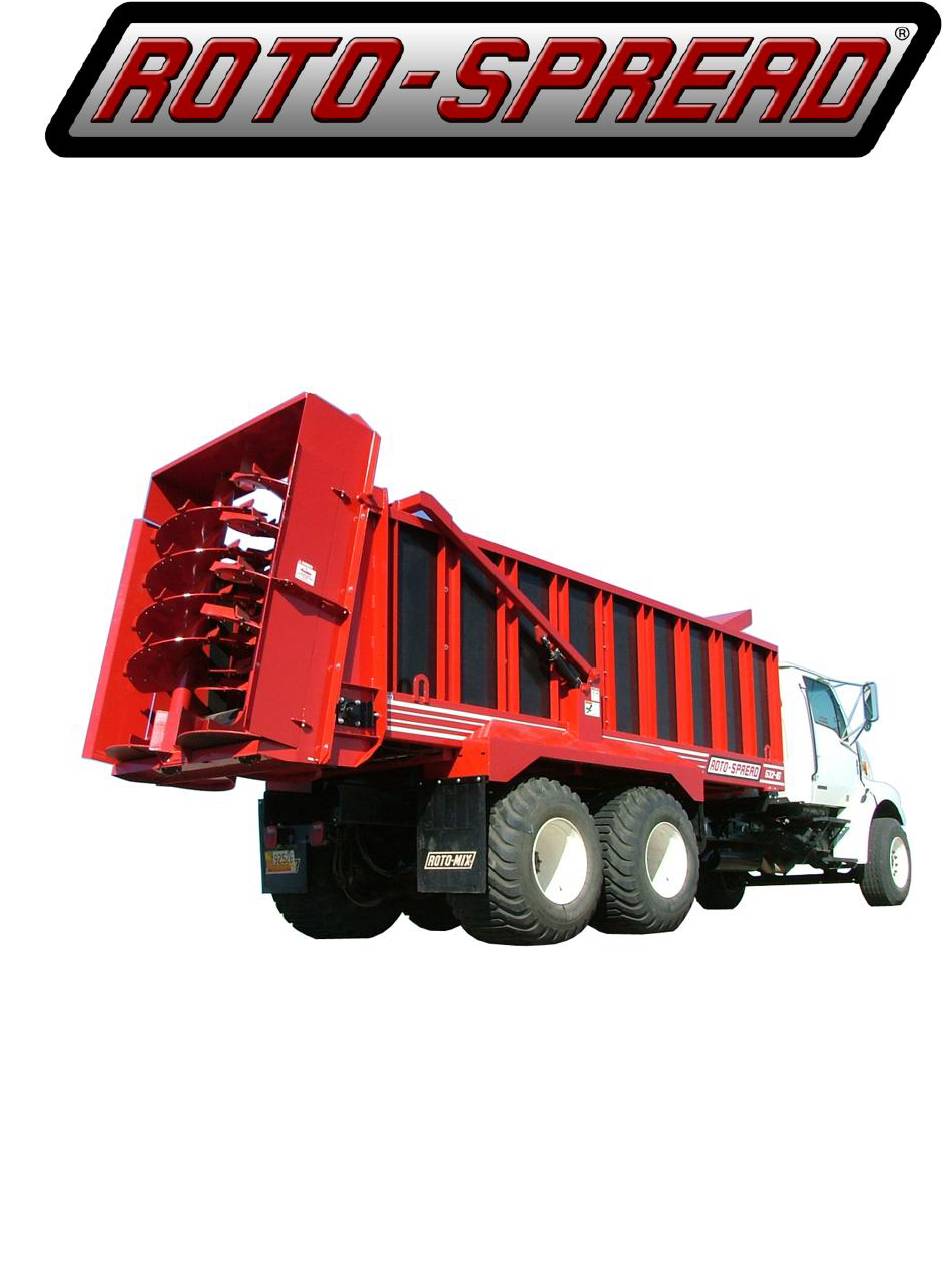

532-16 &

672-20

MANURE SPREADER

TRUCK UNIT

OPERATION AND PARTS MANUAL

ROTO-MIX LLC

2205 E. Wyatt Earp

PO Box 1724

Dodge City, Kansas 67801

(620) 225-1142

©Roto-Mix 2006

441937

08/2017

Printed in U.S.A.

Page

Table of Contents

Need help?

Do you have a question about the 532-16 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roto-Spread 532-16

Page 1 532-16 & 672-20 MANURE SPREADER TRUCK UNIT OPERATION AND PARTS MANUAL ROTO-MIX LLC 2205 E. Wyatt Earp PO Box 1724 Dodge City, Kansas 67801 (620) 225-1142 ©Roto-Mix 2006 441937 08/2017 Printed in U.S.A. Page...
Page 2: Introduction
INTRODUCTION Congratulations on the purchase of your new The Guarantee appears in the front of this book spreader from Roto-Mix. With proper operation and along with the Registration and Inspection Certifi- preventative maintenance it will last for years. cate. For information on ordering repair parts, refer to the Repair Parts section at the back of this book.
Page 3: Warranty
ROTO-MIX LLC warrants to the original purchaser all products manufactured by it to be free from defects in material and workmanship under normal use and service. ROTO-MIX’s obligation under this warranty is limited to repairing or replacing, as the company may elect, free of charge and without charge for installation, at the place of business of a dealer or distributor authorized to handle the equipment covered by this warranty or at a ROTO-MIX facility, any parts that prove, in the company’s judgment, to be defective in material or workmanship within one (1) year after delivery to the original purchaser, and still owned by the original purchaser.
Page 4: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE NO. Introduction ........................ 2 Warranty ........................3 Table Of Contents ...................... 4 Safety-Spreader ......................5 Safety Decals ......................5 Spreader Safety ......................6 Safety Decal Care ....................8 Specifications ......................9 Dimensional Data-Spreader ................. 9 Specifications &...
Page 5: Safety-Spreader
A (Both Sides) D (Both Sides) B (Both Sides) B,C & D (Front) NOTE: Complete decal kit part number for 672-20 is 630007, for 532-16 is 630004 Decal B. 440833 Decal A. 440827 Decal C. 440801 Decal D. 441657 READ ALL SIGNS ON THE MACHINE AND IN THIS MANUAL.
Page 6: Spreader Safety
SPREADER SAFETY Do not operate your spreader until you have read this Owner’s Manual, and understand the danger associated with its operation. This spreader is comprised of rotating drive shafts and rotating beaters. Any exposure to these spreader components can result in serious personal injury or death. Study the safety decal page and understand where the danger points are.
Page 7 Stay Clear Of Rotating Drive lines. Entanglement In Rotating Drive line Can Cause Serious Injury Or Death. Do Not Exceed Load Capacity Of The Spreader (See Specifications). Do Not Operate On Steep Slopes As Overturn May Result. Operate Up And Down (Not Across) Intermediate Slopes.
Page 8: Safety Decal Care
Do Not Work Under A Spreader Without Supporting With Suitable Support Stands. Always Use A Safety Support And Block The Wheels. Never Use A Jack To Support The Machine. Do Not Work Under A Spreader Without Blocking The Wheels To Prevent Rolling. A Fire Extinguisher And First Aid Kit Should Be Kept Readily Accessible While Performing Maintenance On This Spreader.
Page 9: Dimensional Data-Spreader
532-16 & 672-20 TRUCK DIMENSIONAL DATA C L of AXLES ALL DIMENSIONS ARE APPROXIMATE AND SUBJECT TO CHANGE WITHOUT NOTICE. VERTICAL DIMENSIONS ARE BASED ON A 40" TRUCK FRAME HEIGHT. Page 9...
Page 10: Specifications
SPECIFICATIONS Roto-Spread 532-16 Truck 672-20 Truck Capacity (Heaped) 532 Cubic Foot 672 Cubic Foot Struck Level 385 Cubic Foot 480 Cubic Foot 2,880 Gallon 3,450 Gallon Spreader Weight (Empty) 10,830 Lbs 12,187 Lbs Load Capacity (Net) 34,000 Lbs 43,000 Lbs Inside Dimensions 48”...
Page 11: Pre Operation
PRINCIPLE OF OPERATION Two vertical spinning beaters at the rear of the spreader expel manure in a uniform spread pattern. Each beater is driven by a hydraulic motor. A PTO driven hydraulic power supply on the spreader provides power to the beaters. The hydraulic pump is two stage thereby supplying independent power to each beater motor. A wide heavy duty belt covers the box floor.
Page 12: Operation
4. Avoid sudden uphill turns on steep slopes. 5. Do not drink and drive. 6. Comply with state and local laws governing highway safety. 7. Plan your route to avoid heavy traffic. 8. Be a safe courteous driver. Always yield to oncoming traffic in all situations, including narrow bridges, intersections, etc.
Page 13: Spread Pattern
11. Press belt switch “FORWARD” to return floor to the front. 12. When floor and front gate are at the front of the spreader return the belt switch to the center position. 13. Press the rear gate switch to “DOWN” to lower gate to the closed position. 14.
Page 14 accumulation in confined areas or pockets that trap manure. 6. Avoid directing high pressure spray directly on bearings, seals and flow control valve. 7. Keep high pressure spray moving on painted surfaces. Sustained spray on cracks or scratches in paint can result in paint peeling.
Page 15: Maintenance
MAINTENANCE PUT THE TRACTOR IN PARK, AP- PLY THE PARKING BRAKE, TURN OFF ENGINE REMOVE IGNITION KEY BEFORE CLEANING, AD- JUSTING, LUBRICATING OR SERVICING THIS MACHINE. READ THE FOLLOWING BEFORE CHECK LEVEL PLUG FILL PLUG WELDING ON THIS MACHINE ON TOP 1.
Page 16: Hydraulic System
HYDRAULIC SYSTEM SIGHT & (See figure 3) TEMP GAUGE FILLER CAP W/SCREEN 1. Oil Specification: CITGO Transgard Tractor Hydraulic Fluid - Material Code 633310001 . 2. Capacity: 40 gallon. 3. Maximum allowable operating temperature 240°F. 4. Check the oil level in the reservoir daily. It should be maintained 1”...
Page 17: Adjustments
SLIDING GATE ADJUSTMENTS Sliding Gate Scrapers (See figure 5) SCRAPER 1. A high density polyeth- CLAMP ylene scraper bar is clamped to the vertical edges of the sliding gate. These scrapers SCRAPER DRIVE must contact the vertical CHAIN box walls to clean mate- rial.
Page 18: Rear Gate Flashing
Adjust Spread Pattern (See figure 7) The spread pans at the rear of the spreader can be set for wide spreading or they can be hinged inward to spread straight behind the spreader. ADJUST HERE FIGURE 7. ADJUST SPREAD PATTERN Page 18...
Page 19: Repair Parts
REPAIR PARTS 532-16 & 672-20 TABLE OF CONTENTS 532-16 & 672-20 Spreader Assembly ................ 20 Truck Box Assembly ....................22 Box sides & Floor ....................... 24 Beater Assembly ......................26 Sliding Gate Assembly ....................28 Rear Gate Assembly1 ....................29 Spreader Hydraulic Parts ..................
Page 20 532-16/672-20 TRUCK SPREADER ASSEMBLY Page 20...
Page 21 BELT CLAMP 351035 672-20 BELT, 5/16" x 71" x 281 1/2" LONG 351033 532-16 BELT, 5-16" x 71" x 235' LONG 407730 STUD BOLT, RIBBED NECK 7/16-20 UNF x 1 3/4" 401106 3/8" - 16 HEX NYLOC NUT #5 PLTD...
Page 22 532-16/672-20 TRUCK SPREADER BOX ASSEMBLY Page 22...
Page 23 532-16/672-20 TRUCK SPREADER BOX ASSEMBLY Page 23...
Page 24 532-16/672-20 TRUCK SPREADER BOX, SIDES & FLOOR 14 15 16 17 Page 24...
Page 25 532-16/672-20 TRUCK SPREADER BOX, SIDES & FLOOR ITEM # PART NO. DESCRIPTION QTY. 532 & 672 HDPE-UVI SIDE, FRONT 1/2"x48"x120" 130320 2 EA 532 HDPE-UVI SIDE, REAR 1/2"x48"x96" 130330 672 HDPE-UVI SIDE, REAR 1/2"x48"x144" 130350 532 HDPE-UVI FLOOR STRIP 1/2"x32-1/2"x120"...
Page 26 532-16/672-20 TRUCK SPREADER BEATER ASSEMBLY Page 26...
Page 27 532-16/672-20 TRUCK SPREADER BEATER ASSEMBLY Page 27...
Page 28 532-16/672-20 TRUCK SPREADER SLIDE GATE ASSEMBLY 9 10 11 ITEM # PART NO. DESCRIPTION QTY. 130423 SHEET SLIDING GATE COVER 130428 SCRAPER ( 6 1/2" x 48" ) 130429 CLAMP, SCRAPER (44 1/2" LG) 130448 THREADED ROD, BELT TENSION 130593...
Page 29 532-16/672-20 TRUCK SPREADER REAR GATE ASSEMBLY ITEM # PART NO. DESCRIPTION QTY. 130334 END GATE LINER 130439 CLAMP, SEAL 130440 FLASHING, SWINGING GATE 401106 HEX NYLOC NUT #5 Pltd 3/8" -16 402506 3/8" WASHER, FLAT 405050 TRUSS HD SCREW, 3/8"-16 x 1 1/4" LG 407903 .HHCS, SERRATED #5 Pltd.
Page 30 532-16/672-20 TRUCK SPREADER HYDRAULIC ASSEMBLY Page 30...
Page 31 532-16/672-20 TRUCK SPREADER HYDRAULIC ASSEMBLY Page 31...
Page 32 532-16/672-20 TRUCK HYDRAULIC ASSEMBLY Page 32...
Page 33 532-16/672-20 TRUCK HYDRAULIC ASSEMBLY Page 33...
Page 34 532-16/672-20 TRUCK HYDRAULIC CONTROL BLOCK Page 34...
Page 35 532-16/672-20 TRUCK HYDRAULIC CONTROL BLOCK ITEM # PART NO. DESCRIPTION QTY. 357745 PRESSURE SWITCH N/O, NASON PRESET 3650 PSI 357747 PRESSURE SWITCH N/O, NASON PRESET 1500 PSI 357748 PRESSURE SWITCH N/C, NASON PRESET 3300 PSI 362297 PROPORTIONAL FLOW CONTROL VALVE...
Page 36 532-16/672-20 TRUCK SPREADER WIRING BROWN PURPLE GRAY ORANGE BLACK BLACK GREEN BLACK BLUE ITEM # PART NO. DESCRIPTION QTY. 358419 WIRE HARNESS, 532 TRUCK SPREADER 358421 WIRE HARNESS, 532-672 TRUCK SPREADER, SUPPL 362357 HYDRAULIC MANIFOLD 532/672 TRUCK MNT 780225 ELECT CONT BOX-TRUCK SPREADER...
Page 37 532-16/672-20 TRUCK SPREADER MOUNT KIT WITHOUT SCALES 10 13 ITEM # PART NO. DESCRIPTION QTY. 130618 PLATE, SPREADER TRUCK MOUNT ( 12" x 11" ) 130779 802 MOUNTING TUBE SUPPORT ( 4" x 10" ) 130796 802 UHMW MOUNT PAD (3/4"...
Page 38 532-16/672-20 TRUCK MOUNT KIT WITH SCALES Page 38...
Page 39 532-16/672-20 TRUCK MOUNT KIT WITH SCALES Page 39...
Page 40 532-16/672-20 TRUCK CONTROL BOX & ARMREST ASSEMBLY ITEM # PART NO. DESCRIPTION QTY. 130369 BRACKET, ELECTRICAL CONTROL BOX 185930 ARM REST PAD 12" 400606 HEX JAM NUT 3/8-16" 402005 5/16" MED PLTD SPRING LOCK WASHER 403494 3/8" TAPPING BOLT 1-1/4"...
Page 41 532-16/672-20 TRUCK SPREADER DECALS ITEM # PART NO. DESCRIPTION QTY. 440801 DECAL(IMP-REDUCE SPD.) 4.25x7 440826 DECAL - DANGER: ROTATING DRIVE SHAFT 440841 DECAL - PATENT PEND 11/16x5 440827 DECAL - DANGER: ROTATING AUGERS 440833 DANGER PINCH POINT 4"x 4" 440939 DECAL, ROTO-SPREAD 7-1/2"x43-1/16"...
Page 42 532-16/672-20 TRUCK SPREADER FENDERS 4 5 8 ITEM # PART NO. DESCRIPTION QTY. 130619 ANGLE BRACE, 672 FENDER (11 1/2" LG ) 183087 MUD FLAP STRAP 23" 401106 HEX NYLOC NUT #5 Pltd 3/8" -16 401108 HEX NYLOC NUT #5 Pltd., 1/2-13 402408 FLAT WASHER, 1/2"...

This manual is also suitable for:

672-20
