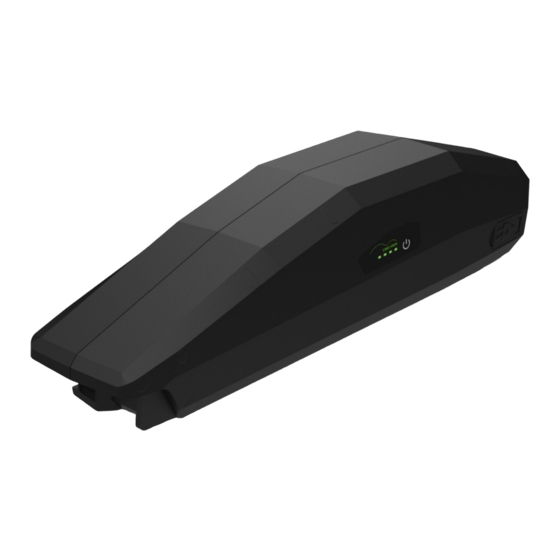

Manual for Power Pack compatible for Yamaha* PW Series drive system
Manual / Safety notes
for your E-Bike Vision Power Pack, compatible with
Yamaha* PW Series with 36 V
Power information:
17,1 Ah / 624 Wh Battery downtube
20,7 Ah / 745 Wh Battery downtube
Dimensions downtube version 17,1 and 20,7 Ah: 372,0 x 98,2 x 98,4 mm
Date: January 2020
Version: 01
E-Bike Vision GmbH
Friedenstraße 17
D-63814 Mainaschaff
fon: +49 (0) 6021 / 3289 - 288
fax: +49 (0) 6021 / 3289 - 286
mail: info@e-bike-vision.de
web: www.e-bike-vision.de
www.facebook.com/ebikevision
* Yamaha is a trademark of the YAMAHA CORPORATION
Page 1 of 12
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for e-bike vision POWERPACK 745 Wh
- Page 1 Manual for Power Pack compatible for Yamaha* PW Series drive system Manual / Safety notes for your E-Bike Vision Power Pack, compatible with Yamaha* PW Series with 36 V Power information: 17,1 Ah / 624 Wh Battery downtube 20,7 Ah / 745 Wh Battery downtube...
- Page 2 We are glad, that you choose a Lithium battery of our Power Pack range. Please take some time to read this manual carefully. It contains detailled information about handling of your battery, it’s functions and it’s care, as well as the usage of the E-Bike Vision fast charger.
-
Page 3: Technical Information
Accessories - E-Bike Vision fast charger for power packs with 36 V and a charge current of 7A. - E-Bike Vision charger for power packs with 36 V and a charge current of 4A. Both chargers must be used with the following adaptor: E-Bike Vision charge adaptor for Power Pack comp. - Page 4 Manual for Power Pack compatible for Yamaha* PW Series drive system Common safety notes for Power Packs Please read this manual carefully! Please consider the safety notes! - Power Packs are no toys. Keep them away from children! - Don’t change anything on the battery. Especially, consider that you are not allowed to open the battery, or rather modify it, otherwise you loose your warranty claim.
- Page 5 (by turning off the fuse) immediately. Disconnect the charger from the mains and let it be checked by the E-Bike Vision service center. - A sudden temperature change from cold to hot, there could be condensation water on and in the charger.
- Page 6 You can charge your new battery as usual with the original charger, which was included in the scope of delivery when you purchased the pedelec. When using the E-Bike Vision charger in combination with the optionally available charging adapter or when using the original charger, you can charge your battery in the Pedelec or outside the Pedelec.
- Page 7 Manual for Power Pack compatible for Yamaha* PW Series drive system Names of the LEDs on the capacity indicator Legend of the LED display Anzeige Beschreibung LED off LED on LED flashes slowly (0,5 s interval) LED flashes quickly (0,2 s interval) * Yamaha is a trademark of the YAMAHA CORPORATION Page 7 of 12...
- Page 8 4A and approx. 3 hours with the optionally available quick charger 7A from E-Bike Vision GmbH . The battery with a capacity of 20.7 Ah (745 Wh) takes approx. 6 hours for a full charge with the original standard charger 4A and approx.
- Page 9 Have you correctly installed your new E-Bike Vision Power Pack in your pedelec and locked it with the lock (don't forget to remove the key!)? Then switch on the drive system using the on / off switch on your display.
- Page 10 Manual for Power Pack compatible for Yamaha* PW Series drive system The LED status display on the battery: The battery status is displayed by pressing the button on the battery once. Display Description State of Charge 0% State of Charge 1 – 10% State of Charge 11 –...
- Page 11 Manual for Power Pack compatible for Yamaha* PW Series drive system Display of charge cycles By pressing and holding the button for a period of approx. 20 seconds, the full cycles are displayed for the entire operating time: LED 1 flashes 0 - 100 full cycles LED1 lit: 100 - 200 full cycles...
-
Page 12: Maintenance
Is the green LED of the charger flashing? If this is flashing red, there can be a short circuit. Charger and battery must be returned to the E-Bike Vision service center. If the battery is damaged, defective or exits any liquids or smell? Please do not use your Power Pack further and contact your dealer or our service center.
