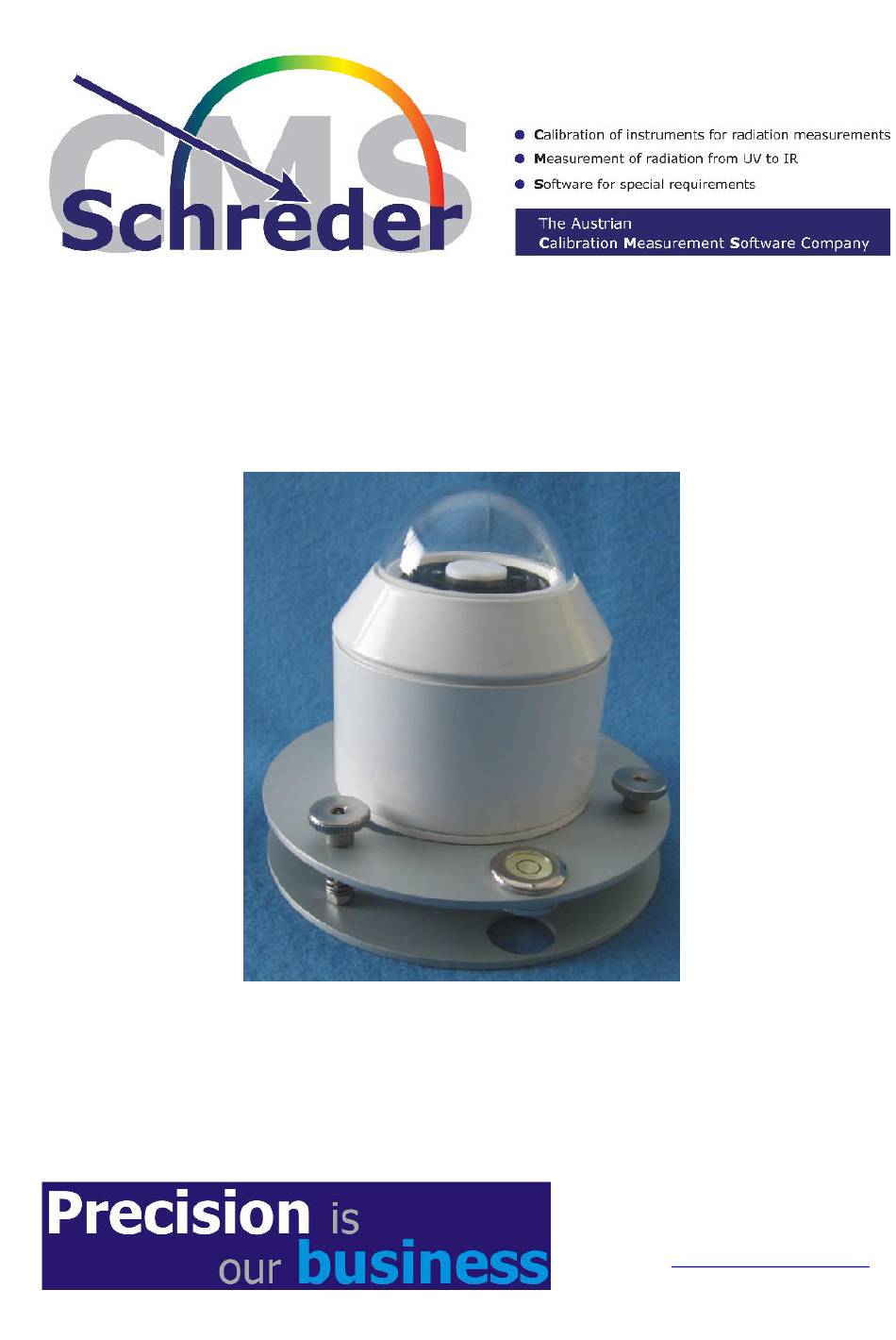

- Page 1 J1034-UV-A/B/E DETECTOR USER’S MANUAL C M S I n g . D r . S c h r e d e r G m b H Lofererstraße 32, A-6322 Kirchbichl Tel.: +43 / (0)5332 / 77056-00 Fax.: +43 / (0)5332 / 77056-14 E-Mail: info@schreder-cms.com...
- Page 2 No part of this manual may be reproduced or transmitted in any form or by any means, electronic, optical or mechanical, including photocopying and recording, or by any information storage and retrieval system, without permission in writing from CMS Ing. Dr. Schreder GmbH.
-
Page 3: Table Of Contents
SAFETY INFORMATION ......................2 ........................2 ARNING AUTION ........................2 OLTAGE ARNING GENERAL DESCRIPTION ......................3 ........................3 ECHNICAL ...................3 IN CONNECTION OF ALL DETECTORS ....................4 ELATIVE PECTRAL ESPONSE MOUNTING AND ALIGNMENT ....................5 COMPONENTS, PARTS, REFERENCE ...................6 ......................6 IST OF ADDITIONAL PARTS ..........................6 EFERENCES J1034-UV-A/B/E DETECTOR Manual... -
Page 4: User Information
CMS service personnel. The damage or defect is caused by not respecting the instructions of use • as given on the product brochure or the instruction manual. Contact Information CMS Ing. Dr. Schreder GmbH Lofererstraße 32 6322 Kirchbichl Austria Tel.:... -
Page 5: Safety Information
Power Supply Make sure to check the power supply voltage and type (AC/DC) before • connecting the device to the power supply. Connecting the device to other power supplies than specified will lead to damage and accidents J1034-UV-A/B/E DETECTOR Manual... -
Page 6: General Description
Ground for power supply and signal output 3 – N.C./Output UV [gray] not connected (single band) UV-E (dual band) output 4 – Output UV [yellow] UV-B, UV-A, UV-E, UV-AB output UV-A (dual band) output 5 – Housing J1034-UV-A/B/E DETECTOR Manual... -
Page 7: Relative Spectral Response
Figure 1 Relative Spectral Response of the single band detectors. Erythemal weighting function ERY defined @ ISO 17166:1999/ CIE S 007/E: 1998. UV-E UV-A WAVELENGTH [nm] Figure 2 Relative Spectral Response of the dual band detector. Erythemal weighting function ERY defined @ ISO 17166:1999/ CIE S 007/E: 1998. J1034-UV-A/B/E DETECTOR Manual... -
Page 8: Mounting And Alignment
Figure 3 UV detector mounted on Detectorbase (Art.No.: 105103). This part fits ideally to the J1033-Shadowring, which can be seen on the next page. The UV-xx detectors may be directly mounted on an individual base with two M4 screws (distance diameter 50 mm) without using the Detectorbase2 (Art.No.: 105104). J1034-UV-A/B/E DETECTOR Manual... -
Page 9: Components, Parts, Reference
[4] ISO 17166:1999 / CIE S 007/E-1998: Erythema reference action spectrum and standard erythema dose. [5] Schreder, J., J. Gröbner, A. Los, and M. Blumthaler, 2004: Intercomparison of monochromatic source facilities for the determination of the relative spectral response of erythemal broadband filter radiometers. Optics Letters, 29(13).
