ANXELL E5AR Series Manual

E5AR
Features:
• Applicable card mode：
EM Card / Key Fob
• 1 Administrator and 200 Users
• 200 Proximity Cards / Key fobs
• Access Modes：Use Bluetooth smartphone
or Card / Key fob to access
• Built-in Tamper alarm and Buzzer (85dB)
• User Management：Add / Delete / View
user data, Grant user access for specific
dates or time periods, Change user passcode
• Audit Trail logs for last 1000 events
• Alarm output to notify that Tamper alarm
has been triggered
• Overhead LEDs for easy use in the dark
• IP65

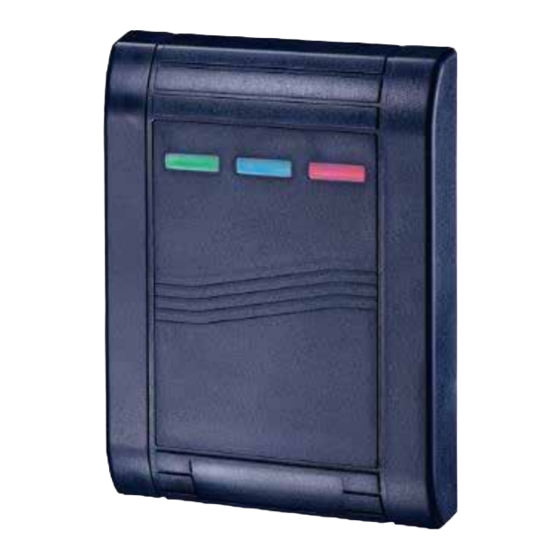

E5AR Series
Access Control Proximity Readers
Specifications:
• Operating Voltage：12VDC
• Bluetooth Module：BLE 4.2 Bluetooth Low Energy
• Current Draw：
Standby current：
36mA@12VDC
Working current (Relay active)：
42mA@12VDC
• Read Range：5cm
• Frequency：EM 125KHz
• Operating Distance：Up to 50 meters (164 ft)
without blocking by metal or concrete wall / door
frames
• Smartphone Compatibility：Android 5.0 and up,
iOS 9.0 and up
• Finish：ABS
• Temperature：-20 °C ~ 70 °C (-4 °F ~158 °F)
• Dimension / Color：
E5AR：114 (L) x 80 (W) x 18 (D) mm / Navy Blue
E5AR2：88 (L) x 44 (W) x 23 (D) mm / Black
E5AR2
1
