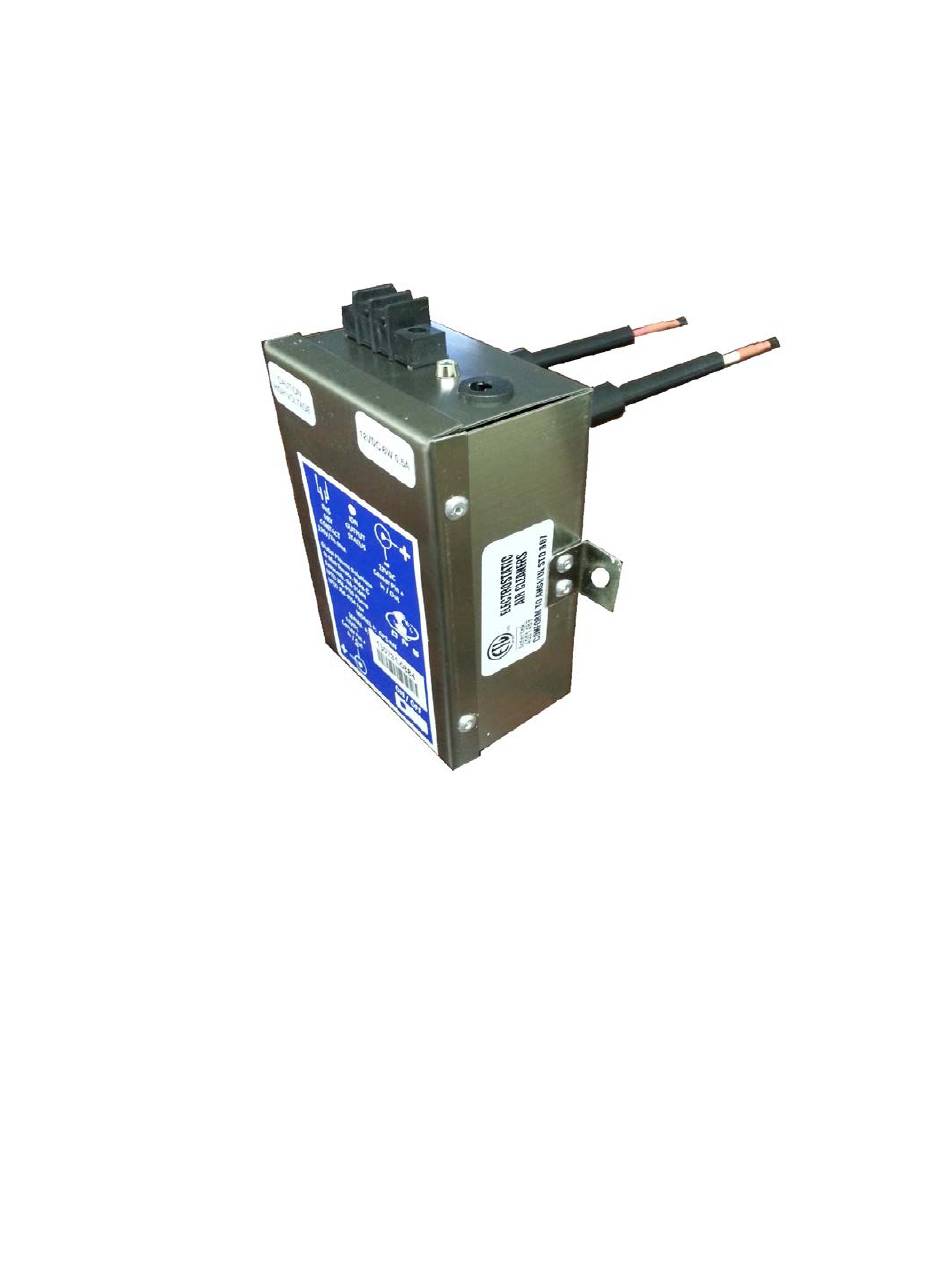

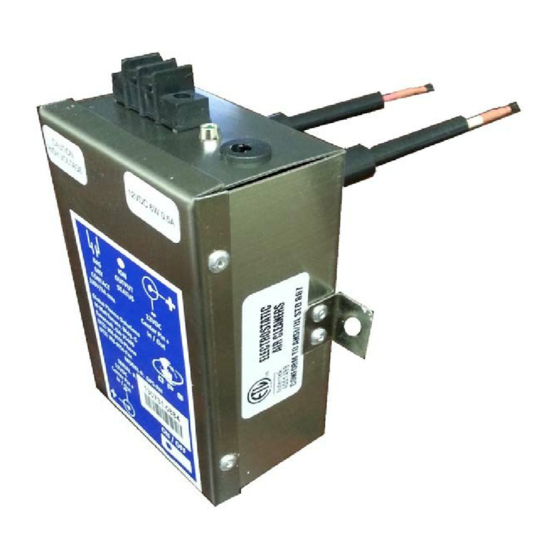

- Page 1 Global Plasma Solutions 10 Mall Terrace, Bldg C Savannah, GA 31406 (912) 356-0115 ph (877) 270-5353 fax www.globalplasmasolutions.com info@globalplasmasolutions.com GPS-RN IOM MANUAL...
- Page 2 7. If the system contains more than one GPS-RN unit, 3' DC power cables will be provided with 2.5mm plugs on both ends. Simply plug the cable into the jacks as shown in the above samples. 8. All DC power jacks on the GPS-RN units are wired in parallel internally so there are no in/out requirements. UNIT...
- Page 3 IMPORTANT NOTES: The GPS-UP12-RN power supply can power up to two GPS-RN units. GPS-UP12-RN Power Supply Specifications: Voltage: 24VAC to 240VAC Power: 12VA Output: 12VDC at 1A Power Input Connection: 3' Plenum Rated Cable with ground and AC input Power Output Connection: 2.5mm DC Power Jack = center Pin +12V...
- Page 4 5. Mount the power supply near the GPS-RN. 6. Insert the 2.5mm DC plug into one of the power jacks on the GPS-RN unit. If two GPS-RN units are required per duct, a double end cable with 2.5mm plugs on both ends will be provided by GPS.
- Page 5 (BAS) to know that there are no alarms. 2. Each GPS-RN can be wired for individual BAS control or wired in series as shown in the above example so if one unit fails, an alarm is initiated.
- Page 6 CAUTION 1. NEVER TOUCH ION NEEDLES WHILE OPERATING. SHOCK MAY OCCUR. 2. GPS-RN SHOULD NEVER BE CONNECTED WITH AN EXTENSION CORD. 3. DO NOT CONNECT POWER BEFORE INSTALLATION IS COMPLETE. ALWAYS DISCONNECT POWER TO THE UNIT BEFORE HANLDING ANY OF THE UNIT COMPONENTS OR SERVICING.
