Summary of Contents for FM Systems TPT-4000
- Page 1 TPT-4000 TWISTED PAIR REPEATER TAP INSTRUCTION BOOK IB6350-01...
- Page 2 TABLE OF CONTENTS DESCRIPTION MOUNTING INSTRUCTIONS HOW TO CABLE THE TPT-4000 POWER SUPPLY INSTALLATION OPERATION CARE AND MAINTENANCE APPLICATIONS (WHERE TO USE THE SYSTEM) CCTV INSTALLATION TIPS 4-5-6 SPECIFICATIONS TPT-4000.ISB PAGE 1 OF 6...

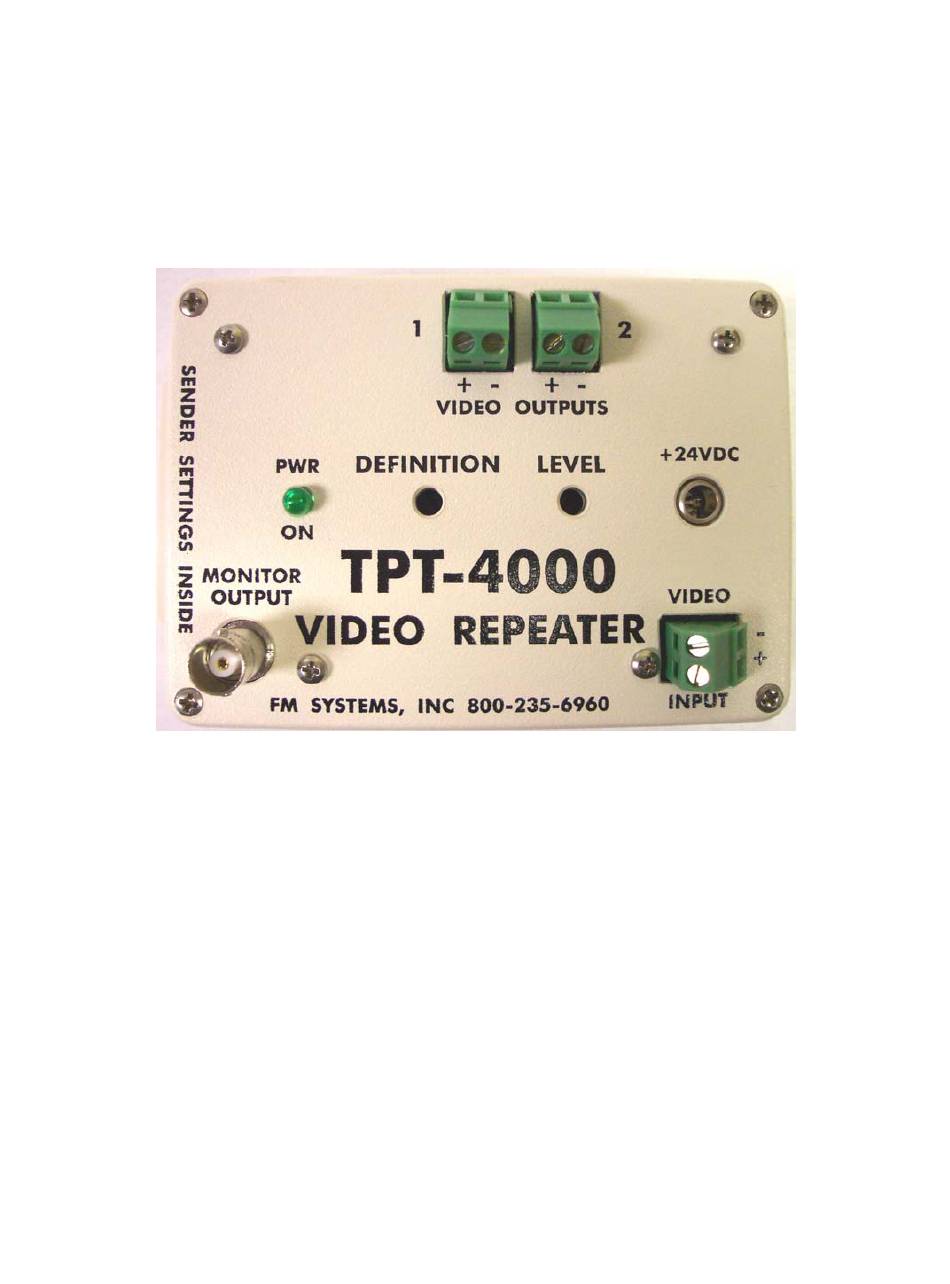

- Page 3 DESCRIPTION The TPT-4000 Twisted Pair Tap Repeater is used to amplify and equalize video from a camera over twisted pair wire gages 18 to 24 AWG. The unit has one twisted wire video input, a BNC Tap or drop to use for a local monitor and two twisted pair video outputs (a splitter) so that the unit can drive two separate video lines with the same camera picture.
- Page 4 The TPT-4000 can be located at any point in the twisted pair wire run to equalize the video wire path. Select a position that gives you the best access to wire the system and reduces the labor in installation.
- Page 5 Video pictures on long wire runs will benefit from the installation of the TPT-4000. In a long cable run the TPT-4000 can be placed at the mid point between the camera and the monitor to improve the transmission level and picture quality of the signal.
- Page 6 If you already have an installation that has 60 cycle bars, there are some steps you can take to solve the problem. If coaxial cable shields are connected together anywhere in the system, separate them if possible. TPT-4000.ISB PAGE 5 OF 6...
- Page 7 Equalization Distance 0-2000 feet Signal to Noise Ratio 70 dB Total Equalization Distance 0-4000 feet (In-Out) MECHANICAL Size 5.5" L x 3.3"W x 2"D Enclosure ABS with Mounting Flange Power Requirements 24 DC Wall Mount (Supplied) TPT-4000.ISB PAGE 6 OF 6...
