Summary of Contents for Tecnare Sound Systems SUB Series
- Page 1 Operation Manual SUB Series SW-221 HIGH-POWER BASS-REFLEX INFRA SUBWOOFER Keep these important operating instructions. Check www.tecnare.com for updates.
- Page 3 General Information SW-221 Operation Manual Ver.: 2.1_UK 04/2019 ©EXEL ACOUSTICS SL; all right reserved The information contained in this manual has been carefully checked for accuracy, at the time of going to press, however no guarantee is given with respect to the correctness. Exel Acoustics SL accepts no responsibility for any errors or inaccuracies that may appear in this manual or the products and software described in it.
-
Page 4: Important Safe Instructions
Operation Manual IMPORTANT SAFE INSTRUCTIONS Before using our product, be sure to carefully read the manual and safe Instructions. Keep this document with the device all time. Read these instructions 11. Handles are for moving the system only. Keep these instructions. 12. -
Page 5: Symbol Used
Operation Manual SYMBOL USED Important operating Additional infor- OBLIGATION. This instructions mation instructions must be strictly followed Pour indequer Information complé- Obligation. Cela important mentaire doit être strictement Instructions instructions Suivi Pflicht. Diese Wichtige Betrieb- Informationen. sanweisung Zusätzliche Infor- Anweisungen müs- oder Gebrauchsan- mationen sen strikt befolgt... -
Page 6: Declaración De Conformidad
Operation Manual DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY EXEL ACOUSTICS SL CL Encinar, 282. Polígono Industrial Monte Boyal. 45950 – Casarrubios del Monte (Toledo), España (Spain). Declara que el producto SW-221 y sus respectivas opciones, cumple con las Directivas: Declare under our sole responsibility that devices in the SW-221 range of products, comply with relating Directives: (1) Directiva de Baja Tensión - 2006/95/CE (2) Directiva de Compatibilidad Electromagnética - 2004/108/CE... -
Page 7: Table Of Contents
Operation Manual Table of Contents IMPORTANT SAFE INSTRUCTIONS ________________________ 4 SYMBOL USED _________________________________________ 5 DECLARACIÓN DE CONFORMIDAD ________________________ 6 DECLARATION OF CONFORMITY _________________________ 6 1. INTRODUCTION ______________________________________ 8 1.1. Welcome to Tecnare ___________________________ 8 1.2. Overview the SW-221Subwoofer __________________ 9 1.3. -
Page 8: Introduction
Introduccion SW-221 1. INTRODUCTION 1.1. Welcome to Tecnare Thank you for choosing the high-quality Tecnare® SW-221 System “Made in Spain” from EXEL ACOUSTICS SL. Please spare a little time to study the contents of this manual, so that you obtain the best possible performance from this unit. -
Page 9: Overview The Sw-221Subwoofer

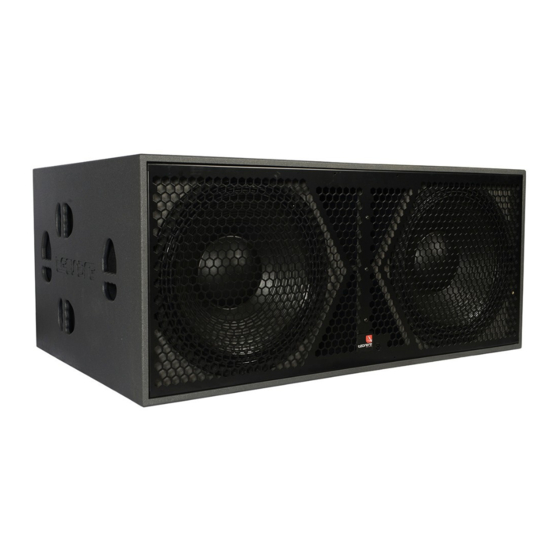

Introduccion SW-221 1.2. Overview the SW-221Subwoofer The Tecnare® SW-221 is a high power, high output low frequency system that sets a new standard in the sound reinforcement. It can be used to supplement any Tecnare subwoofer system and extend the low frequency response down to 27 Hz. -
Page 10: Processing And Amplification
Amplification 1.4.2. To power Sub Series, Tecnare recommends amplifiers with the power ratings enough to feed the loud- speakers. For high power or live applications, it is recommended to oversize the amplifiers relative to the nominal AES output of the subwoofers. In certain specific cases it is possible to slightly under-power the subs or loudspeakers as long as the amplifier will not be driven to its limits. -
Page 11: Loudspeaker Setup
Loudspeaker Setup SW-221 2. Loudspeaker Setup 2.1. Standard Operation The standard operation corresponds to the use of subwoofers as single elements or as standard subwoofer arrays. In this configuration the system operates with an omni-directional or quasi-omni-directional directivity pattern. The (SW221_60) and (SW221_75) factory presets provide to the subwoofers an upper frequency limit at 60Hz and 75Hz respectively in order to optimize the coupling with main system or if other subwoofer are being used. -
Page 12: Cardioid Operation
Loudspeaker Setup SW-221 2.2. Cardioid Operation SW-221 subwoofer can be configured in cardioid arrays to reduce the amount of output heard behind the subwoofers. Subwoofer cardioid arrays are archived by placing three units coplanar to each other with one unit facing the opposite direction. -
Page 13: Loudspeaker Connection
Loudspeaker Connection SW-221 3. LOUDSPEAKER CONNECTION Tecnare® Sound Systems recommended operating the SW-221 loudspeaker together Tecnare loudspeaker controllers. Tecnare® only recommends using preset/amplifier developed by Tecnare, otherwise there is a risk of damag- ing the loudspeaker components. DP Series Loudspeaker Controller, PA Series amplifier and T-Series amplifier are ideal for this purpose. -
Page 14: Transport And Storage
Transport & Storage SW-221 4. Transport and storage As the Tecnare SW-221 loudspeaker weighs over 125kg (275,58 lbs), four people are needed to move and transport the unit. To transport the unit whit a single person, Tecnare recommends using the optional wheels on the rear of the unit. -
Page 15: Technical Specifications
Specifications SW-221 5. Technical specifications SW-221 HIGH-POWER BASS-REFLEX SUBWOOFER SPECIFICATIONS ACOUSTICAL 27Hz -90 Hz±4dB, measured on axys. 30Hz-80Hz Recommended operating frequency range. Operating Frequency Range 27Hz-75Hz Normal Mode; 27Hz-60Hz Infra Mode Response depends on loading conditions and room acoustics Axial Sensitivity 104 dB (1w/1m) Calculated SPL 139 dB continuous/145 Peak... - Page 16 Specifications SW-221 SW-221 Dimensions w w w . t e c n a r e . c o m Subwoofer Series | rev.:2.1...
- Page 17 Operation Manual SW-221 Subwoofer Series | rev.:2.1 w w w . t e c n a r e . c o m...
- Page 18 SW-221 Reinventing The Rules ©2019 Tecnare Sound Systems. All rights reserved. SW-221 Operation manual The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Exel Acoustics SL. Exel Acoustics assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
- Page 19 EXEL ACOUSTICS SL CL Encinar, 282 - Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (To) Spain support@tecnare.com www.tecnare.com - www.facebok.com/tecnare (T): +34 918 170 110 - +34 918 171 001 (F): +34 918 183 053 rev.:2.10 2019...
