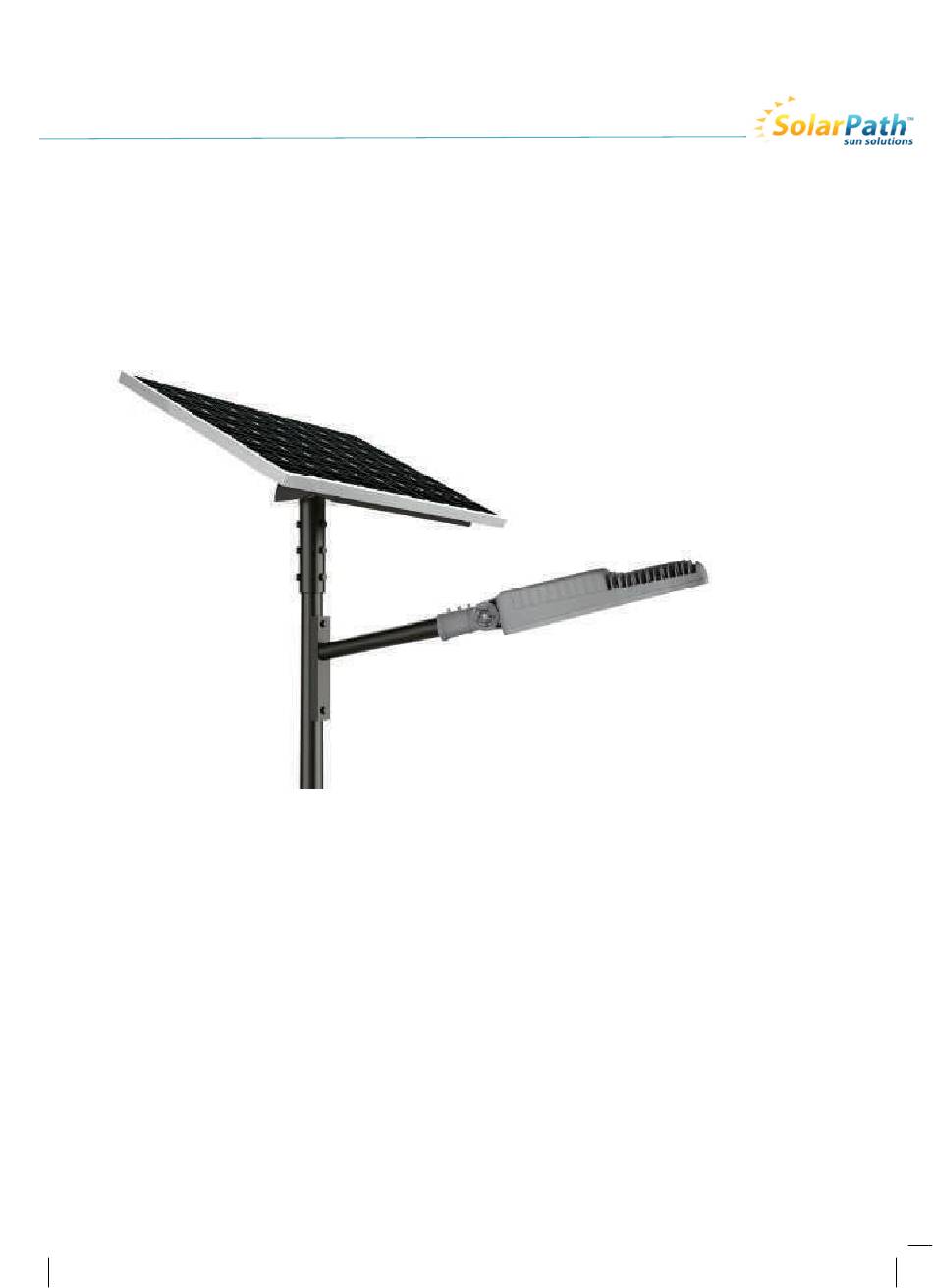

  • Page 1 USER MANUAL HIGHLIGHT-NPSL...

  • Page 3: Packaging Details

    USER MANUAL The following symbols are used in this manual to indicate potentially dangerous conditions or mark tent safety instructions. WARNING NOTE There are no user serviceable parts inside the light. Disconnect the solar module to unmount the light if required. Packaging Details (Only when provided as full set) 1.
  • Page 4 USER MANUAL (1) Solar Panel (2) Bracket (3) cable from solar panel (4) Pole adapter (5) Screws (6) 2M cable adapter (7) Steel Pole (8) Light arm (9) Light head...
  • Page 5 USER MANUAL Let -(3) MC4 cables go through- (5) pole adapter Insert- (4) MC4 cable adapter from top of pole and get it out from the side hole of ( 7) steel pole Put the MC4 cable adapter into (8) light arm from A side to B side Fix (8) light arm to (7) steel pole by screws Connect the MC4 connectors of ( 3 ) MC4 cables from solar panel Put (5) pole adapter ( panel and bracket are fixed on...
  • Page 6 USER MANUAL 3. The smart solar led light is now ready for use. for the maintenance and transport. 6. Do not remove or dismantle the MC4 Connectors or try to plug in the light as the polarity can go wrong IN CASE OF DAMAGE OF LIGHT. the warranty.
  • Page 8 USER MANUAL Light Fixture Dimension...
  • Page 9 USER MANUAL Safety First – CAUTION NOT TO SCRATCH THE PANEL SURFACE AND ALSO NOT TO DAMAGE THE CABLE AND THE CONNECTOR Cleaning Process Running Water or Wet the Surface you can apply water on the panel surface. If you have a pressure wash the panel surface.
  • Page 10 Solar Panel Maintenance Instructions Tips for cleaning solar panel glass For safety reasons, it's also wise to clean your panels from the ground if possible. A good quality soft brush and a squeegee with a plastic blade on one side and a cloth covered sponge on the other coupled with a long extension can make for the perfect tools allowing you to stay on the ground.
