th
8659 148
Ave. SE Cayuga, ND 58013 Phone: 866‐462‐4226 Fax 877‐828‐9479 www.dakotamicro.com
1)
This adaptor cable is similar to the DMAC/DMOV‐CNH1 kit (kit includes DMAC/DMOV‐DVR‐P and 12v power adaptor), but has leads that allow
for the input of two additional cameras, making for a total of 3. For the purposes of this document, we will refer to the connector that features
BNC Male as "Video 1" and the two additional leads as "Video 2" (white wire) and "Video 3" (black wire)
2)
This adaptor requires the user to input power from a separate power source (12v power adaptor included).
3)
The length of this adaptor cable is 70"
4)

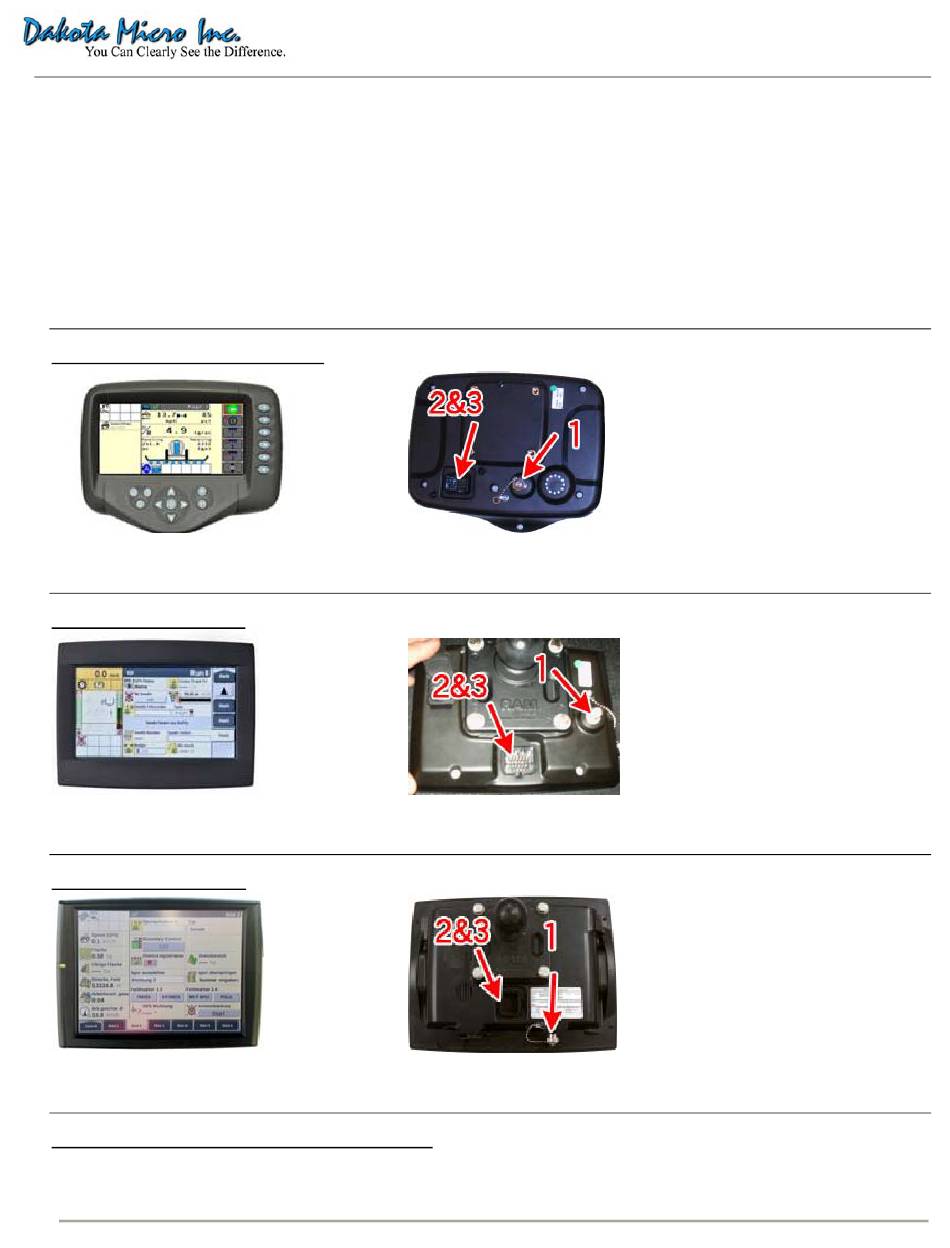

The CNH monitors that this adaptor hooks up to are:
Case AFS Pro 200/New Holland IntelliView II
Monitor Front
Case AFS Pro 300/IntelliView III
Monitor Front
Case AFS Pro 700/IntelliView IV
Monitor Front
The Case AFS Pro 600/IntelliView Plus II is NOT video capable.
If you're all still with me....I'll continue on.
Author: CNR
Monitor Back
Monitor Back
Monitor Back
Rev: 09/12/2011
Title: DMAC DMOV‐CNH3 Training Guide
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dakota Micro DMAC-CNH3
Summary of Contents for Dakota Micro DMAC-CNH3
- Page 1 Title: DMAC DMOV‐CNH3 Training Guide 8659 148 Ave. SE Cayuga, ND 58013 Phone: 866‐462‐4226 Fax 877‐828‐9479 www.dakotamicro.com This adaptor cable is similar to the DMAC/DMOV‐CNH1 kit (kit includes DMAC/DMOV‐DVR‐P and 12v power adaptor), but has leads that allow for the input of two additional cameras, making for a total of 3. For the purposes of this document, we will refer to the connector that features BNC Male as “Video 1” and the two additional leads as “Video 2” (white wire) and “Video 3” (black wire) This adaptor requires the user to input power from a separate power source (12v power adaptor included). The length of this adaptor cable is 70” The CNH monitors that this adaptor hooks up to are: Case AFS Pro 200/New Holland IntelliView II Monitor Front Monitor Back Case AFS Pro 300/IntelliView III Monitor Front Monitor Back Case AFS Pro 700/IntelliView IV Monitor Front Monitor Back ...
- Page 2 Title: DMAC DMOV‐CNH3 Training Guide These CNH3 adaptors are 70” long and look like this: Camera Input (AgCam shown) Video 3 (pin to be inserted into 26 pin bulkhead connector) output to CNH Monitor (white) Video 2 (pin to be inserted into 26 pin bulkhead connector) output to CNH Monitor ( black) Video 1 (BNC Male) output for back of CNH Monitor Power Input Video 2 & 3 Outputs. To hook the Video 2 & 3 outputs into the CNH monitors, you will need to take apart the 26 pin square bulkhead connector that goes into the back of the monitor. This connector looks like this: We HIGHLY RECOMMEND that you have your dealer perform this task. If you pull any of the other pins out of position while installing this cable, DM is not responsible for informing you how and where to put them back into their appropriate position. As much as Dakota Micro would love to be able to tell you which wires go where, wire colors and locations very dependent upon the type of equipment and usage. We recommend you take notes on which pin holds which wire color (IE: Pin 3=brown) for your own reference should you require it. Author: CNR Rev: 09/12/2011 Page 2 of 4...
- Page 3 Title: DMAC DMOV‐CNH3 Training Guide To release the pin lock: Press the white locking tab on the top of the connector (identified with the arrow on photo below) with a firm object. Items such as a screwdriver or a coin work well. This will release ALL of the pins…don’t pull any out, DM is not responsible should you do so!! Insert you video 2 & 3 pins into the appropriate socket (make sure all your pins are firmly seated) White Wire = Video 2: Insert into socket 8 Black Wire = Video 3: Insert into socket 16 To re‐lock pins: Firmly press the dual re‐lock tabs on the backside of the connector The DMOV‐CNH3‐C1 Kit is available for OverView ONLY WITH an OverView camera, 20 meter power/video cable and 12v power adaptor. PN for this kit is: DMOV‐CNH3‐C1. Aside from having the 4‐pin OverView connectors on the camera input side (1 above) the adaptor functions the same way. As with all our other adaptor cables, warranty on this item is 1 year. Author: CNR Rev: 09/12/2011 Page 3 of 4...
- Page 4 Title: DMAC DMOV‐CNH3 Training Guide This item will be available to all customers/dealers/OEM’Kit information is as follows: Product Detail Part Number Photo AgCam Female to CNH IntelliView Adaptor‐ 3 cameras. Kit allows for input of up to 3 AgCam cameras into AFS Pro & New Holland IntelliView monitors. Includes Cable & 12v power adaptor. DMAC‐CNH3 DEALER INSTALL STRONGLY RECOMMENDED Weight: >1 lb. OverView Single Camera to Case IH AFS Pro & New Holland IntelliView monitors. Includes adaptor, OverView camera, and 20M cable DMOV‐CNH3‐C1 DEALER INSTALL STRONGLY RECOMMENDED Weight: 3lbs Anything I missed please don’t hesitate to ask, we are always happy to help. Author: CNR Rev: 09/12/2011 Page 4 of 4...
