Safco Picco 1953 Manual

Sort and count your parts!

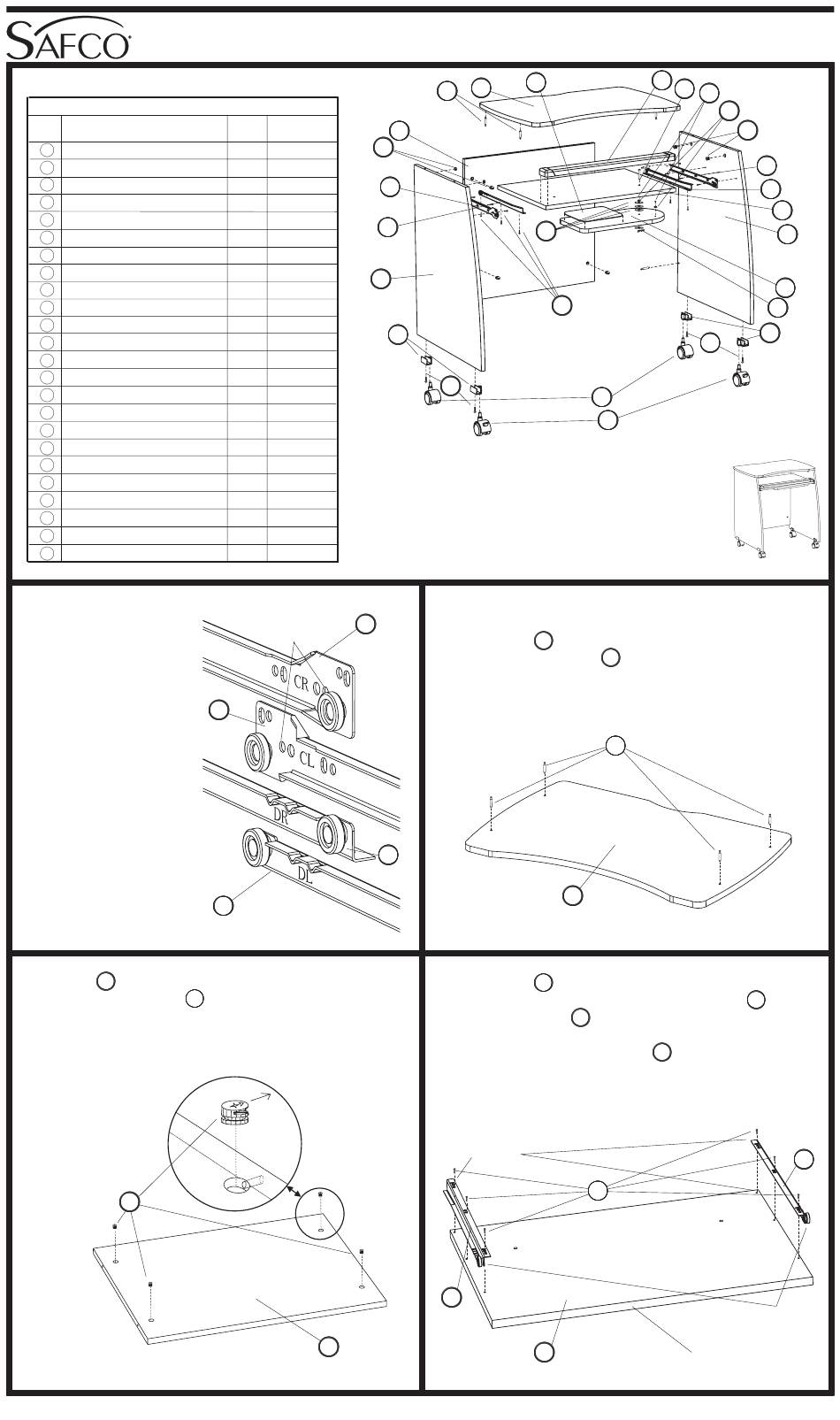

PARTS LIST

LETTER
DESCRIPTION
CODE
A
Top Panel
B
Screw Post
C
Back Panel
D
Locking Cam
E
Keyboard Shelf
F
Left Shelf Rail
G
Right Shelf Rail
H
Small Flat Head Screw
I
Left Side Panel
J
Right Side Panel
K
Left Cabinet Rail
L
Right Cabinet Rail
M
Large Screw
N
Caster Bracket
O
Caster without Brake
P
Caster with Brake
Q
Small Pan Head Screw
R
Bumper
S
Mouse Tray
T
Clevis Pin
U
Plastic Washer
V
Hairpin Cotter
W
Mouse Pad
X
Wrist Rest
Properly identify the
four types of rails
used!
The Cabinet Rails (K,
L) have C-shaped
cross sections; rollers
are at the FRONT, and
the Left Cabinet Rail is
stamped "CL" near the
roller, while the Right
Cabinet Rail is
stamped "CR".
The Shelf Rails (F, G)
have Z-shaped sec-
tions; rollers are at the
BACK, and they are
stamped "DR" for
Right and "DL" for Left.
2
Lay the C Back Panel down with the large holes
facing up. Insert four D Locking Cams, with the
arrows pointing toward the nearest SIDE edge.
D
1953-37: 1 of 2; Rev. 1; 08/02
Picco Computer Workstation
TM
QTY. PART NO.
1 1953-01
8 HFFMFB
1 1953-04
8 HFFMFC
1 1953-07
1 1970-17
1 1970-18
12 1902-23
1 1953-02
1 1953-03
1 1970-15
1 1970-16
4 8917-27
4 8917-10
2 8917-25
2 8917-24
2 1951-23
2 1951-28
1 1951-08
1 1951-26
4 1951-31
1 1951-27
1 1951-11
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
1 1972-10
USE THIS HOLE
FOR FRONT
SCREW
K
F
C
Safco Products Company, New Hope, MN 55428
A
B
C
D
K
F
I
N
M
TOOLS REQUIRED: Phillips Screwdriver
(Two People Recommended)
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
(English-speaking operators)
1
Work on a smooth, clean surface.
L
Locate the A Top Panel and position it with the
holes up. Insert four B Screw Posts into the holes,
and tighten with a screwdriver (do not overtighten!)
G
3
Locate the E Keyboard Shelf and position it with the
holes along the edges facing up. Fasten a F Left
Shelf Rail and a G Right Shelf Rail (Z-shaped ends)
at the sides of the Shelf, with the rollers toward the
BACK of the shelf. Use three H Small Flat Head
Screws per Rail.
RAIL FLUSH
WITH SHELF
FRONT
F
NUMBER
X
W
T
U
H
O
P
B
A
H
E
1953
MODEL
Q
R
D
L
G
E
J
S
V
N
M

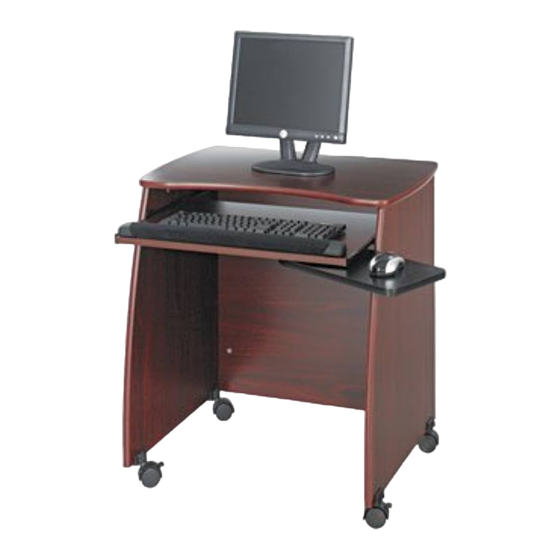

ASSEMBLED
UNIT
MODEL 1953
G
ROLLERS
BACK EDGE OF
SHELF
