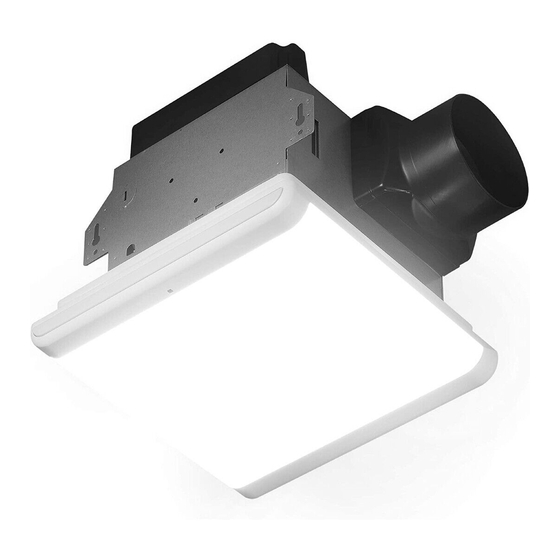

SmartVent
™
BATHROOM
VENTILATION FAN
MODEL 7146-80-MS
Español p. 13
FCC ID:SYJ7146-80-MS
Questions, problems, missing parts? Before returning to the store, call our customer
service department at 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday.
READ AND SAVE THESE INSTRUCTIONS
08-26-2019
HomewerksWW.com
Advertisement
Table of Contents
Related Manuals for HomeNetWerks SmartVent 7146-80-MS
Summary of Contents for HomeNetWerks SmartVent 7146-80-MS

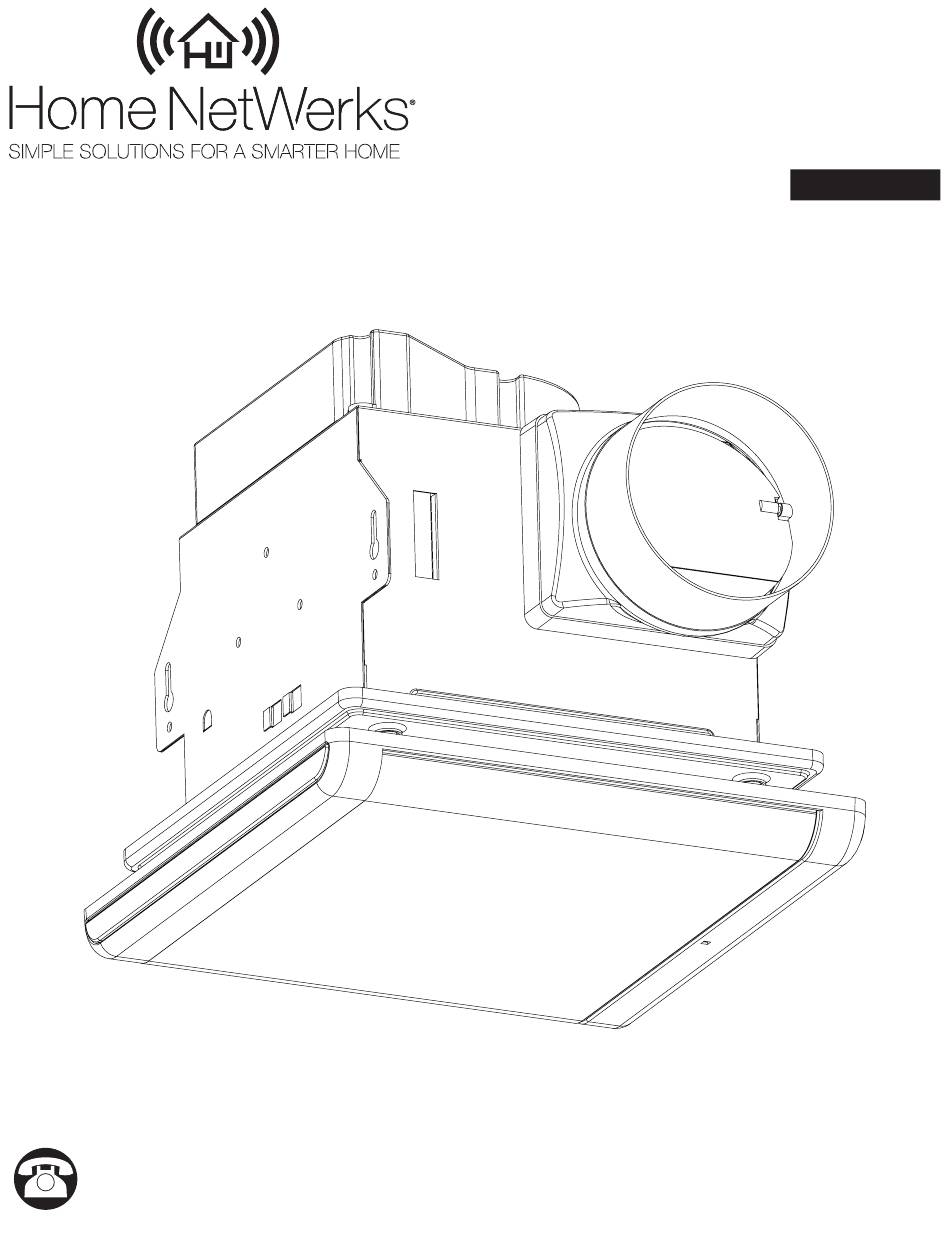

- Page 1 SmartVent ™ BATHROOM VENTILATION FAN MODEL 7146-80-MS Español p. 13 FCC ID:SYJ7146-80-MS Questions, problems, missing parts? Before returning to the store, call our customer service department at 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday. READ AND SAVE THESE INSTRUCTIONS 08-26-2019 HomewerksWW.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Specifications ........................2 UL Compliance ...........................2 Package Contents ..........................3 Hardware Included ..........................3 Safety Information ..........................4 Preparation ............................4 New Construction Installation Instructions..................6 Existing Construction Installation Instructions ..................8 Care and Cleaning..........................11 Troubleshooting ..........................12 Warranty ............................12 PRODUCT SPECIFICATIONS Airflow: 80 CFM LED light power consumption: 15W 120V, 60Hz LED light brightness: 800 lumens... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION PART DESCRIPTION Fan Housing LED Wall Switch Grille with LED Lights HARDWARE INCLUDED (not actual size) Wood Screw M4 x 30 Qty. 8 HomewerksWW.com... -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or installthe product. • Always disconnect the power supply prior to servicing WARNING: To reduce the risk of fire, electric the fan, motor or junction box. shock, or injury to persons, observe the following: •... - Page 5 PREPARATION Before removing your current ventilation unit, verify your switch box on the wall has the required supply wires necessary for this installation. These supply wires are power/black and neutral/white (refer to right side of wiring diagram below) at the switch. If you do not see both of these wires, consult a licensed electrician. Check area above installation location to be sure that wiring can run to the planned location and that duct work can be run and the area is sufficient for proper ventilation.
-
Page 6: New Construction Installation Instructions
NEW CONSTRUCTION INSTALLATION INSTRUCTIONS BEFORE INSTALLATION WARNING: RISK OF ELECTRIC SHOCK. Ensure the electricity to the wires you are working on is shut off. Either remove the fuse or turn off the circuit breaker before removing the existing bath fan or installing the new one. - Page 7 NEW CONSTRUCTION INSTALLATION INSTRUCTIONS 5. Remove the wiring cover. Pull the house wires through the wiring cover hole. Using the attached quick connectors, Wiring connect 120v house wiring to the fan as shown in the wiring cover diagram on page 5. 12-18 AWG is the smallest conductor that should be used for branch circuit wiring.
-
Page 8: Existing Construction Installation Instructions
EXISTING CONSTRUCTION INSTALLATION INSTRUCTIONS BEFORE INSTALLATION WARNING: RISK OF ELECTRIC SHOCK. Ensure the electricity to the wires you are working on is shut off. Either remove the fuse or turn off the circuit breaker before removing the existing bath fan or installing the new one. - Page 9 EXISTING CONSTRUCTION INSTALLATION INSTRUCTIONS 5. Slide the grille mounting brackets to the left and remove them from the fan housing (A). Remove the three prong fan plug from the fan housing (A) and pull the black fan motor straight out of the metal fan housing (A). Mounting brackets plug...
- Page 10 EXISTING CONSTRUCTION INSTALLATION INSTRUCTIONS 9. Fit the fan motor back into the fan housing (A), aligning with the duct opening. Replace the grille mounting brackets and secure with screws removed earlier. Insert the fan plug back into the housing (A). motor plug Mounting...
-
Page 11: Care And Cleaning
CARE AND CLEANING CAUTION: Before attempting to clean the fixture, disconnect the power to the fixture by turning the breaker off or removing the fuse from the fuse box. • See safety information before proceeding. Routine maintenance should be done at least once a year. •... -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The fan seems louder than it The CFM is too great. Be sure the CFM rating on the fan matches the should. square footage of your room. The damper is damaged or not working properly. Check the damper to ensure it is opening and closing properly.
