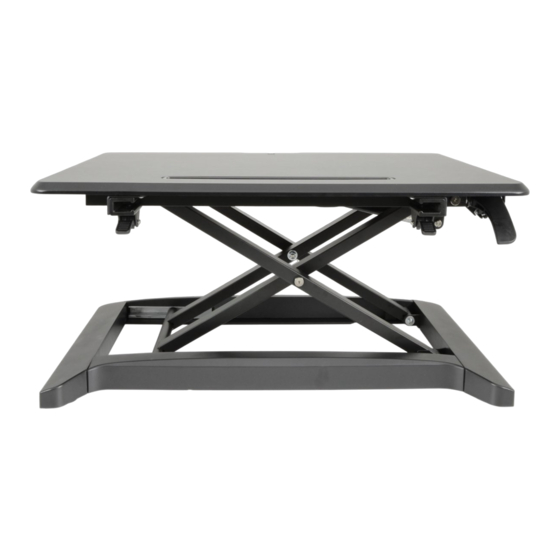

Item No.：DWS1
Installation guide
Technical Data
Max
3 -1 5K G
Max
2KG
Accessory Package List
No.
Spare part
No.
A
B
x1
No.
Spare part
D
x1
TOOLS
Table cover size:
>950mm
Please do not exceed the
maximum WARNING bearing weight
WARNING
Loading range
Height adjustment range
Spare part
No.
Spare part
C
x4
x1
ASSEMBLY STEP 1
ASSEMBLY STEP 2
>610mm
3~15Kg
120-450mm
Hang the keyboard shelf carefully onto
the mounting brackets and secure both
sides using the locking levers
a
c
Please remove all packaging and place the
+
workstation carefully on a suitable surface
To remove the keyboard shelf unlock
both levers and slide away from the
b
main unit
Caution: The workstation is heavy
so please handle with care and
always use 2 persons when moving
Careful
to avoid damage or personal injury
b
Advertisement
Summary of Contents for AV Link DWS1
- Page 1 ASSEMBLY STEP 1 Item No.：DWS1 Installation guide Please remove all packaging and place the workstation carefully on a suitable surface Caution: The workstation is heavy so please handle with care and always use 2 persons when moving Careful to avoid damage or personal injury...
- Page 2 ASSEMBLY STEP 3 Please read the instructions carefully and take special note of the warnings below before use To adjust to the desired height take a firm grip on the worktop and press the adjustment lever on the right hand side. Take care when adjusting with a lighter Please keep your hands away from the mechanism underneath load as it will adjust up quickly and could...
