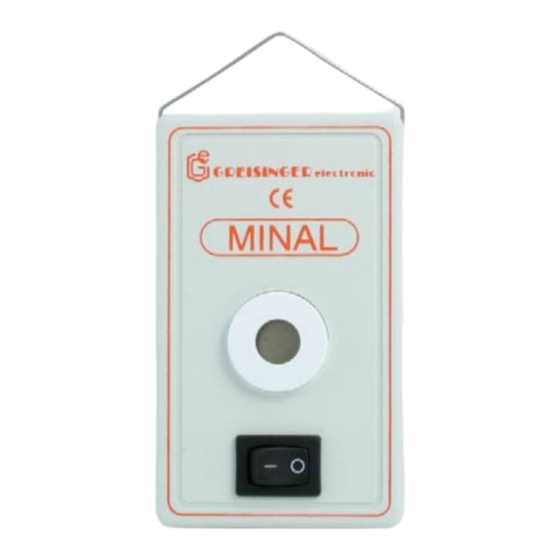

GREISINGER MINAL 182 BN Operating Manual

S53.0.0X.6C-01
MINAL 182 / 282 BN

1 Application

• Water detector in basement, store rooms, etc.
• Water detector for monitoring washer / dishwasher (cracked
hoses), leakage piping, etc.
• Rain detector (e.g. by open skylight, for cabriolet holder, etc.)
• Coverage door of flat (via key-operated switch also focusing
from the outside)
• Break-in alarm for home, car and camping
• Fire alarm (by overheating-sensor)
• Temperature detector (e.g. anti-freeze)
• Oil / water and temperature monitoring in car
• Level monitor for tank, aquariums, swimming pool etc.

2 Specification

Sensor:
Alarm device:
Switch:
Power supply:
at MINAL282BN additional:
Current consumption:
Working temperature:
Storage temperature:
Dimensions:
Weight:
EMV:
GREISINGER
D - 93128 Regenstauf, Hans-Sachs-Straße 26
℡ 09402 / 9383-0,
Operating manual
Miniature alarm device
2.5mm phone jack for connection of any sensor
extra loud piezo-alarm, >100dB at 1m
rocker switch for tightening and alarm extinguishing
9V-battery, type 6F22 (included in scope of delivery)
mains socket (3.5 mm phone jack) for Uv = 9-12 VDC
no power consumption under less alarm sounded,
at alarm: <40 mA
0 ... 50 °C
-20 ... 70 °C
100 x 60 x 26 (29) mm (H x W x D)
approx. 105 g (incl. battery)
The device corresponds to the essential protection ratings established
in the Directives of the European Parliament and the council on the ap-
proximation of the laws of the member states relating to the electro-
magnetic compatibility (2004/108/EG). Additional error: <1%
09402 / 9383-33, www.greisinger.de
electronic GmbH
Page 1 of 2
