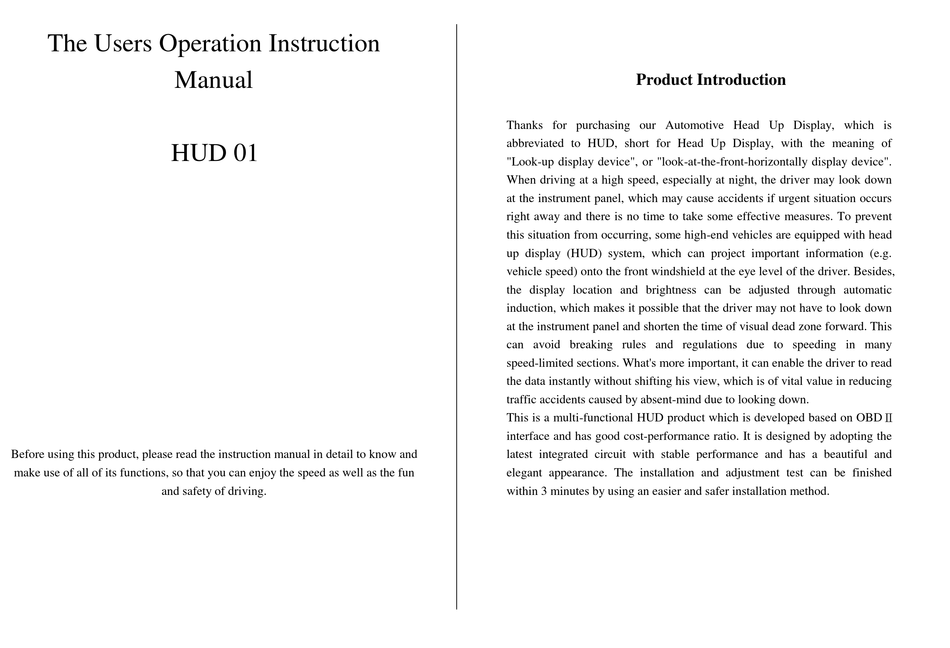

The Users Operation Instruction
Manual
Product Introduction

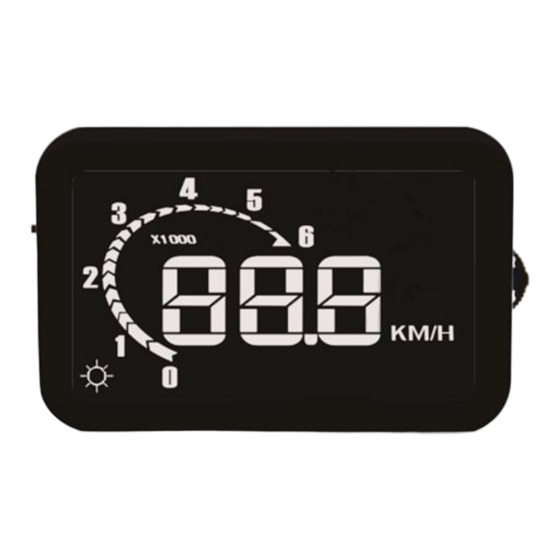

Thanks for purchasing our Automotive Head Up Display, which is
abbreviated to HUD, short for Head Up Display, with the meaning of
HUD 01
"Look-up display device", or "look-at-the-front-horizontally display device".
When driving at a high speed, especially at night, the driver may look down
at the instrument panel, which may cause accidents if urgent situation occurs
right away and there is no time to take some effective measures. To prevent
this situation from occurring, some high-end vehicles are equipped with head
up display (HUD) system, which can project important information (e.g.
vehicle speed) onto the front windshield at the eye level of the driver. Besides,
the display location and brightness can be adjusted through automatic
induction, which makes it possible that the driver may not have to look down
at the instrument panel and shorten the time of visual dead zone forward. This
can avoid breaking rules and regulations due to speeding in many
speed-limited sections. What's more important, it can enable the driver to read
the data instantly without shifting his view, which is of vital value in reducing
traffic accidents caused by absent-mind due to looking down.
This is a multi-functional HUD product which is developed based on OBDⅡ
interface and has good cost-performance ratio. It is designed by adopting the
Before using this product, please read the instruction manual in detail to know and
latest integrated circuit with stable performance and has a beautiful and
make use of all of its functions, so that you can enjoy the speed as well as the fun
elegant appearance. The installation and adjustment test can be finished
and safety of driving.
within 3 minutes by using an easier and safer installation method.
