- Page 1 Instrument description Starrsed ST Service Manual general index Starrsed ST Service information: Starrsed Parts catalogue ST_Parts.pdf Starrsed ST Service manual Page 1 Version <Book_version> MRN-<MRN_number>-<language_code>...
- Page 3 Postal address: 1620 AE Hoorn The Netherlands De Corantijn 13 Office address: 1689 AN Zwaag The Netherlands © Copyright RR Mechatronics Manufacturing B.V. All rights reserved. Subject to changes without prior notice. Issued by the Support Department of RR Mechatronics...
- Page 5 0.02 May 2012 H.E. van MRN141 and the Drawing Dijk manual MRN142 are incorporated 0.01 August 2011 H.E. van Dijk • Start of the manual 0.00 August 2010 H.E. van Dijk Starrsed ST Service manual Page 3 Version <Book_version> MRN-<MRN_number>-<language_code>...
-
Page 7: Table Of Contents
Label information sensors ................28 GENERAL SAFETY INSTRUCTIONS ................ 30 4.1. Explanation of symbols ..................31 INSTALLATION ......................32 5.1. Unpacking <Instrument> system ................32 5.2. Install at chosen location ..................32 INDEX......................... 33 Starrsed ST Service manual Page 5 Version <Book_version> MRN-<MRN_number>-<language_code>... -

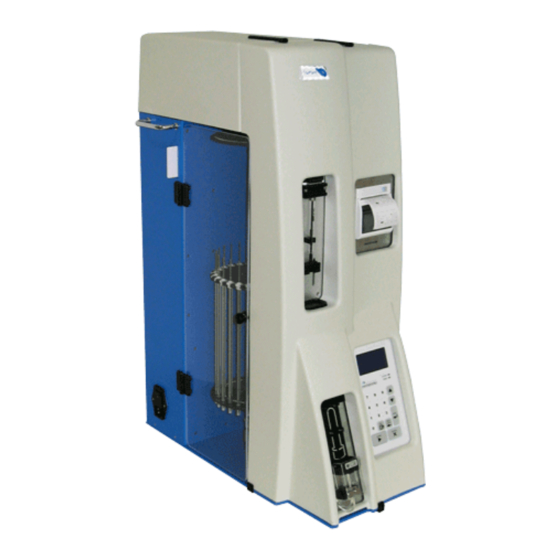

Page 8: Instrument Description
Chip card system. • Barcode reader for sample identification. • Serial / parallel interface. • Easy accessible keypad with light key pressure due to piezo technology. • Battery backup memory. • Accessories kit. Page 6 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>... - Page 9 Contents Starrsed ST Service manual Page 7 Version <Book_version> MRN-<MRN_number>-<language_code>...
-
Page 10: Chip Card System
The card reader is located on the left side of the <instrument>. Insert the chip card into the card reader with the printed side facing forward. The chip card is correctly inserted when it appears as shown in the picture: Page 8 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 11: Chip Card Type A To E
When this type of chip card is inserted in the card reader, a PIN code must be entered to unlock the protected menus. Starrsed ST Service manual Page 9 Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 12: Chip Card Type S
4711 Supervisor card 3964 Technician card 4711 Installation card 4711 n.a.= not applicable 1.2. Technical specifications Technical specifications for the <Instrument>: Model name Catalogue number (REF) Instrument model Starrsed ST BANG109000 Page 10 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>... - Page 13 Most commonly used brands/types. Sample tube types Closed tubes with concentric cap only. Total length: 73 ... 93 mm Body diameter: 11.5 ... 15.5 mm Cap diameter: 13 ... 18 mm Starrsed ST Service manual Page 11 Version <Book_version> MRN-<MRN_number>-<language_code>...
- Page 14 770 mm Height 23 kg Weight empty LIS connectivity: Serial, bi-directional according various protocols Communication Data storage: Battery back-up memory Storage medium Results and raw data of 896 samples Storage capacity Page 12 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>...
-
Page 15: Ce Mark
6. Manufacturer information and Date of manufacture 1.3. Accessories kit The <Instrument> comes with an accessories kit. For a complete list of the the contents of accessories kit, see Appendix - Article reference list Starrsed ST Starrsed ST Service manual Page 13... -
Page 16: Starrsed Line Of Esr Instruments
Starrsed ST, Starrsed RS, Starrsed RL and Starrsed TL are instrument names of RR Mechatronics. Until 2014 the Starrsed ST was called Inversa 24M, the Starrsed RS was called AutoCompact, the Starrsed RL was called Interrliner (Standalone). RR Mechatronics changed the product names to benefit better from the worldwide recognizability of the brand name Starrsed. -
Page 17: General Introduction
Block diagrams <Instrument> (on page 21) • FAQ index page • Visual board reference <Instrument> (on page 23) • General electronics board information <Instrument> (on page 25) • General Motor and Sensors information (on page 27) Starrsed ST Service manual Page 15 Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 19: How To Use The Service Manual
A combination of the Trouble shooting in the User manual of the instrument and extra trouble shooting on engineer level. 12. Useful and previous information about the assembly. Extra useful and previous information about hardware and adjustments on the assembly. 13. Applicable drawings from the assembly. Starrsed ST Service manual Page 17 Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 20: Explanation Of Available Documentation
4. Installation Manual (IM) Intended for trained service engineers. Contains instructions and procedures for installation and start-up. Only available in English. Manuals are available in PDF and HTML-format and can be downloaded from http://www.rrmechatronics.com. Page 18 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 21: Trouble Shooting Information
General introduction 3.3. Trouble shooting information Here all kind of existing trouble shooting what cannot be captured by FAQ's or which are not mentioned at all in the service or user manual. Starrsed ST Service manual Page 19 Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 23: Block Diagrams
Block diagram Measure unit Block diagram Nozzle unit Label information motors and valves Label information sensors (on page 28) Inversa Flow Block diagram Nieuwe links > > Block diagram Drive unit Starrsed ST Service manual Page 21 Version <Book_version> MRN-<MRN_number>-<language_code>... - Page 24 Gripper is closed. • Gripper sensors malfunction. • | malfunction. Carousel could not turn. Measure head not at home position. • ! malfunction. Carousel could not turn. Nozzle not at home position. • Page 22 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>...
-
Page 25: Visual Board Reference
General introduction 3.5. Visual board reference <Instrument> Appendix - PC Main board Starrsed ST Appendix - PCB Back panel board Starrsed ST Appendix - PC Keyboard Starrsed ST Starrsed ST Service manual Page 23 Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 27: General Electronics Board Information
• 3. Main Processor board. This board controls all the functions from the motors, sensors and valves. • 4. Keyboard control board. Controls the key path. • Controls the display. • Starrsed ST Service manual Page 25 Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 29: General Motor And Sensors Information
Remove the screws which hold the motor attached to the motor bracket. • Replace the motor and fasten the bolts. • Re-install and fasten the coupling. • Re-install the cable and connect the sensor onto the motor PC board. Starrsed ST Service manual Page 27 Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 30: Principle Of Motor With Sensors Attached
Re-install the sensor(s). • Re-install the motor connection and the sensor(s) connection(s). Note: "the coupling" can be a disk, a pulley or a mechanical connection to an assembly. 3.7.3. Label information sensors Page 28 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>... - Page 31 Measuring home sensor QEOP100005 Diluent level sensor BANG019006 X-Clean level sensor BANG019006 Gripper home sensor QEOP100005 Gripper close sensor QEOP100005 Needle home sensor QEOP100005 Needle bottom sensor QEOP100005 Temperature sensor on BANG080004 Starrsed ST Service manual Page 29 Version <Book_version> MRN-<MRN_number>-<language_code>...
-
Page 32: General Safety Instructions
• Safety protection is likely to be impaired if, for example, the instrument fails to perform the intended measurements or shows visible damage or unusual smells, smoke, liquids are flowing out. Page 30 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 33: Explanation Of Symbols
Warning sign to prevent personal injury due to hot surfaces. > Warning sign to prevent personal injury due to electrical shocks. General warning. General note. This symbol indicates a reference to this or other product documentation Starrsed ST Service manual Page 31 Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 34: Installation
6. Use a power connection with a proper earth connection. 7. Level the instrument by using the three adjustable feet and the leveling-gauge, which is situated at the carousel. Page 32 Starrsed ST Service manual Version <Book_version> MRN-<MRN_number>-<language_code>... -
Page 35: Index
Index 6. INDEX STARRSED LINE OF ESR INSTRUMENTS • Starrsed ST Service Manual general index • 1 Accessories kit • 13 Technical specifications • 10 Trouble shooting information • 19 Block diagrams <Instrument> • 15, 21 Unpacking <Instrument> system • 32 CE Mark <Instrument>...
