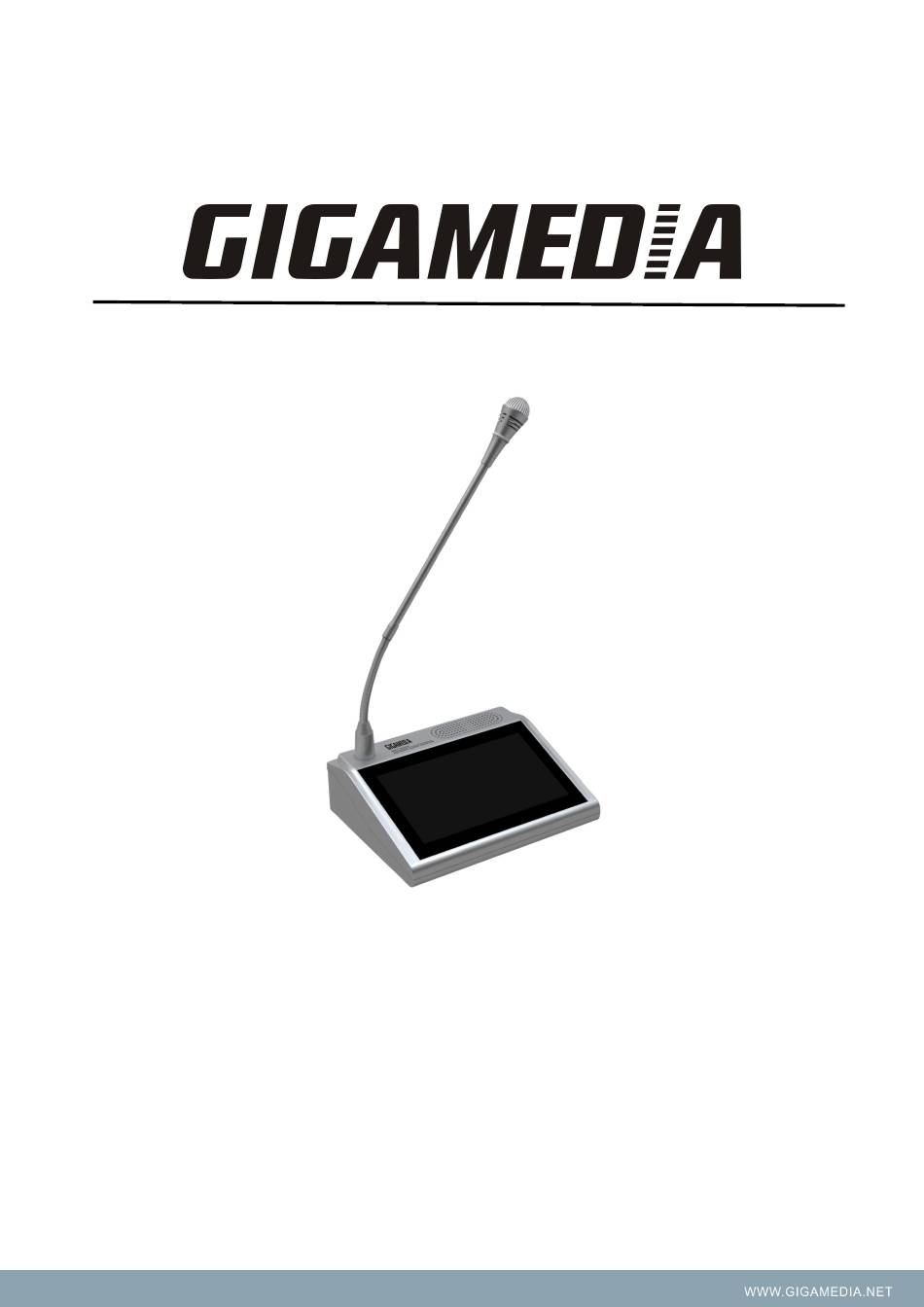

- Page 1 IP NETWORK TALKBACK TERMINAL GGM IPAMIC User Manual Before using the system, please read this manual first...
- Page 2 Important Instruction warning To ensure the safety and reliability of equipment and personnel during the process of installation, use and maintenance, please observe the following items: ● If you find out any of the following unusual situation during the using process, please immediately turn off power, plug out and quickly contact your nearest dealer.
-
Page 3: Table Of Contents
Contents Foreword..............................4 1. Product Introduction..........................5 2. Features..............................5 3. Nomenclature and Functions.......................6 4. System Connection Diagram....................... 7 5. Operating Instruction..........................7 6. The principle block diagram....................... 10 7. Performance Technical Parameters....................11 8. Common Fault Handling........................12 - 3 -... -
Page 4: Foreword
Foreword 《IP network talkback terminal product user manual》mainly introduces the GGM IPAMIC IP network talkback terminal operation method, and the main performance parameters, common fault solution. This manual is only as the user operation instructions, not for maintenance purposes.Since the issue date, if the function or related parameters changed, will be supplementary instruction, can enquire from the dealer in details. -
Page 5: Product Introduction
1. Product Introduction It suitable for all kinds of call center, alarm center, duty room, leader office, conference room, etc, it can be variety of terminals of network in intercom calling(one-way to point, the partition or all zone, two-way intercom or monitor. 2. -
Page 6: Nomenclature And Functions
3. Components and Functions Line IN/OUT Microphone Short-Circuit IN/OUT 3.5mm MIC Input Line IN/OUT Build-in Monitor Speaker LCD Screen Earphone Input Power IN Standby Power On/Off interface Interface ● Paging console: Microphone input. ● Built-in monitor speaker: to monitor the voice in the intercom environment. ●... -
Page 7: System Connection Diagram
4. Connection Diagram of the System 5. Operation Instructions Terminal Configuration Connect with the LAN IN interface and the network interface or switcher with the network cable. Open the file “IP software” in PC and select to run the procedure “Run the server”. Then, select to run the procedure “configure IP address”. - Page 8 If it is necessary to amend the IP address of the terminal according to the requirement of system configuration, then you can amend the “IP address” in the dialogue window or press “next” button (on the basis of existing IP address +1 ascending order ) As shown blow figure 3, after setting the corresponding parameters, click “edit”...
- Page 9 ① Login: When the server is succeed to connect with the terminal, it will show” Connected”, When the server is out off connection with the terminal, it will show: “not connected” ② IP setting: It is mainly used for look up terminal information, such as terminal IP address, subnet mask, gateway and the server address, if you need configure the terminal IP, please configure on the PC software on the server.
-
Page 10: The Principle Block Diagram
6. Devices diagram Power input - 10 -... -
Page 11: Performance Technical Parameters
7. Technical Parameters Model GGM IPAMIC Network interface Standard RJ45 input Support protocol TCP/IP, UDP, IGMP Multicast Audio format MP3/MP2 Sampling frequency 8K~48KHz Transmission rate 100Mbps Audio modes 16 bit stereo with CD sound quality Display screen size 7 inch... -
Page 12: Common Fault Handling
8. Troubleshooting Dealing Methods Why cannot call out or paging through other terminals? The reason is that the called or intercom terminal is receiving a higher priority task. Need to operate after the other side end to finish the task or contact your administrator to improve the task priority. - Page 13 IP Network Talk back Terminal VersionV0.1...
