PWT-07
MANUAL

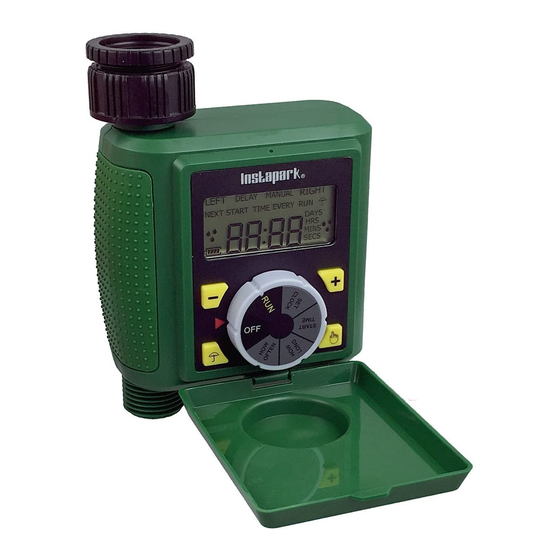

Digital Programmable Water Timer
Follow the instructions below to operate your Water Timer. Do
not use wrenches or pliers to tighten the tap adapter.

Specifications:

• Working Voltage: 3V (2pcs 1.5V AA alkaline batteries)
• Standby Current: <100UA
• Drive Mode: Impulse Solenoid Valve
• Working water pressure: 0.5-8bar
• Water proof level: IP66

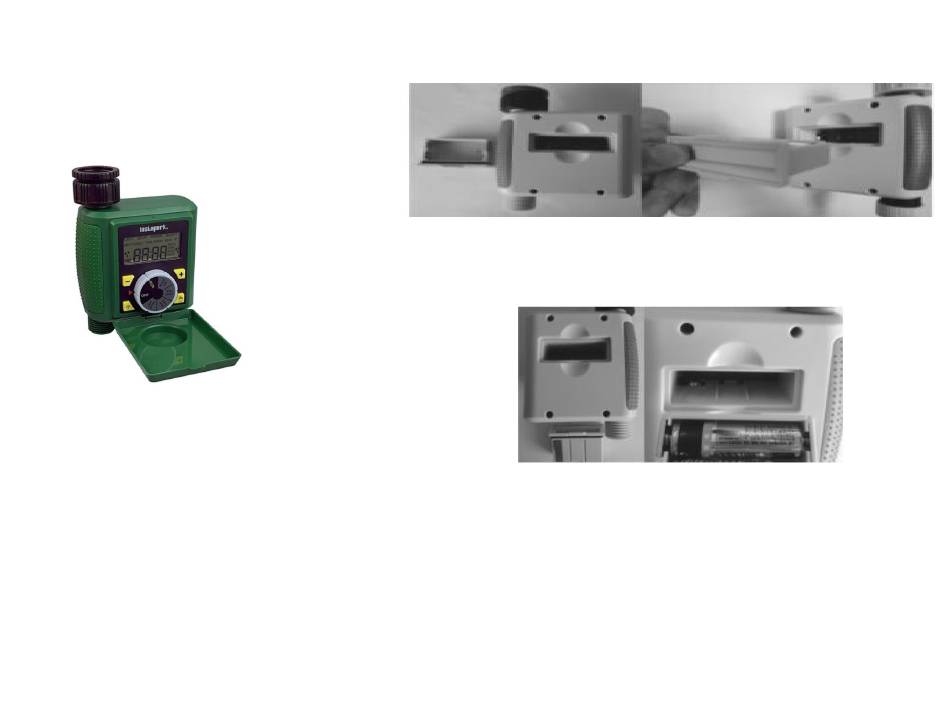

Battery Installation:

• Remove the battery housing from the back of the timer
• Install 2 x 1.5V new alkaline batteries
Reinsert the battery housing, ensuring the grooves on the housing and
internal section match up. Once the housing is correctly in position, your
timer is ready for use.
Note: There will be a 1 to 5 seconds delay before the timer starts to work.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PWT-07 and is the answer not in the manual?

Questions and answers

Randy
April 4, 2025

Which is the water inlet…top or bottom ?

0
1 comments:
Mr. Anderson
April 4, 2025

The water inlet on the Instapark PWT-07 is at the top.

This answer is automatically generated

0

Summary of Contents for Instapark PWT-07

  • Page 1 Battery Installation: PWT-07 MANUAL • Remove the battery housing from the back of the timer • Install 2 x 1.5V new alkaline batteries Digital Programmable Water Timer Follow the instructions below to operate your Water Timer. Do not use wrenches or pliers to tighten the tap adapter.
  • Page 2 Page 1 of 3 Programming Instructions: Setting the Clock 1. Turn the dial to the “SET CLOCK” position 2. The clock functions in 24hr mode. Press “+” button or “-“ button to select the correct time ( If you press and hold the “+” or “-“ buttons, the numbers will change more rapidly) 3.
  • Page 3 Page 2 of 3 Setting the Water Frequency 1. Turn the dial to “FREQUENCY” 2. Press “+” or “-“buttons to select the desired frequency. 3. The watering frequency range is from 10 seconds to 7 days. The default watering frequency is 1 day. WATERING FREQUENCY CHART 10SECS, 30SECS, 1MIN, 3MINS, 5MINS, 1HR, 2HRS, 4HRS, 12HRS, 1DAY, 2DAYS, 3DAYS, 4DAYS, 5DAYS, 6DYAS, 7DAYS...
  • Page 4 Page 3 of 3 RAIN DELAY TIME CHART OHRS, 24HRS, 48HRS, 72HRS Press this button to activate manual watering mode. HANDY HINTS: • The LCD screen shows the countdown time until the next watering. If you turn the dial from “RUN” to any other position, the watering will stop immediately.
