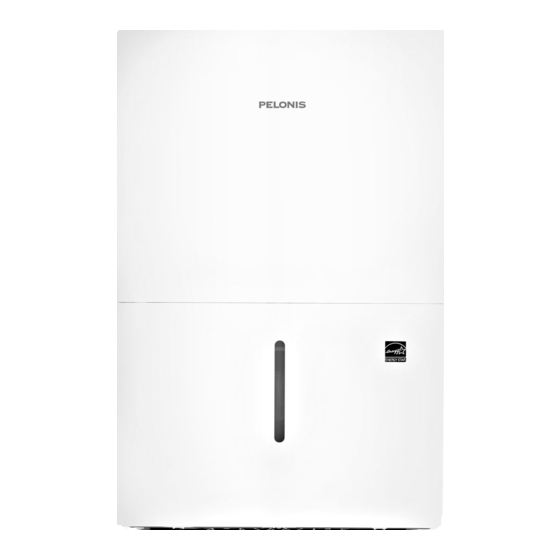

Dehumidifier
DP&DL
Rated voltage: 115V
Frequency: 60Hz
Warning notices: Before
using this product, please
read this manual carefully
and keep it for future
reference.
The design and
specifications are subject to
change without prior notice
for product improvement.
Consult with your dealer or
manufacturer for details.
Customer service: 1(866) 646-4332
USER MANUAL
PAD20C1AWT
PAD30C1AWT
PAD40C1AWT
PAD50P1ABL
PAD60P1AGR
www.pelonis.com
en
Advertisement
Summary of Contents for Pelonis PAD20C1AWT
- Page 1 Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to PAD20C1AWT change without prior notice PAD30C1AWT for product improvement. PAD40C1AWT Consult with your dealer or PAD50P1ABL manufacturer for details.
-
Page 2: Table Of Contents
Owner’s Manual Safety Precautions ................3 Unit Specifications and Features ........... 6 Operating Instructions ..............7 Installation Instructions ..............13 Care and Cleaning ................14 Troubleshooting Tips ............... 15 Warranty ..................... 16 Read This Manual Inside you will find many helpful hints on how to use and maintain your dehumidifier properly. -
Page 3: Safety Precautions
Safety Precautions To prevent injury to the user or personal and property damage, these instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk is shown by the following indications. This symbol indicates the possibility of death or serious injury. - Page 4 CAUTION • Do not use the unit in small spaces. Lack of ventilation can cause overheating and fire. • Do not use in places where water may splash onto the unit. Water may enter the unit and degrade the insulation. It may cause an electric shock or fire.
- Page 5 WARNING - Electrical Information • The manufactures nameplate is located on the rear panel of the unit and contains electrical and other technical data specific to this unit. • Be sure the unit is properly grounded. To minimize shock and fire hazards, proper grounding is important.
-
Page 6: Unit Specifications And Features
Unit Specifications and Features Product overview Control panel Air outlet grille Handle(both sides) Air filter Panel Continuous drain hose outlet Water level window Power cord buckle(placed in the water bucket,used Water bucket only when storing the unit) Pump drain hose outlet(some models without) Caster Power cord and plug Air outlet grille... -
Page 7: Operating Instructions
Operating Instructions CAUTION Clean your unit occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Key Pad Features NOTE The appearance of the control panel on your unit may vary slightly. Functions will be similar. Control Pads When you push the button to change operation modes, the unit will make a beep sound to indicate that it is changing modes. - Page 8 Up/Down Buttons ( NOTE • Humidity Set Control Buttons Make sure the pump drain hose is The humidity level can be set within a installed into the unit and the range of 35% RH (Relative Humidity) continuous drain hose is removed from to 85% RH (Relative Humidity) in 5% the unit before the pump operation is increments.
- Page 9 Eb - Bucket is removed or not in right P2 - Bucket is full - Empty the bucket. position - Replace the bucket in the (only available for the unit with right position. (only available for the pump feature.) unit with pump feature.) Other Features Bucket Full Light Press it again, the Timer OFF...
- Page 10 Removing Collected Water There are three ways to remove collected water: 1. Use the bucket • When the unit is off, if the bucket is full, the Full 1. Pull out the bucket. indicator light will light. • When the unit is on, if the bucket is full, the compressor and the fan turn off, and the Full indicator light will light, the digital display shows •...
- Page 11 2. Continuous draining • Water can be automatically emptied into a floor drain by attaching the unit with a standard garden hose thread to the back of the dehumidifier. The hose should have an outside diameter 5/8 inch or greater. Garden hose is not included.
- Page 12 NOTE The pump may generate a loud noise for the first 3~5 minutes of operation. • Make sure the hose is secure so there are no leaks. • Direct the hose toward the drain, making sure that there are no kinks that will stop the water flowing. •...
-
Page 13: Installation Instructions
Installation Instructions Positioning the Unit A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. (See Fig. 13) •... -
Page 14: Care And Cleaning
Care and Cleaning Turn the dehumidifier off and disconnect the plug from the power source before cleaning. 1. Clean the Grill and Case • Use water and a mild detergent. Do not use bleach or abrasives. • Do not splash water directly onto the unit. Doing so may cause an electrical shock, cause the insulation to deteriorate, or cause the unit to rust. -
Page 15: Troubleshooting Tips
Troubleshooting Tips Before calling for service, review this list. It may save you time and money. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Solution and/or Cause Make sure the dehumidifier’s plug is connected firmly into the wall outlet. Check the house fuse/circuit breaker box. -
Page 16: Warranty
Warranty Dehumidifier Limited Warranty Your product is protected by this Limited Warranty: Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer. Warranty • Three years limited warranty from original purchase date. Midea, through its authorized servicers will: •...
