Bell and Gossett ecocirc 19-16 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

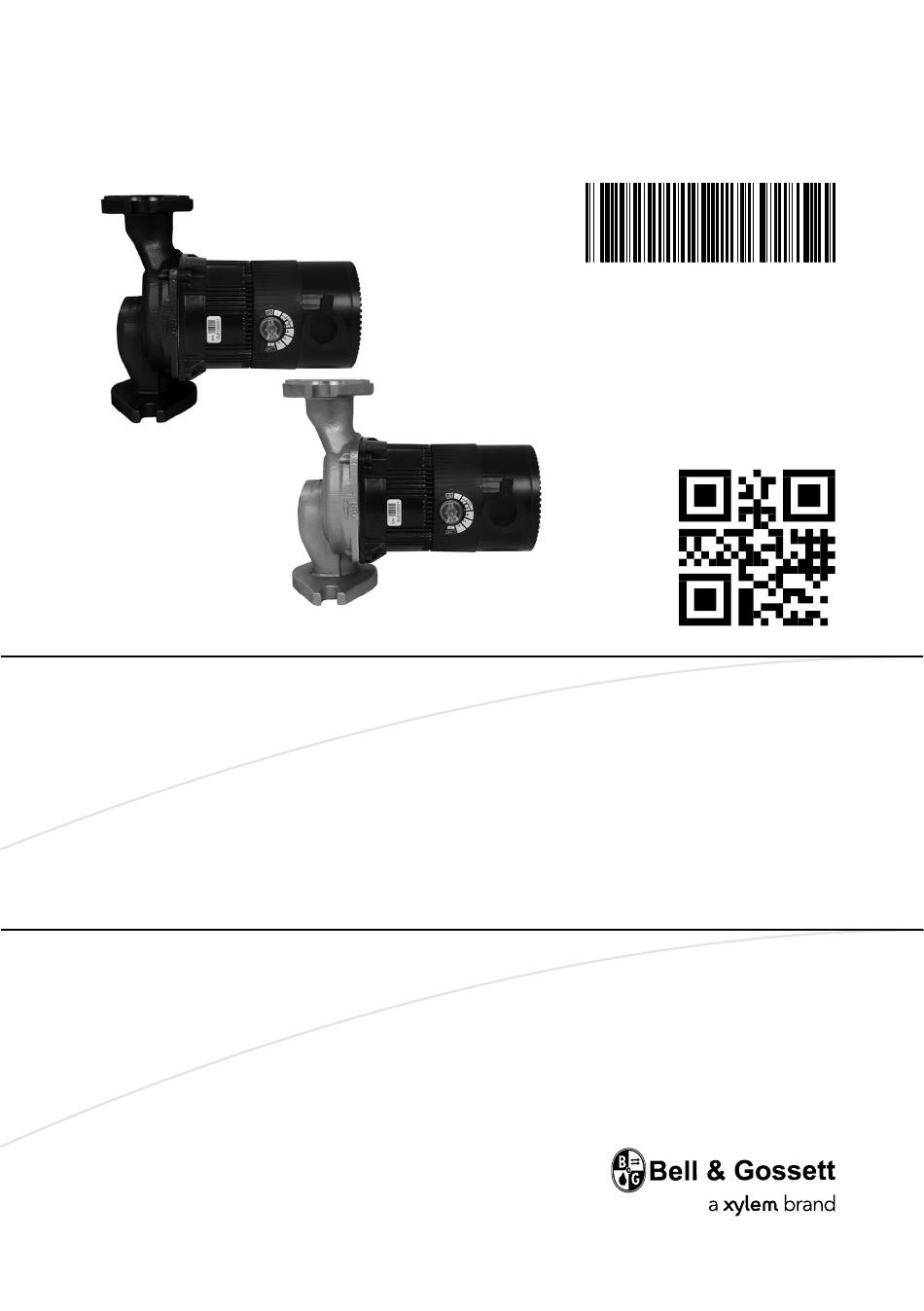

INSTRUCTION MANUAL
P2003557 Rev A
ecocirc
19-16
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ecocirc 19-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bell and Gossett ecocirc 19-16

  • Page 1 INSTRUCTION MANUAL P2003557 Rev A ecocirc 19-16 ®...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1 Introduction and Safety.................... 3 1.1 Introduction......................3 1.2 Safety........................3 1.2.1 Safety terminology and symbols............. 4 1.3 User safety......................5 1.4 Protecting the environment................6 2 Transportation and Storage..................8 2.1 Inspect the delivery................... 8 2.1.1 Inspect the package..................
  • Page 4 Table of Contents 7.3 Excessive ambient temperature..............21 8 Appendix........................22 8.1 Appendix......................22 9 Product warranty..................... 26 ® ecocirc 19-16 INSTRUCTION MANUAL...

  • Page 5: Introduction And Safety

    1 Introduction and Safety 1 Introduction and Safety 1.1 Introduction Purpose of this manual The purpose of this manual is to provide necessary information for: • Installation • Operation • Maintenance CAUTION: Read this manual carefully before installing and using the product.

  • Page 6: Safety Terminology And Symbols

    1 Introduction and Safety 1.2.1 Safety terminology and symbols About safety messages It is extremely important that you read, understand, and follow the safety messages and regulations carefully before handling the product. They are published to help prevent these hazards: •...

  • Page 7: User Safety

    1 Introduction and Safety Qualified personnel WARNING: This product is intended to be operated by qualified personnel only. 1.3 User safety General safety rules These safety rules apply: • Always keep the work area clean. • Pay attention to the risks presented by gas and vapors in the work area. •...

  • Page 8: Protecting The Environment

    1 Introduction and Safety • Make sure that the lifting equipment is in good condition. • Use a lifting harness, a safety line, and a breathing device as required. • Allow all system and pump components to cool before you handle them. •...
  • Page 9 1 Introduction and Safety Exceptional sites CAUTION: Radiation Hazard Do NOT send the product to Xylem if it has been exposed to nuclear radiation, unless Xylem has been informed and appropriate actions have been agreed upon. Recycling guidelines Always follow local laws and regulations regarding recycling. ®...

  • Page 10: Transportation And Storage

    2 Transportation and Storage 2 Transportation and Storage 2.1 Inspect the delivery 2.1.1 Inspect the package 1. Inspect the package for damaged or missing items upon delivery. 2. Note any damaged or missing items on the receipt and freight bill. 3.

  • Page 11: Product Description

    3 Product Description 3 Product Description 3.1 General description The product is a shaft-less spherical motor pump, with energy-efficient, electronically commutated permanent magnet synchronous motor. The following features make it easy to install, operate, and service: • A leak proof, integrated pump and motor design eliminates the need for conventional mechanical seals or other shaft sealing devices.

  • Page 12: Operation Specifications

    3 Product Description 3.3 Operation specifications Materials of construction Part Material Pump housing Cast iron (GJL-200) Stainless steel (AISI 304) O-rings EPDM Bearing PEEK/AI203) All plastics, except for bearings All other wetted parts AISI 304 / AISI 316 L / AISI 316Ti stainless steel Check valve Noryl Technical specification...
  • Page 13 3 Product Description Performance curves Q [m Q [Imp gpm] Q [US gpm] Figure 1: Proportional pressure (factory default) Q [m Q [Imp gpm] Q [US gpm] Figure 2: Constant pressure ® ecocirc 19-16 INSTRUCTION MANUAL...
  • Page 14 3 Product Description Q [m Q [Imp gpm] Q [US gpm] Figure 3: Constant speed Dimensions and weight Figure 4: Dimensions and weight on page 22. ® ecocirc 19-16 INSTRUCTION MANUAL...

  • Page 15: Installation

    4 Installation 4 Installation Precautions WARNING: • Observe accident prevention regulations in force. • Use suitable equipment and protection. • Always refer to the local and/or national regulations, legislation, and codes in force regarding the selection of the installation site, plumbing, and power connections. 4.1 Facility requirements 4.1.1 Pump location DANGER:...

  • Page 16: Piping Requirements

    4 Installation 4.2 Piping requirements Precautions CAUTION: • Use pipes suited to the maximum working pressure of the pump. Failure to do so can cause the system to rupture, with the risk of injury. • Make sure that all connections are performed by qualified installation technicians and in compliance with the regulations in force.

  • Page 17: Pump Installation Requirements

    4 Installation Electrical connection checklist Check that the following requirements are met: • The electrical wires are protected from high temperature and vibration. • The current type and power supply voltage connection must correspond to the specifications on the name plate on the pump. •...

  • Page 18: Electrical Installation

    4 Installation • If required by application and code, install a safety relief valve to protect against over temperature and over pressure. • Do not install with the motor above the impeller. This installation can cause the pump to run dry leading to premature failure of the pump and voids the warranty.
  • Page 19 4 Installation 3. Connect the ground wire to one of the ground screws inside the conduit box. 4. Make sure that the electrical connections are tightly secured before replacing the motor cover. ® ecocirc 19-16 INSTRUCTION MANUAL...

  • Page 20: Operation

    5 Operation 5 Operation 5.1 Preparation for startup Follow these precautions before startup: • The system must be thoroughly rinsed to prevent the presence of unwanted objects and impurities which could block the pump. • Fill completely with pumped media (water or water/glycol mixture). •...

  • Page 21: Standby Mode

    5 Operation In any of the standard operating modes, the LED remains permanently lit. 5.4 Standby mode Turn the knob to the lowest position in order for the pump to enter the standby mode after the air purge function is completed. Turn the knob to desired setting to return to standard operating mode.

  • Page 22: Maintenance

    6 Maintenance 6 Maintenance 6.1 Precautions Electrical Hazard: Disconnect and lock out electrical power before installing or servicing the unit. WARNING: • Always wear protective gloves when handling the pumps and motor. When pumping hot liquids, the pump and its parts may exceed 40°C (104°F).

  • Page 23: Troubleshooting

    7 Troubleshooting 7 Troubleshooting 7.1 Display messages WARNING: Maintenance and service must be performed by skilled and qualified personnel only. Description LED display Action Standby State: Pump is powered 0.75 sec off / 0.1 sec white — and ready to run. 0.75 sec off / 0.1 sec blue The pump is running normal.

  • Page 24: Appendix

    8 Appendix 8 Appendix 8.1 Appendix Figure 4: Dimensions and weight 6,38” (162 mm) 6,09” (154 mm) 3,54” (90 mm) 7,4” (188 mm) 3,15” (80 mm ) 3,74” (95 mm) 0,47” (12 mm) Weight 5.95 lb. (2.70 kg) ® ecocirc 19-16 INSTRUCTION MANUAL...
  • Page 25 8 Appendix Figure 5: Parts 1. Connection hole for the supply cable 2. Pump motor 3. Union ring 4. O-ring 5. Impeller / rotor 6. Pump housing 7. Adjustable selector knob with built-in LED 8. Fixing screws 9. Check valve ®...
  • Page 26 8 Appendix Figure 6: Electrical connections 1. Ground 2. Line 3. Neutral ® ecocirc 19-16 INSTRUCTION MANUAL...
  • Page 27 8 Appendix Figure 7: Maintenance 1. Disconnect power cable 2. Remove screws 3. Disconnect union ring 4. Remove impeller/rotor ® ecocirc 19-16 INSTRUCTION MANUAL...

  • Page 28: Product Warranty

    9 Product warranty 9 Product warranty Commercial warranty Warranty. For goods sold to commercial buyers, Seller warrants the goods sold to Buyer hereunder (with the exception of membranes, seals, gaskets, elastomer materials, coatings and other "wear parts" or consumables all of which are not warranted except as otherwise provided in the quotation or sales form) will be (i) be built in accordance with the specifications referred to in the quotation or sales form, if such specifications are expressly made a part of this Agreement,...
  • Page 29 9 Product warranty AND SHALL IN ALL CASES BE LIMITED TO THE AMOUNT PAID BY THE BUYER FOR THE DEFECTIVE PRODUCT. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY OTHER FORM OF DAMAGES, WHETHER DIRECT, INDIRECT, LIQUIDATED, INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF PROFIT, LOSS OF ANTICIPATED SAVINGS OR REVENUE, LOSS OF INCOME, LOSS OF BUSINESS, LOSS OF PRODUCTION, LOSS OF OPPORTUNITY OR LOSS OF REPUTATION.
  • Page 30 9 Product warranty DATE OF INSTALLATION OR TWENTY-FOUR (24) MONTHS FROM THE PRODUCT DATE CODE , WHICHEVER SHALL OCCUR FIRST. EXCEPT AS OTHERWISE REQUIRED BY LAW, BUYER’S EXCLUSIVE REMEDY AND SELLER’S AGGREGATE LIABILITY FOR BREACH OF ANY OF THE FOREGOING WARRANTIES ARE LIMITED TO REPAIRING OR REPLACING THE PRODUCT AND SHALL IN ALL CASES BE LIMITED TO THE AMOUNT PAID BY THE BUYER FOR THE DEFECTIVE PRODUCT.
  • Page 32 Xylem |’zīləm| 1) The tissue in plants that brings water upward from the roots; 2) a leading global water technology company. We’re a global team unified in a common purpose: creating advanced technology solutions to the world’s water challenges. Developing new technologies that will improve the way water is used, conserved, and re-used in the future is central to our work.
