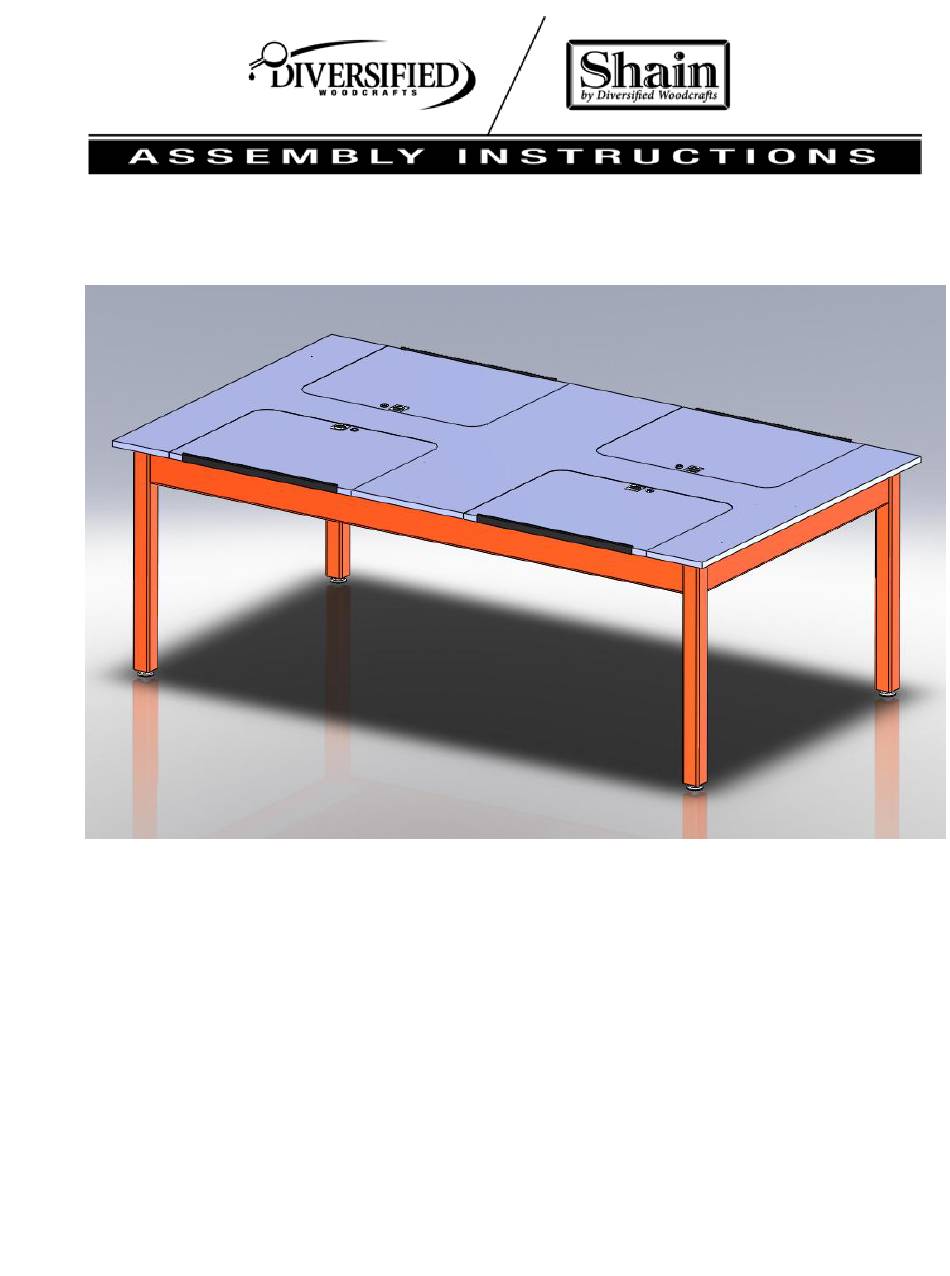

- Page 1 DT-90PL TABLE ASSEMBLY INSTRUCTIONS *Model views may not represent exact model purchased...
- Page 2 TABLE OF CONTENTS ASSEMBLY COMPONENTS_______________________________________3 APRON TO LEG ATTACHMENT___________________________________4 LEG ASSEMBLY_________________________________________________5...
- Page 3 ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART# 1-LEG KIT,TABLE 1-APRON ASSY,TABLE 1-TOP,TABLE 1-BOX,TABLES DESCRIPTION DATE Original Created 6-12-09...
- Page 4 Assembly Instructions for Tables Items not included but needed for assembly: 1. ½” wrench Instructions: 1. Lay the table on the floor with the apron side up. (Be sure to lay the table on a clean surface so you don’t damage the tabletop.) 2.
- Page 5 4. Slide leg boots onto the legs with the flared end toward the bottom of the leg. 5. Screw leg levelers into t-nut in the bottom of the leg. 6. Turn the table over so the top is up. Set your table in place and adjust the leg levelers to level the table.
