Drawing #1
Manufactured by:
Alpina Manufacturing LLC
Tel: 1-800-915-2828
Fax: 1-800-217-9431
e-mail: sales@fastchangeframes.com
www.fastchangeframes.com
FlipUp frame, model FF-RP round profile
security edge, fingers can't open, requires
simple tool to open.
COPYRIGHT 2006 PATENTS AND
TRADEMARKS STRICTLY ENFORCED
TM
FlipUp
frames - 2 choices
FlipUp frame, model FF-ST finger open style
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Alpina FlipUp FF-RP

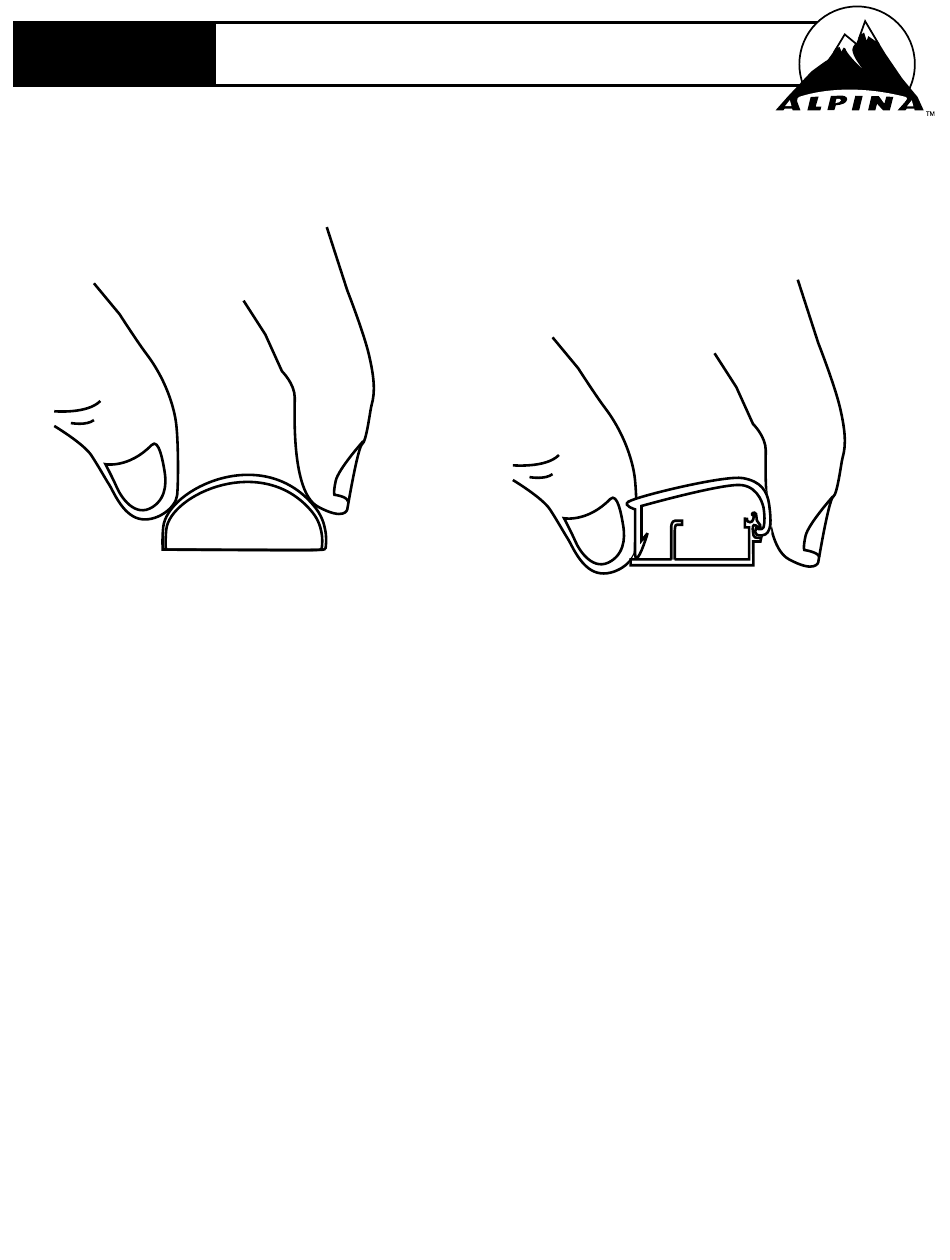

- Page 1 FlipUp frames - 2 choices Drawing #1 Manufactured by: Alpina Manufacturing LLC Tel: 1-800-915-2828 Fax: 1-800-217-9431 e-mail: sales@fastchangeframes.com www.fastchangeframes.com FlipUp frame, model FF-RP round profile FlipUp frame, model FF-ST finger open style security edge, fingers can't open, requires simple tool to open.
- Page 2 Instructions for FlipUp front-loading frame e-mail: sales@fastchangeframes.com Manufactured by: Tel: 1-800-915-2828 Alpina Manufacturing LLC Fax: 1-800-217-9431 www.fastchangeframes.com Thank you for your purchase of the FlipUp frame. Changing a poster or any graphics will be fast, easy and convenient for you.
- Page 4 FlipUp front load frame graphic Drawing #2c installation Models FF-ST or FF-RP Manufactured by: Alpina Manufacturing LLC Tel: 1-800-915-2828 Fax: 1-800-217-9431 e-mail: sales@fastchangeframes.com www.fastchangeframes.com 1. Open all four frame edges. 2. Insert graphic in holding cavity. 4. Snap corners down into alignment by pushing slightly outward on both frame edges as you rotate down.
- Page 5 Opening "round profile" security Drawing #3 FlipUp frame Model FF-RP Manufactured by: Alpina Manufacturing LLC Tel: 1-800-915-2828 Fax: 1-800-217-9431 e-mail: sales@fastchangeframes.com www.fastchangeframes.com 1. Insert chisel-style tool under frame edge and pry up gently. 2. Use your fingers to lift up frame edge all the way.
-
Page 6: Profile Dimensions
Profile Dimensions Drawing #4 Manufactured by: e-mail: sales@fastchangeframes.com Tel: 1-800-915-2828 Fax: 1-800-217-9431 Alpina Manufacturing LLC www.fastchangeframes.com 2006... - Page 7 Directions for joining longer frame Drawing #5 sections with the "joiner strap." Manufactured by: for FlipUp frame Alpina Manufacturing LLC Tel: 1-800-915-2828 Fax: 1-800-217-9431 e-mail: sales@fastchangeframes.com www.fastchangeframes.com Tools needed: 1/8 hex drive or flat-head screwdriver. Assembles in seconds! 1. Slide frame sections together and tighten down screws.
- Page 8 Security / Anti-Tamper options Drawing #6a Manufactured by: Option 1 Alpina Manufacturing LLC "Screw down Option" - patent pending Tel: 1-800-915-2828 Fax: 1-800-217-9431 (for FlipUp frame only) e-mail: sales@fastchangeframes.com www.fastchangeframes.com Screw down option so all 4 edges of frame are tightened down onto insert to prevent theft or wind blow out.
- Page 9 Drawing #6b Security Screws and Tools Manufactured by: Alpina Manufacturing LLC Tel: 1-800-915-2828 Fax: 1-800-217-9431 e-mail: sales@fastchangeframes.com www.fastchangeframes.com PER DRAWING 6a: Option 1, Option 3a, Option 3c security add-ons The security options on Drawing 6a will require tools as shown here.
- Page 10 Slide-In frame - hidden open edge Drawing #7 Manufactured by: Alpina Manufacturing LLC Super fast insert changes, no frame parts to remove. Tel: 1-800-915-2828 Fax: 1-800-217-9431 e-mail: sales@fastchangeframes.com www.fastchangeframes.com Slide-In frames can accept insert material up to .250" thick. Each edge...
-
Page 11: Frame Assembly
Slide-In frame - Assembly Drawing #8 Manufactured by: Alpina Manufacturing LLC Tel: 1-800-915-2828 The corners for the bottom of frame Fax: 1-800-217-9431 should be screwed into the 2nd / deeper channel of frame side for best results e-mail: sales@fastchangeframes.com www.fastchangeframes.com... - Page 12 Drawing #9 Measuring Methods / Graphic Thickness / Wall Mounting Manufactured by: Alpina Manufacturing LLC You can order your frames by one of the 3 methods below. Tel: 1-800-915-2828 You can order by whatever dimension or measuring method is most important to your Fax: 1-800-217-9431 project.
- Page 13 Drawing #10 Overlays and Backers Manufactured by: Alpina Manufacturing LLC Tel: 1-800-915-2828 Fax: 1-800-217-9431 e-mail: sales@fastchangeframes.com www.fastchangeframes.com Maximum size available for overlays Overlay Backer and backers are 48” x 72” Overlays = Protect and enhance the beauty of your graphic. Clear plastic protective overlay windows are approx. 20 mils/ .020"...
