Summary of Contents for Xhorse KEY TOOL PLUS

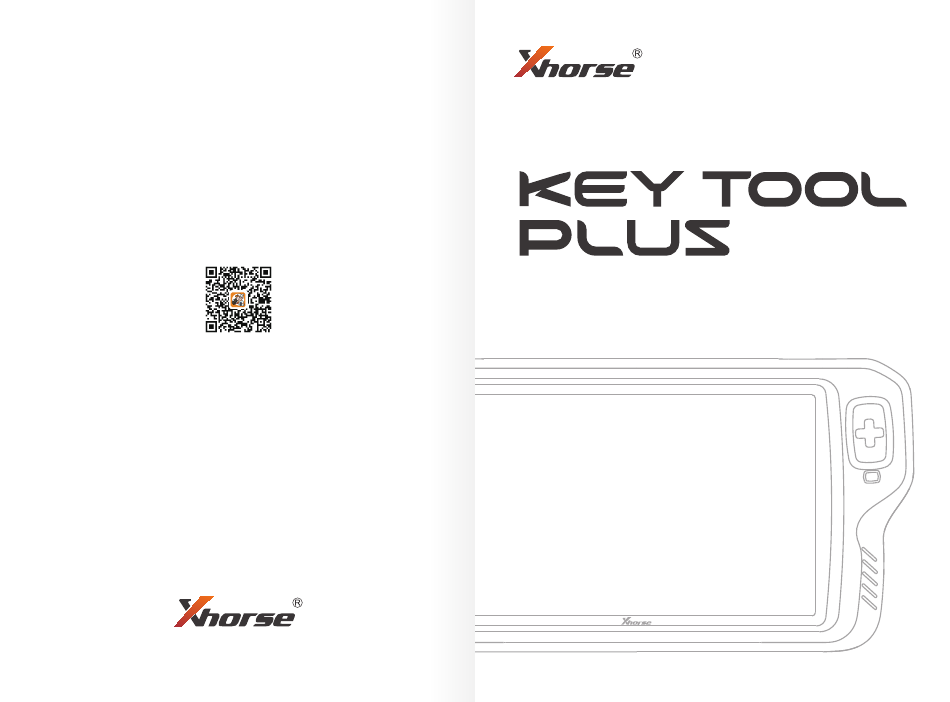

- Page 1 User Manual Xhorse APP www.vvdishop.com *Read this user manual carefully before using the device.
- Page 2 Thank you for choosing Xhorse device. www.vvdishop.com...
-
Page 3: Table Of Contents
8 Immo Data Tool 2 Safety Precaution 8.1 Car models support list 3 Product List 8.2 Magotan/CC 48 transponder File Make Key 4 KEY TOOL PLUS Overview 8.3 File management 9 Extended Function: Cutting Key 4.1 Main interface 4.2 Ports and accessories 9.1 How to switch and connect the key cutting machine... -
Page 4: Disclaimer
Certificate of conformity matching purposes following relevant laws and regulations. We do not endorse illegal use. and warranty card • Any risk follows the illegal use of this document and Xhorse KEY TOOL PLUS will be the user's • •... -
Page 5: Key Tool Plus Overview

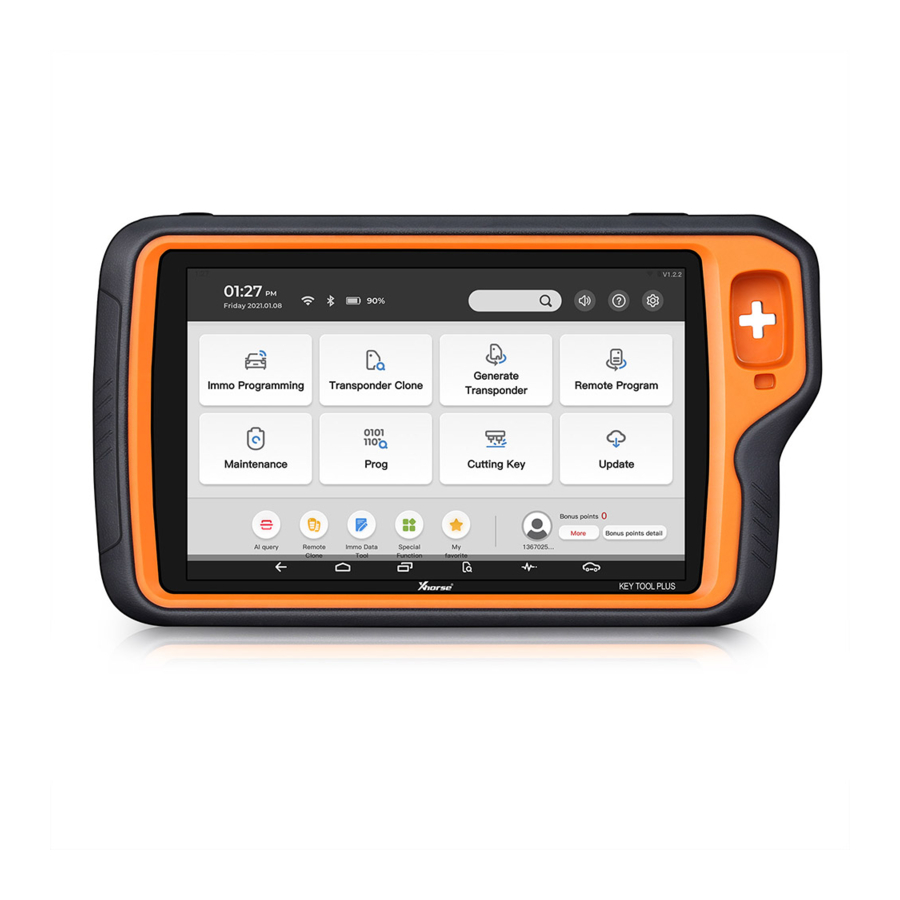

See Fig. 4.1.1 4 KEY TOOL PLUS Overview KEY TOOL PLUS provides an all-in-one automotive security solution for locksmiths. The device combines immobilizer matching, remote generation, transponder clone, File Make Key and reading & writing vehicle module data. Besides, it is available to control key cutting machines developed by Xhorse. - Page 6 Read & write EEPROM data, ECU and Make Key function (see Chapter 8) other car modules data (see Chapter 7) Cutting Key Update Complete key cutting work with Xhorse System update center (see Fig. 4.1.4) key cutting machines (see Chapter 9) Fig.4.1.3 Feedback and suggestion Video center Tutorial videos are provided here.
- Page 7 KEY TOOL PLUS Overview KEY TOOL PLUS Overview My favorite： Users can bookmark vehicle remotes and key blanks to quickly access their favorites with one click next time. See Fig. 4.1.6 4.1.3 Shortcut function AI query： Scan the VIN code of the vehicle, it's able to automatically show the operation options like detailed information, cutting key, remote program, immo programming and immo data tool.
-
Page 8: Ports And Accessories
KEY TOOL PLUS Overview KEY TOOL PLUS Overview Synchronization： Users can synchronize tokens and collect bonus points. See ① Screen More Fig. 4.1.8 ② Light sensor----detect the brightness in the current environment ③ Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency) - Page 9 KEY TOOL PLUS Overview KEY TOOL PLUS Overview ④ EEPROM adapter----Adapter for programming ⑩ On / Off / Screen Lock ---- ⑪ USB charging port support standard fast charge adapter and standard ⑤ DB15_15 connector----Connector for programming Type-C port DC-5V input ⑫...
-
Page 10: Specifications
5 OBD IMMO Programming Name Specifications 5.1 Overview KEY TOOL PLUS can be connected to the car via OBD connection cable to complete OBD Operating system Android 9.0 immo programming and other OBD functions on most common car models. Currently, KEY... -
Page 11: Immo Programming
Honda Accord, as a classic model, the immo systems and immo programming opera- tions are different due to the different car model year. KEY TOOL PLUS supports immo programming of all models of Accord (see Fig. 5.4.1). Users can choose the smart key Fig.5.2.1... -
Page 12: Remote And Transponder
In remote program, you can search the car brand based on the brand area on the left, on the right, or in all brands. Besides, KEY TOOL PLUS also supports my favor- ites for your convenience as shown in Fig. 6.1.1. - Page 13 Fig.6.1.2 Fig.6.1.4 Some new remotes can be directly cloned with the original remotes. KEY TOOL PLUS supports two common types of remote clone function and fix code editing function. Fix code editing serves as a fix tool for some fix code remotes. When the remote function is partially damaged, users can generate a fully functional remote by using the editing HCS/fix code clone is used to complete remote clone for HCS3XX rolling code, PT2262, LX918,...
-
Page 14: Transponder Read, Generation & Clone
6.2.3, the super transponder is converted into a Toyota Corolla 8A chip. As shown in Fig. 6.2.1, KEY TOOL PLUS can precisely read the remote transponder as AUDI 5th generation and also read the remote reading status, remote frequency, synchro- nized mileage information of the vehicle. - Page 15 Fig.6.3.1 6.3.2 Ignition coil signal detection When car key is undergoing all lost, you can use KEY TOOL PLUS to detect the transpon- Fig.6.3.3 der type of the car's ignition coil and whether the coil is working. You can put the antenna close to the ignition switch and turn it on and off...
-
Page 16: Prog
Fig. 7.1.1, these modules include "EEPROM and FLASH", "IMMO", "Instrument", As shown in Fig. 7.2.1 is an example of KEY TOOL PLUS reading BMW 35160. "Airbag" and "ECU". Users can operate according to the specific modules of car model or chip manufacturer. -
Page 17: Bmw Frm Module Programming (Solder-Free)
PROG PROG 7.3 BMW FRM module programming 7.4 LANDROVER RFA programming (Solder-Free) (Solder-Free) Steps： Steps： ① Connect the device to BMW adapter(Optional), then clip the adapter to BMW FRM module as ① Connect the device to Land Rover RFA adapter(Optional), then clip the adapter to Land Rover shown in Fig. -
Page 18: Porsche Bcm Programming
Thus the car can be started without programming. 8.1 Car models support list KEY TOOL PLUS supports File Make Key function of common cars and motorcycles. The support list is as follows in Fig. 8.1.1. Fig.7.5.1 ②... -
Page 19: Magotan/Cc 48 Transponder File Make Key
File Make Key requires reading the car's module data. Firstly, you can use PROG KEY TOOL PLUS offers file management, in which you can choose data in local file or function (see Chapter 7) to read the data of comfort computer for later use and finish my data (online cloud data file) in File Make Key process as shown in Fig. -
Page 20: Extended Function: Cutting Key
Extended Function: Cutting Key Extended Function: Cutting Key 9 Extended Function: Cutting Key KEY TOOL PLUS can be extended to control Xhorse key cutting machines (CONDOR, DOLPHIN and Panda) and work as its screen. See the interface as shown in Fig. 9.1 Fig.9.1.1 ②... - Page 21 Extended Function: Cutting Key Extended Function: Cutting Key All Key Lost Cut by Biting Cut by Biting is categorized by general key blanks. The device supports cutting by All Key Lost can help you get the bitting when you have partial key information like key tag, key code different bitting.
-
Page 22: Settings
② Click the serial number and the machine is connected then. Fig.9.2.5 10.2 WLAN connection This option is for searching and connecting to WIFI. Steps： ① Click 'Scan'. ② Choose the WIFI you want and enter the password. Key TOOL PLUS will connect to WIFI then automatically. www.vvdishop.com... -
Page 23: Language Setting
10.6 Service/privacy policy • Shell stain, scratch and abrasion caused in daily use This option shows the full version of the service agreement. To use KEY TOOL PLUS, you have to agree and follow the Service/Privacy Policy first. 10.7 About us This option shows manufacturer information and the current APP version of the device. - Page 24 For after-sale service and technical support, please contact the dealer or Xhorse online customer service by scanning the QR code in the back of the manual and downloading Xhorse APP. www.vvdishop.com...
