Summary of Contents for Armstrong Rada

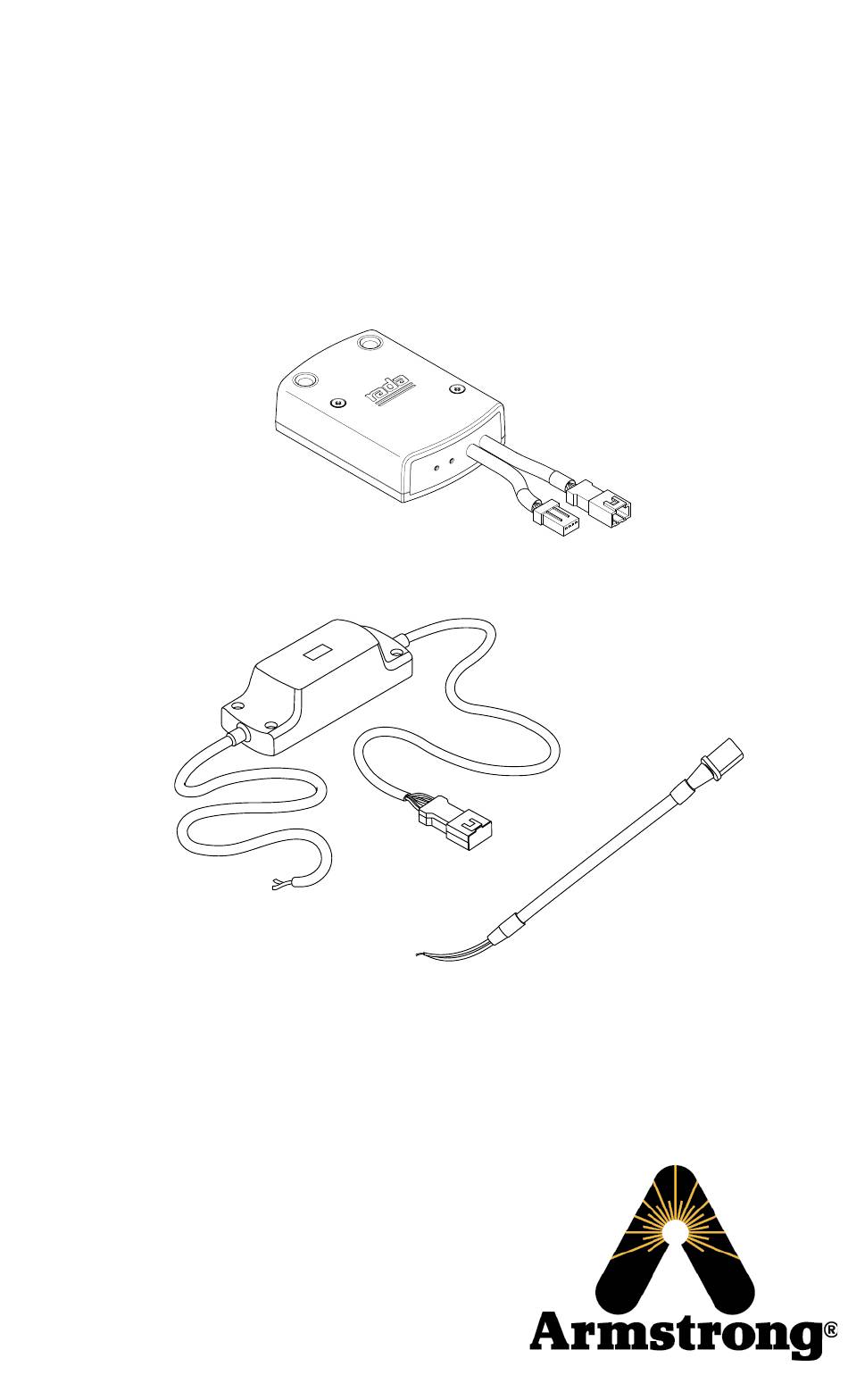

- Page 1 Rada Digital Faucet Networking Guide Please read and save these instructions 496-EN V1.3...
-
Page 2: Table Of Contents
Table of Contents General Specifications Cable Installation for Rada Network Junction Box Rada Network Junction Box Network Cable Connections End of Line Kit Connection Connecting to a Building Management System (BMS) Connecting Network to TCP-IP or WiFi Communication with BMS... -
Page 3: General
Modbus, the product acts as an RTU (Remote Terminal Unit) that is monitored by the BMS. The following is a guide for connecting a Rada Digital Faucet product to a BMS using a Modbus RTU protocol. Please review the Product Manual available at www.radacontrols.com to familiarize yourself with the product specification and... -
Page 4: Specifications
X 1 q End of Line Kit X 1 q X 1 q X 1 q The end of line kit is used on the last product in the network series. Specifications Electrical Supply Voltage 100 - 240 V 50/60 Hz Rated Input Current Water Ingress Protection IP X4... -
Page 5: Cable Installation For Rada Network Junction Box
Cable Installation for Rada Network Junction Box The cable connecting to the BMS should be 2 x twisted pair cable, 22 AWG with a maximum outer sheaf diameter of 6.5mm. Belden cable recommended. Do not use CAT 5.Connecting cable should be in a ‘daisy chain’... -
Page 6: Rada Network Junction Box
Rada Network Junction Box Connection A connects to the Valve Connection B connects to the PSU Connection C connects to the next and previous network box in the series. To Connect to the Network Box 1. Unscrew and remove the cover. -
Page 7: Network Cable Connections
Network Cable Connections Join cores and crimp using Bootlace Ferrules. 0.30" (10mm) .0.8" (2mm) Ferrule Dimensions Sig+ Sig- North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim armstronginternational.com... -
Page 8: End Of Line Kit Connection
End of Line Kit Connection To power the network boxes a connection to a power supply is required. Connect end of cable and connector. Place jumper on terminals shown below. To Valve 1 To Valve 1 Jumper To Network PSU North America •... -
Page 9: Connecting To A Building Management System (Bms)
Connecting to a Building Management System (BMS) Product Mains Mains Electricity Electricity Network Access Connection Mains Product Product Product Product Network Electricity Mains Mains Mains Electricity Electricity Electricity First junction Network Network Network Network box (furthest point from end of line PSU) RS485 Last in Line to USB... -
Page 10: Connecting Network To Tcp-Ip Or Wifi
Connecting Network to TCP-IP or WiFi Network Access Connection Product Product Product Product Mains Mains Mains Mains Product Electricity Electricity Electricity Electricity Network Network Mains Mains Network Network First junction Electricity Electricity box (furthest point from end Network of line PSU) Anybus•Modbus- Last in Line TCP/RTU... -
Page 11: Communication With Bms
Communication with BMS Communication standard: • Baud Rate 9K6 • Parity None • Data bits 8 • Stop Bits 1 • Mode RTU • Electrical Interface RS-485 2w cabling no pull-up Modbus functions supported: • Read holding registers (0x03) • Write Single register (0x06) •... - Page 12 Table 2 - Error Codes Enumeration Description No error Over temp Stuck motor Motor calibration Valve failure Thermistor failure Unconfigured A to D error Ram error EE error Flash error Algotithm error Controlled error Not used Scheduler error Shut off mechanism IR not calibration Not used Iinterface error...
-
Page 13: Limited Warranty And Remedy
The heat exchanger shall have a 1 year warranty from date of installation but not longer than 18 months from date of manufacturing. Rada Digital Faucets shall have a 3 year all mechanical and electrical parts and a 1 year all finish parts warranty from date of shipment. - Page 14 Notes North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim armstronginternational.com...
- Page 15 Notes North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim armstronginternational.com...
- Page 16 Rada Digital Faucet Networking Guide Designs, materials, weights and performance ratings are approximate and subject to change without notice. Visit armstronginternational.com for up-to-date information. Armstrong International North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim armstronginternational.com...
