Pronto4 Mounting Feet – MLT Field Installation

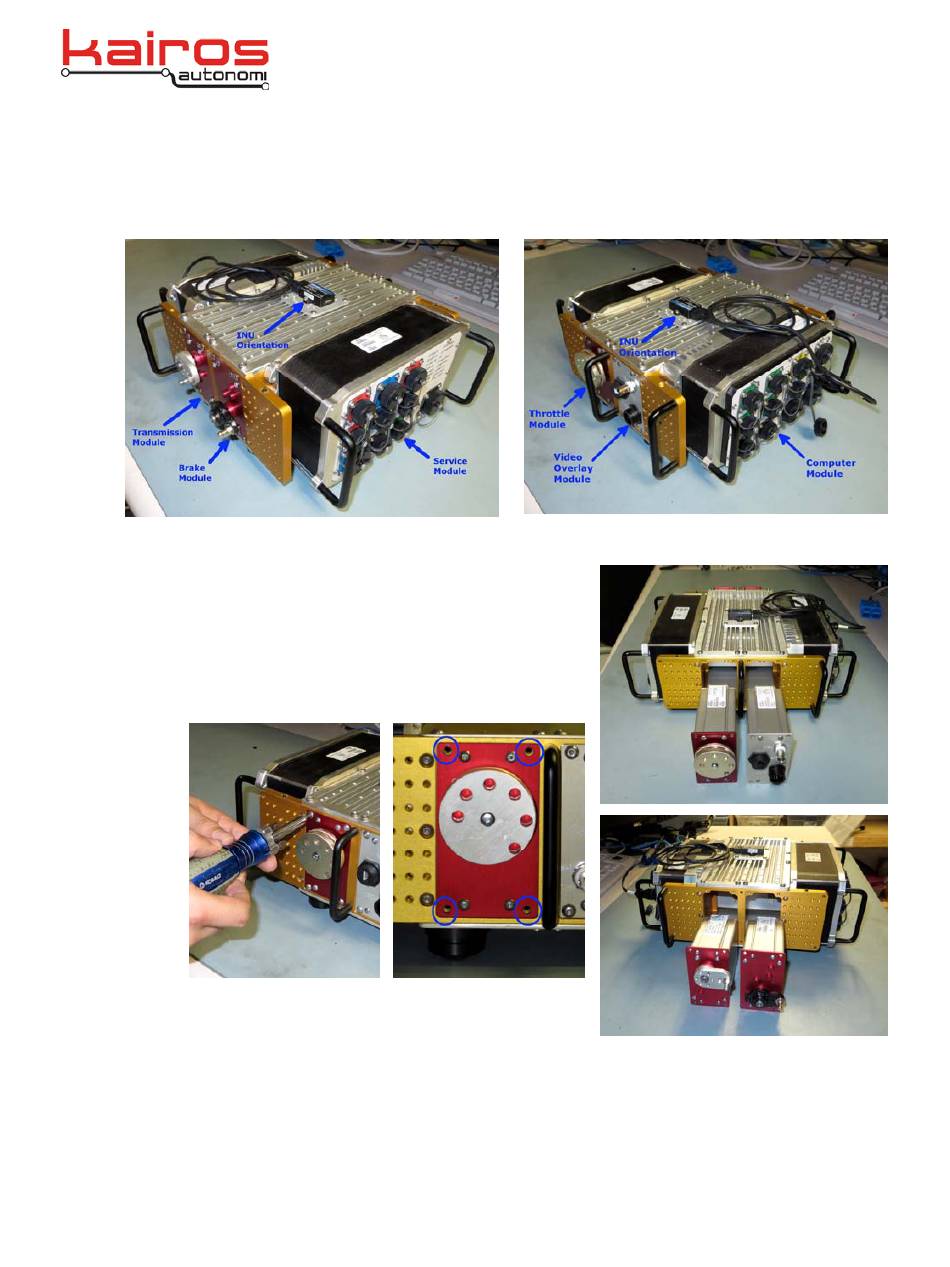

1. Note and photograph relative servo and multifunction module locations.
2. Remove the servo and multifunction modules, as follows:
a. Use an 8/32" hex driver to remove each of
the four (4) outermost corner screws. Set
screws aside for reinstallation.
b. Carefully pull out the module.
c. Repeat 2.a. and 2.b. for all three servo
modules and the multifunction module.
Company Confidential
© 2014, Kairos Autonomi®
Scalable Autonomy™
Kairos Autonomi
498 W. 8360 S.
Sandy, Utah 84070
801-255-2950 (office)
801-907-7870 (fax)
www.kairosautonomi.com
Pronto4 Mounting Feet
MLT Field Installation
v.01.00.01
BULLETIN
BUL-062
Page 1 of 6
2014-06-03 / 16:41
Pronto4 Mounting Feet MLT
Field Installation 01_00_01.doc
Advertisement
Table of Contents
Summary of Contents for KAIROS Pronto4
- Page 1 BUL-062 801-907-7870 (fax) www.kairosautonomi.com Pronto4 Mounting Feet – MLT Field Installation 1. Note and photograph relative servo and multifunction module locations. 2. Remove the servo and multifunction modules, as follows: a. Use an 8/32” hex driver to remove each of the four (4) outermost corner screws.
- Page 2 Use a pair of needle-nose or bent-nose pliers to pull off the interior rubber bumper from each foot. Company Confidential Pronto4 Mounting Feet Page 2 of 6 © 2014, Kairos Autonomi® MLT Field Installation 2014-06-03 / 16:41 Scalable Autonomy™ v.01.00.01 Pronto4 Mounting Feet MLT Field Installation 01_00_01.doc...
- Page 3 Use a #2 Phillips driver and an 11/32” socket and driver to remove the lock washer and screw from each foot. 5. Attach the Pronto4 Mounting Feet Assembly (p/n: MCA-00129), as follows: a. Use a #2 Phillips driver to drive a...
- Page 4 If the module connector and interior frame connector are not adequately aligned then damage can be done to the connector pins. If damage is done to the pins then the module will not function correctly and will need to be returned to Kairos for repair. a. Manually slide the module through the exterior frame slot from which it was removed during step 2.b.
- Page 5 Company Confidential Pronto4 Mounting Feet Page 5 of 6 © 2014, Kairos Autonomi® MLT Field Installation 2014-06-03 / 16:41 Scalable Autonomy™ v.01.00.01 Pronto4 Mounting Feet MLT Field Installation 01_00_01.doc...
- Page 6 2.a. to secure the top plate to the frame. Company Confidential Pronto4 Mounting Feet Page 6 of 6 © 2014, Kairos Autonomi® MLT Field Installation 2014-06-03 / 16:41 Scalable Autonomy™ v.01.00.01 Pronto4 Mounting Feet MLT Field Installation 01_00_01.doc...
