Description
The VEA-1023 is an analog video distribution amplifier with
8 outputs providing differential input, clamping, automatic
equalization and gain adjustments. Equalizing up to 300 m
(1000') of Belden 8281 cable, the gain and equalization can
be controlled from the frame control panel, the remote
control system (with menu type adjustments) or
automatically (using a test signal at the input). A multi-
colored LED, visible with the door closed, reports the card
status. The differential input provides rejection of hum and
other artifacts on incoming signals. The VEA-1023 is
housed in a Densité frame and a single or double width rear
connector panel is required.

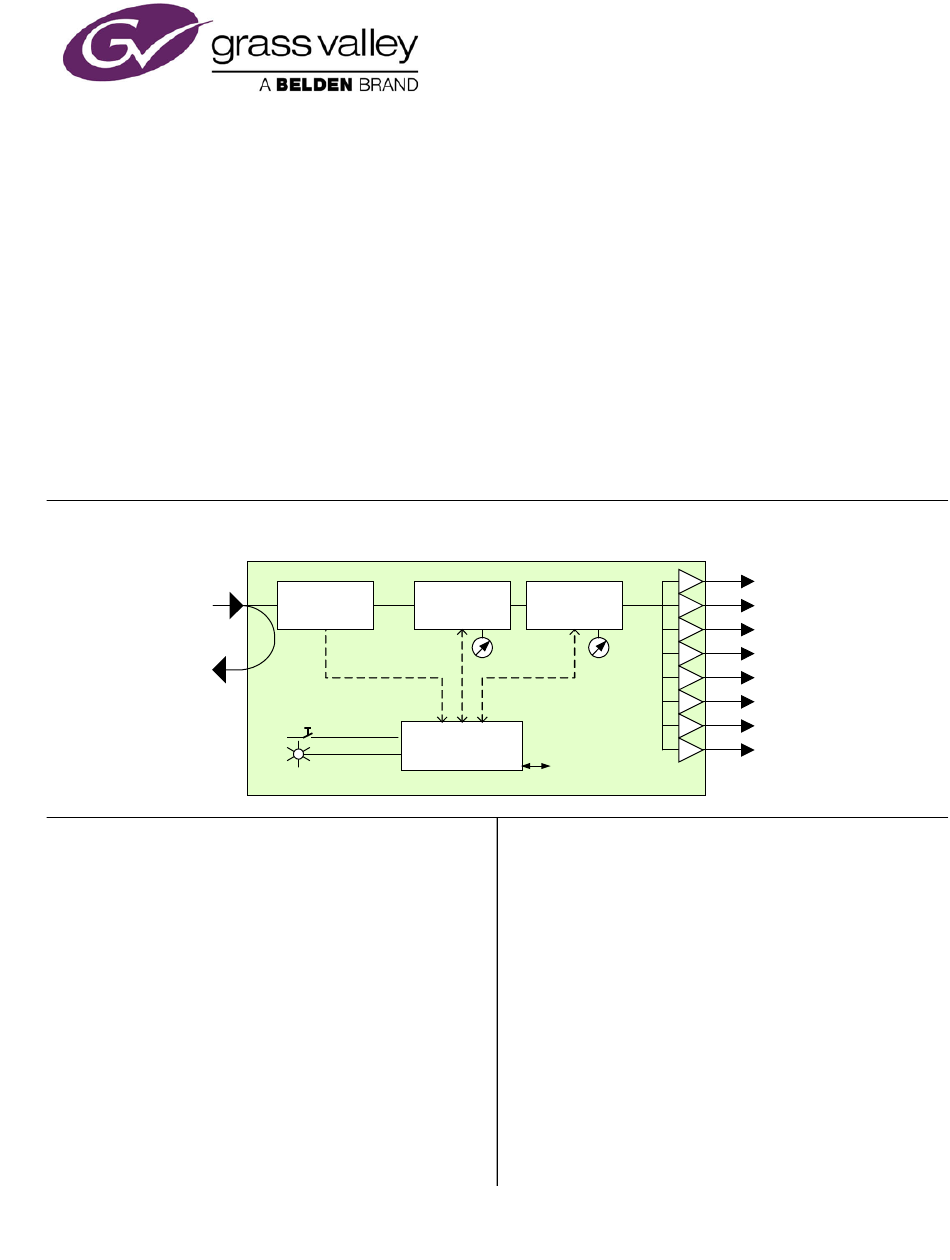

FUNCTIONAL BLOCK DIAGRAM
Video
Input
Loop
SPECIFICATIONS
INPUT
Video signal: ................................ Any 1 Vpp nominal signal
Return loss: ................................. > 40 dB up to 5 MHz
Coupling: ...................................... DC or AC with Clamping
Level: ........................................... 0.3 to 1.5 Vpp
Impedance: .................................. 75 Ω bridging
Max. Common mode signal: ........ 28 Vpp
Common mode rejection: ............ > 65 dB to 10 kHz
OUTPUTS (8)
Video signal: ............................... 1 Vpp nominal, adjustable
Return loss: ................................. > 50 dB up to 10 MHz
............................. 75 Ω
Impedance:
Phase match between outputs: .... < 0.1° @ 4.43 MHz
Output isolation signal:................... > 40 dB @ 10 MHz
Response variation (1-8 loads):
VEA-1023
Signal
Gain
Detection
Select
Microcontroller
Status
(Hard/Soft/None)
< 0.1 dB, 20 MHz
VEA-1023 Analog Video Auto Equalizing DA
Guide to Installation and Operation
Features
• Analog video differential input with passive loop-through
• Eight 75 Ω outputs
• Signal presence and 525/625 detection and reporting
• Supports NTSC and PAL video signal formats
• Handles AES-3id audio signal format
• 50 MHz analog video bandwidth
• Equalization up to 300m (1000')
• Status LED and remote reporting
Equalization
Rem Control
PROCESSING PERFORMANCE
Gain range:
Freq. response:
EQ range:
EQ response:
Diff. gain:
Diff. phase:
Horizontal tilt:
Vertical tilt:
Signal to noise ratio:
Chroma/luma delay error: < ±1 ns
Chroma/luma gain error:
Hum:
Processing delay:
Power:
VEA-1023
M477-9500-110
October 2016
1
2
3
4
Video
Outputs
5
6
7
8
± 3 dB
<±0.02dB up to 5MHz,
±0.05dB up to 10MHz
0-300 m Belden 8281,
0-200 m Nokia 0.6/2.8
<±0.05dB up to 5MHz,
±0.15dB up to 10MHz,
< 0.15%
< 0.15° (8 loads),
< 0.1°, (2 loads)
< 0.25%, DC coupling
< 0.25%, DC coupling
> 70 dB rms/0.714V, flat 15 MHz
< ±0.02 dB
< 1 mV
15 ns
W
single 2 W, dual 2.5
Page 1 of 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Grass Valley VEA-1023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Belden Grass Valley VEA-1023

  • Page 1 Equalizing up to 300 m • Signal presence and 525/625 detection and reporting (1000’) of Belden 8281 cable, the gain and equalization can • Supports NTSC and PAL video signal formats be controlled from the frame control panel, the remote control system (with menu type adjustments) or •...

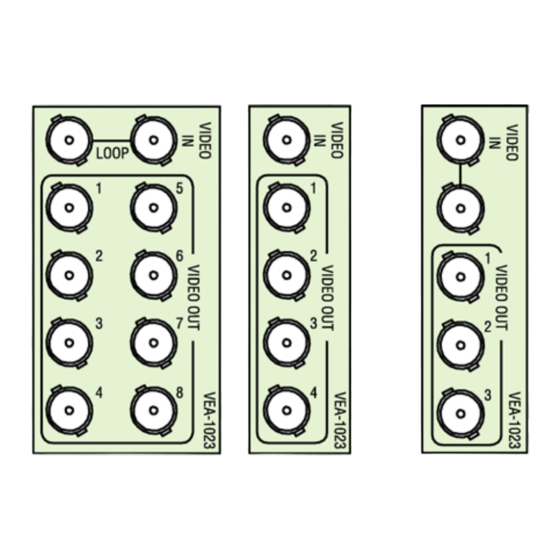

  • Page 2 VEA-1023 Analog Video Auto Equalizing DA Guide to Installation and Operation VEA-1023 Front card edge VEA-1023 Rear Connector Panels VEA-1023 INSTALLATION has multiple inputs and outputs, and making space for all the necessary connectors at the rear Make sure the following items have been shipped with your of the frame requires a double-width rear panel.
