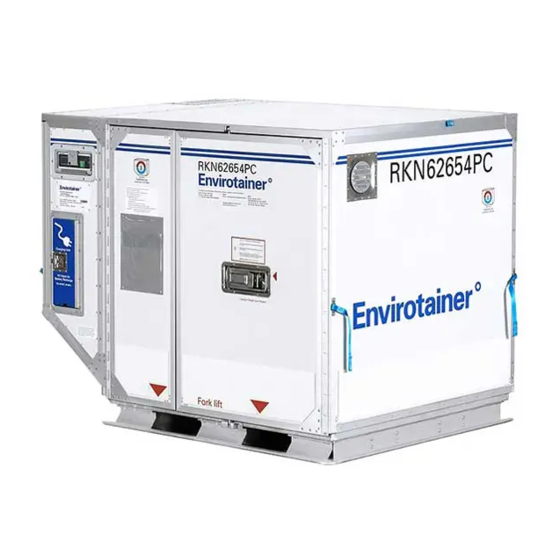

Summary of Contents for Envirotainer RKN t

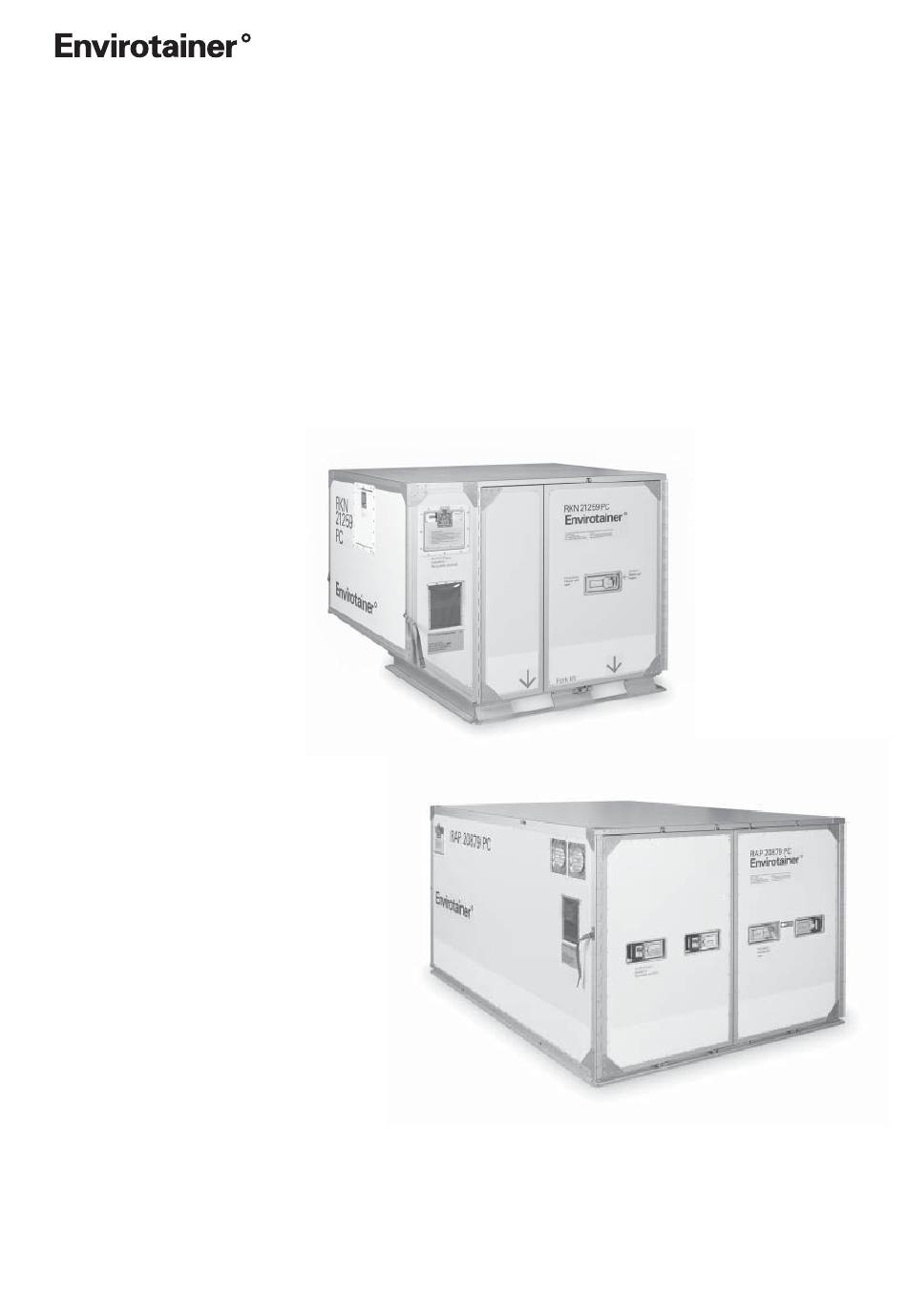

- Page 1 Envirotainer RKN t / RAP t Container Operations Manual This manual is valid for: RKN version 120005R( ) and 120005R RAP version 140007R( ) and 140007R Doc. No. OM-101 www.envirotainer.com Version 1.9: Jan. 16, 2009 1 (40)
- Page 2 RECORD OF REVISION RECORD OF REVISION Ver. No. Issue date Revision Jan. 16, 2009 Text and pictures updated, page 5-6. Limitations for temperatures near or below the set temperature (outside specification) removed, page 7. Text and pictures updated for control units, page 15-19. Note added for maximum amount of dry ice and for advice in dry ice calculation, page 22.
-
Page 3: Table Of Contents
CONTROL UNIT OPERATION (Type 3) ............. 18 DRY ICE CALCULATION ................20 DRY ICE TABLES (RKN) ................24 DRY ICE TABLES (RAP) ................27 TECHNICAL SPECIFICATION RKN t ............30 TECHNICAL SPECIFICATION RAP t ............32 TROUBLESHOOTING ................34 RKN / RAP CONTAINER CHECKLIST ............39 Doc. -
Page 4: Introduction
INTRODUCTION Scope of manual This manual provides information for personnel involved in the handling and transport of Envirotainer container series RKN and RAP and is published by Envirotainer AB without warranty. If you have any questions regarding this manual or the container, send an e-mail to technicalsupport@envirotainer.com, or telephone one of our operation centers:... - Page 5 INTRODUCTION Dry ice bunker Control unit Manufacturer's plate (P/N indicated) Note! Placard holder The P/N could be 120005R or (Document pouch) 120005R( ) Note! Note! The placard holder can also be This manual is only valid for P/N located on the left door 120005R and 120005R( ).
- Page 6 INTRODUCTION Dry ice bunker (on the rear side) Control unit Manufacturer's plate (P/N indicated) Note! Placard holder The P/N could be 140007R (Document pouch) or 140007R( ) Cargo area Figure 2 RAP Container Doc. No. OM-101 Version 1.9: Jan. 16, 2009 6 (40)
-
Page 7: Limits, Ambient Conditions
LIMITS, AMBIENT CONDITIONS LIMITS, AMBIENT CONDITIONS Specified Limits The RKN and RAP containers are designed to maintain cargo temperatures in a range from -20°C to +20°C (-4°F to +68°F) provided the ambient temperature is 5°C to 25°C (9°F to 45°F) higher than the set temperature. -
Page 8: Preconditioning
PRECONDITIONING PRECONDITIONING The cargo and container must be pre-conditioned to the set temperature prior to loading. Improper precondition will affect the container's ability to maintain cargo temperature. Cargo Preconditioning The cargo must be preconditioned in a temperature-controlled room to the container's set temperature prior to loading (separating the cargo aids the preconditioning process). -
Page 9: Cargo / Dry Ice Loading
CARGO / DRY ICE LOADING CARGO / DRY ICE LOADING Dry ice Dry ice shall be used wrapped or unwrapped as stated in the dry ice tables. Wrapped dry ice • Dry ice in paper/plastic bags. Note that the paper/plastic bag shall not be removed when wrapped dry ice is used. - Page 10 CARGO / DRY ICE LOADING Cargo Temperature Recording The temperature indicated on the control unit is not the product temperature but the temperature of the air inside the container. When cargo temperature monitors are used, they must be placed in or among the cargo boxes (temperature monitors placed outside the cargo does not measure the product temperature).
- Page 11 CARGO / DRY ICE LOADING Cargo Loading - Refrigerated / Controlled Room Temperature When the container is preconditioned with a temperature-controlled room Container loading takes place in the temperature-controlled room used for preconditioning. 1) Ensure that the container is preconditioned to the required cargo temperature. page 10 2) Load the container.
- Page 12 CARGO / DRY ICE LOADING Cargo Loading - Frozen By placing dry ice in the cargo area, the container keeps cargo frozen when ambient temperatures exceed the specified temperature limits, however a lower temperature limit can not be controlled. When the container is preconditioned with a temperature controlled room The container should be loaded in the temperature-controlled room used for preconditioning.
- Page 13 CARGO / DRY ICE LOADING When the container is preconditioned with dry ice Dry ice is in the container prior to cargo loading which takes place at warehouse or ambient conditions. 1) Ensure product and all packing material is preconditioned for at least one week prior to loading.
-
Page 14: Container Handling Guidelines
HANDLING AND TRANSPORT CONTAINER HANDLING GUIDELINES General Guidelines Observe the following guidelines when handling the container: 1) RKN containers can be forklifted when empty or loaded. 2) RAP containers can be forklifted only when empty; the use of slave pallets is recommended. 3) Use the straps outside the corners of the container to handle the container on roller beds. -
Page 15: Control Unit Operation (Type 1)
CONTROL UNIT OPERATION (Type 1) CONTROL UNIT OPERATION (Type 1) Mounting Batteries 1) Open the door to the control unit. 2) Place 16 "D-cell" alkaline batteries in the holder. Voltage 1.5V IEC / JIS LR 20 ANSI / NEDA 3) Ensure proper battery polarity (Figure 6). Figure 6 Start the control unit 1) Set the "ON/OFF"... -
Page 16: Control Unit Operation (Type 2)
CONTROL UNIT OPERATION (Type 2) CONTROL UNIT OPERATION (Type 2) Mounting Batteries 1) Open the door to the control unit. 2) Place 16 "D-cell" alkaline batteries in the holder. Voltage 1.5V IEC / JIS LR 20 ANSI / NEDA 3) Ensure proper battery polarity (Figure 9). Figure 9 Start the control unit The Control unit automatically starts when batteries have been installed. - Page 17 CONTROL UNIT OPERATION (Type 2) Battery Voltage Check 1) The current battery status for the two battery packs is continously shown in the default view. 2) Check the battery voltage for the two battery packs. New batteries should read at least 11V. The minimum allowable battery voltage when the container is in use is 9V;...
-
Page 18: Control Unit Operation (Type 3)
CONTROL UNIT OPERATION (Type 3) CONTROL UNIT OPERATION (Type 3) Mounting Batteries 1) Open the door to the control unit. 2) Place 16 "D-cell" alkaline batteries in the holder. Voltage 1.5V IEC / JIS LR 20 ANSI / NEDA 3) Ensure proper battery polarity (Figure 12). Figure 12 Start the control unit 1) Press the ”On/Off"... - Page 19 CONTROL UNIT OPERATION (Type 3) Battery Voltage Check 1) To check the battery voltage, press the "Menu/Enter" button twice. 2) Check the battery voltage for the two battery packs. New batteries should read at least 11V. The minimum allowable battery voltage when the container is in use is 9V; change the batteries as necessary.
-
Page 20: Dry Ice Calculation
Calculate Dry Ice Amount for Container Preconditioning Only authorized persons should perform dry ice calculations. It is strongly recommended to have Envirotainer perform the calculation. To calculate the amount of dry ice needed to precondition the container: 1) Note the container temperature (in Celsius) prior to preconditioning. Although using the actual container temperature is preferred, an estimate based on the ambient temperature is acceptable. - Page 21 DRY ICE CALCULATION Calculation Example - Dry Ice Preconditioning An RKN container needs preconditioning with dry ice before loading cargo that has a 5°C temperature requirement. The current ambient temperature is 25°C. 1) The container temperature is 25°C 2) The set temperature is 5°C 3) Container Temp - Set Temp = 20°C 4) Read up from 20°C to the line for RKN and across to the left...
- Page 22 11)If the required amount of dry ice exceeds the bunker capacity, plan to re-ice the container Many variables, such as weather conditions, delays and handling, are beyond control. Envirotainer makes no guarantee that the amount of dry ice indicated in the tables is correct for any specific shipment.
- Page 23 DRY ICE CALCULATION Calculation Example - Container Shipment To calculate the amount of dry ice needed in a container, imagine that we have RKN container with a 5°C temperature requirement with the transportation schedule noted below. Also assume dry ice is used to precondition the container.
-
Page 24: Dry Ice Tables (Rkn)
DRY ICE TABLES (RKN) DRY ICE TABLES (RKN) Set Temperature +5°C Dry Ice Quantity Ambient temperatures from +10°C to +25°C, use wrapped dry ice (in Kilograms) Ambient temperatures from +25°C to +30°C, use unwrapped dry ice Ambient Temperature 10°C 15°C 20°C 25°C 30°C... - Page 25 DRY ICE TABLES (RKN) Set Temperature +15°C Dry Ice Quantity Ambient temperatures from +20°C to +30°C, use wrapped dry ice (in Kilograms) Ambient temperatures from +30°C to +40°C, use unwrapped dry ice Ambient Temperature 15°C 20°C 25°C 30°C 35°C 40°C Hours (59°F) (68°F)
- Page 26 DRY ICE TABLES (RKN) Set Temperature -20°C Dry Ice Quantity For all ambient temperatures, use unwrapped dry ice (in Kilograms) Ambient Temperature 10°C 15°C 20°C 25°C Hours (50°F) (59°F) (68°F) (77°F) Doc. No. OM-101 Version 1.9: Jan. 16, 2009 26 (40)
-
Page 27: Dry Ice Tables (Rap)
DRY ICE TABLES (RAP) DRY ICE TABLES (RAP) Set Temperature +5°C Dry Ice Quantity Ambient temperatures from +10°C to +25°C, use wrapped dry ice (in Kilograms) Ambient temperatures from +25°C to +30°C, use unwrapped dry ice Ambient Temperature 10°C 15°C 20°C 25°C 30°C... - Page 28 DRY ICE TABLES (RAP) Set Temperature +15°C Dry Ice Quantity Ambient temperatures from +20°C to +30°C, use wrapped dry ice (in Kilograms) Ambient temperatures from +30°C to +40°C, use unwrapped dry ice Ambient Temperature 15°C 20°C 25°C 30°C 35°C 40°C Hours (59°F) (68°F)
- Page 29 DRY ICE TABLES (RAP) Set Temperature -20°C Dry Ice Quantity For all ambient temperatures, use unwrapped dry ice (in Kilograms) Ambient Temperature 10°C 15°C 20°C 25°C Hours (50°F) (59°F) (68°F) (77°F) Doc. No. OM-101 Version 1.9: Jan. 16, 2009 29 (40)
-
Page 30: Technical Specification Rkn T
TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION RKN t Cooling system Thermostat-controlled heat exchanger powered by 16 D-cell alkaline batteries and uses dry ice as coolant. Max ice bunker capacity when using block ice 180 kg (up to 50% less capacity if dry ice pellets are used) - Page 31 TECHNICAL SPECIFICATION External Dimensions Internal Dimensions Note free space requirements in front of the fan Profile of loading space Width 1355 mm Note that the internal dimensions are for "t2" containers and that there will be small deviations for different "t1" container models Doc.
-
Page 32: Technical Specification Rap T
TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION RAP t Cooling system Thermostat-controlled heat exchanger powered by 16 D-cell alkaline batteries and uses dry ice as coolant. Max ice bunker capacity when using block ice 300 kg (up to 50% less capacity if dry ice pellets are used) 660 lbs Set temperature range -20°C to +20°C... - Page 33 TECHNICAL SPECIFICATION External Dimensions Internal Dimensions Note free space requirements in front of the fan Profile of loading space Width 2065 mm Note that the internal dimensions are for "t2" containers and that there will be small deviations for different "t1" container models Doc.
-
Page 34: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING 1. NO CONTROL UNIT DISPLAY 1.1 Are 16 D-cell Alkaline Insert batteries batteries in the container? 1.2 Is the battery polarity Re-insert batteries correct? 1.3 Replace batteries. Is there a display? 1.4 Is there contact between 1.5 Is the battery holder 1.6 Adjust contact spring all batteries and connectors? malformed? - Page 35 TROUBLESHOOTING 2. CONTROL UNIT DOES NOT OPERATE CORRECTLY 2.1 Is there a display? Go to: 1. No control unit display 2.2 Is the battery voltage Replace batteries above 9V in both circuits? 2.3 Do the buttons operate, Replace container and can the set temperature (see note 1) be adjusted? 2.4 Remove and replace the...
- Page 36 TROUBLESHOOTING 3. FAN DOES NOT OPERATE 3.1 Is there a display? Go to: 1. No control unit display 3.2 Is the temperature in the 3.3 Reduce set temperature to container at least 3°C above confirm that the fan turns on the set point? (perform fan operation test) 3.4 Is the battery voltage...
- Page 37 TROUBLESHOOTING 4. CONTAINER TEMPERATURE TOO WARM (REFRIGERATED PRODUCT) 4.1 Sufficient amount of dry ice Add dry ice in bunker? 30kg RKN, 40kg 4.3 Monitor container 4.4 Redistribute dry ice in 4.2 Container recently exposed temperature returns to range? bunker or unwrap some ice to sun/high temperatures? 4.5 Container stored at a Move container to cooler area...
- Page 38 TROUBLESHOOTING 5. CONTAINER TEMPERATURE TOO COLD (REFRIGERATED PRODUCT) Monitor container temperature 5.1 Container recently exposed returns to range? to temperatureslower than 5°C above set point? 5.2 Is container stored at Move container to warm area temperatures lower than 5°C (at least 5°C above set point) above set point? 5.3 Is there excessive ice in Remove some of the dry ice...
-
Page 39: Rkn / Rap Container Checklist
RKN / RAP CONTAINER CHECKLIST RKN / RAP CONTAINER CHECKLIST For Refrigerated and Controlled Room Temperature Products CONTAINER PRECONDITIONING Using a Cold Room Put 16 Alkaline D-cell batteries in the battery holder. Check the battery voltage. Perform fan operational check. Turn off the control unit or remove the batteries from holder. - Page 40 RKN / RAP CONTAINER CHECKLIST RKN / RAP CONTAINER CHECKLIST For Deep Frozen Products CONTAINER PRECONDITIONING Using a Cold Room Put 16 Alkaline D-cell batteries in the battery holder. Check the battery voltage. Perform fan operational check. Turn off the control unit or remove the batteries from holder. Place container in a cold room set at the desired product temperature.
