HGSI PMDW Series Quick Start Manual

QUICK START GUIDE

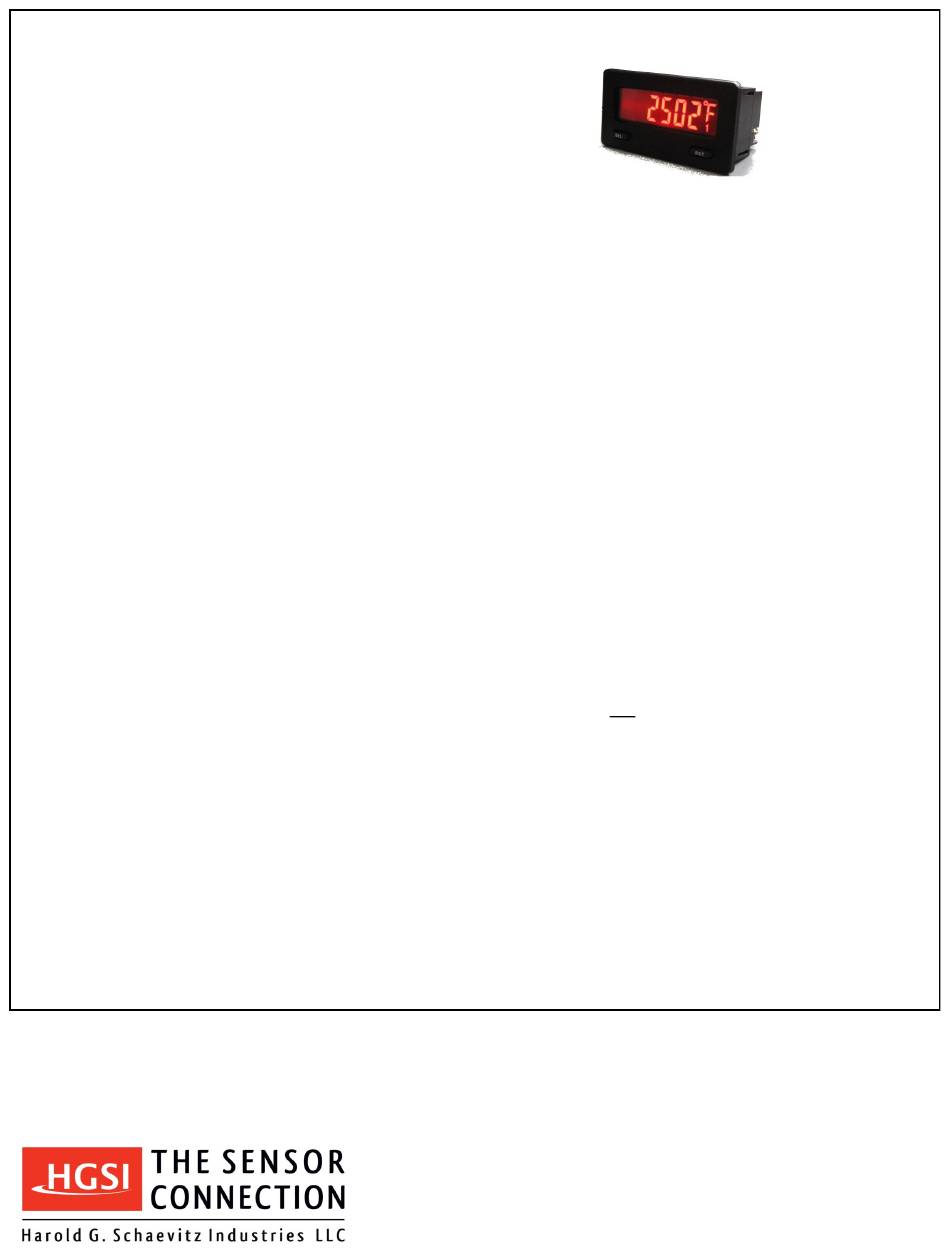

PMDW Series Digital Thermocouple Meter
p/n: PMDW-RLC5TCBB1

GENERAL FUNCTIONS

Wiring the EGT probe to the meter

(aka: Why is the temperature reading going down?)
EGT probe Yellow wire = ( + ) Positive
EGT probe Red wire = ( - ) Negative

Putting the meter into Peak mode

1. Press SEL key once (the MAX LEDs will turn on)

Resetting the Peak value

1. Press RST key for 3 seconds

Returning the meter to Real-Time mode

1. Press SEL key once (the MAX LEDs will turn off)
Setting the alarm parameter (only if alarm option is installed)
1. Hold SEL key down for 3 seconds until display window flashes "SPt-1"
2. Press RST key once (x1) display window will show the current high alarm setpoint
3. Press SEL key to advance to the next digit
4. Press RST key to increment the digit by one
5. Enter the numerical temperature value that you want the alarm to turn ON at
6. Hold SEL key down for 3 seconds until display window flashes "CodE" and "000"
7. Press SEL key once (x1) to exit
