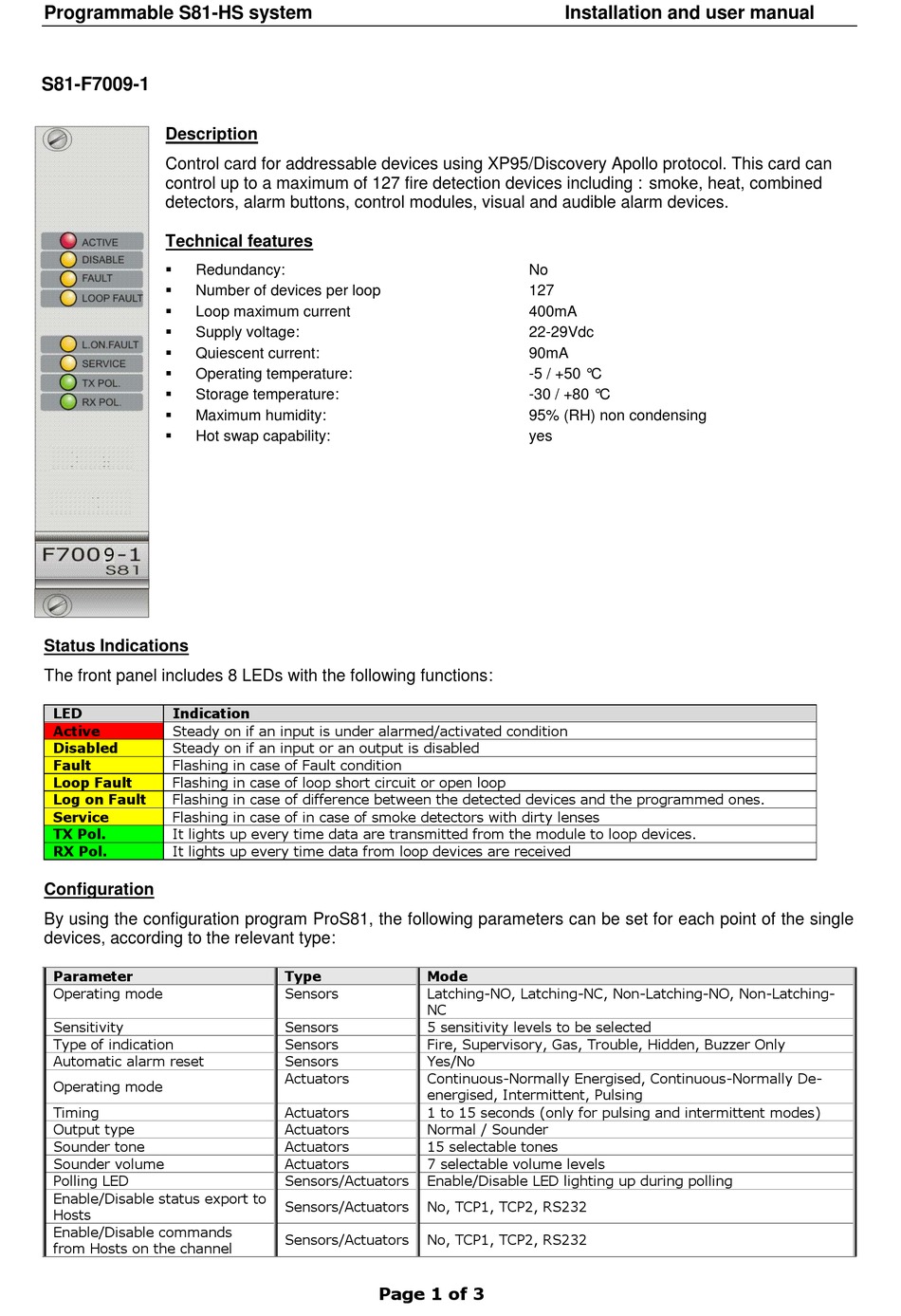

Scame S81-HS Installation And User Manual

Programmable S81-HS system
S81-F7009-1
Description
Control card for addressable devices using XP95/Discovery Apollo protocol. This card can
control up to a maximum of 127 fire detection devices including : smoke, heat, combined
detectors, alarm buttons, control modules, visual and audible alarm devices.
Technical features

Redundancy:

Number of devices per loop

Loop maximum current

Supply voltage:

Quiescent current:

Operating temperature:

Storage temperature:

Maximum humidity:

Hot swap capability:
Status Indications
The front panel includes 8 LEDs with the following functions:
LED Indication
Active Steady on if an input is under alarmed/activated condition
Disabled Steady on if an input or an output is disabled
Fault Flashing in case of Fault condition
Loop Fault Flashing in case of loop short circuit or open loop
Log on Fault Flashing in case of difference between the detected devices and the programmed ones.
Service Flashing in case of in case of smoke detectors with dirty lenses
TX Pol. It lights up every time data are transmitted from the module to loop devices.
RX Pol. It lights up every time data from loop devices are received
Configuration
By using the configuration program ProS81, the following parameters can be set for each point of the single
devices, according to the relevant type:
Parameter
Operating mode
Sensitivity
Type of indication
Automatic alarm reset
Operating mode
Timing
Output type
Sounder tone
Sounder volume
Polling LED
Enable/Disable status export to
Hosts
Enable/Disable commands
from Hosts on the channel
Type Mode
Sensors Latching-NO, Latching-NC, Non-Latching-NO, Non-Latching-
NC
Sensors 5 sensitivity levels to be selected
Sensors Fire, Supervisory, Gas, Trouble, Hidden, Buzzer Only
Sensors Yes/No
Actuators Continuous-Normally Energised, Continuous-Normally De-
energised, Intermittent, Pulsing
Actuators 1 to 15 seconds (only for pulsing and intermittent modes)
Actuators Normal / Sounder
Actuators 15 selectable tones
Actuators 7 selectable volume levels
Sensors/Actuators Enable/Disable LED lighting up during polling
Sensors/Actuators No, TCP1, TCP2, RS232
Sensors/Actuators No, TCP1, TCP2, RS232
Page 1 of 3
Installation and user manual
No
127
400mA
22-29Vdc
90mA
-5 / +50 °C
-30 / +80 °C
95% (RH) non condensing
yes
