Summary of Contents for Montpelier SCE50W

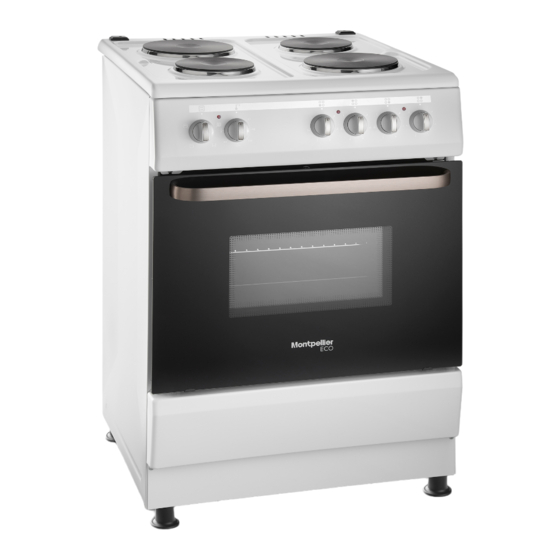

- Page 1 Installation and Operating Instructions Freestanding Single Cavity Cooker SCE50W & SCE60W 50/60cm - White Please read these instruction carefully before attempting to install or use this appliance. We recomment that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Freestanding Cooker. Our cookers have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your freestanding cooker to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
Dear Customer, Pieces of packaging (plastic bags, polystyrene etc.) must not be left within reach of children, as they are potentially dangerous. Please dispose of packaging thoughtfully by the appropriate means. To this effect, we recommend that you read the entire guide carefully before operating the product and keep it as a reference. -
Page 4: Important Warnings
IMPORTANT WARNINGS • WARNING: This appliance must be earthed! • Ensure that the electricity supply is turned OFF before installing your appliance. • Ensure that the appliance is switched off before replacing the oven lamp. If the supply cord is damaged, it must be replaced by the manufacturer, •... - Page 5 appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. • Use oven gloves when using cooker. Do not touch any hot surfaces • Do not carry the cooker by the handle. •...
- Page 6 • If the product has a digital timer, you must reset after a loss of power. Otherwise, your oven will not operate. • Caution: Accessible parts may be hot when the grill is in use. Young children should be kept away” •...
-
Page 7: Technical Features Of Your Oven
TECHNICAL FEATURES OF YOUR OVEN (*) Optional SPECIFICATIONS 50 x 50 50 x 60 60 x 60 Outer width 500 mm 500 mm 600 mm Outer depth 600 mm 600 mm 650 mm Outer height 855 mm 855 mm 855 mm Inner width 392 mm 392 mm... - Page 8 The manufacturer is not responsible for damage that may arise as a result of the appliance not be connected to an earthed system. • Your oven is for use with 230V/400V AC, 50 – 60 Hz or 220-240V/380- 415V AC, 50-60 Hz electric supply. If your supply is different from the specified value, contact your authorized service agent.
- Page 9 WALL FIXING • Before using the appliance, in order to ensure safe use, be sure to fix the appliance to the wall using the chain and hooked screw supplied. Ensure that the hook is screwed into the wall securely WARNING! In order to prevent tipping of the appliance, this stabilizing metod must be installed.
-
Page 11: Description Of Cooker & Control Panel
DESCRIPTION OF COOKER & CONTROL PANEL DESCRIPTION OF COOKER: Symbols for functions of cooker: Closed Oven heating element Top heating element Grill &turnspit Oven & grill heating element Turbo fan Grill heating element Turbo fan &heating element Manual using Timer Turnspit Oven lamp... -
Page 12: Using Of Your Cooker
1- Top lid 9- Oven door 2- Cooktop 10- Control knobs 3- Fascia panel 11- Bottom position 4- Wire shelf 12- Middle-lower 5- Oven tray 13- Middle- upper 6- Cavity 14- Top position 7- Bottom cover plate 15- Oven lamp (Option) 8- Door handle USING YOUR COOKER Before using cooker please remove all flammable tapes, styrofoam or... - Page 13 5. ATTENTION! Do not operate the hot plate without a saucepan on it, and do not operate it with an empty saucepan. 6. Before cleaning the surface of the hot plates, turn off the hot plates and let them cool down. 7.
- Page 14 Filo pastry 180 - 220 35 - 45 Savory pastry 160 - 180 20 - 30 Lamb meat 200 - 230 90 - 120 Veal 200 - 230 90 - 120 Mutton 210 - 230 90 - 120 Chicken (in 210 - 230 75 –...
-
Page 15: Using Heat Shield
Check the general fuse box and correct if there are any breakers off. Check the fuse box to see if the trip or the breakers are off. If the problem repeats, call technical service. There is no current Digital Timer/ Display (models with digital timer) Problem Possible Causes Suggested Solutions... - Page 16 And then secure the safety panel in between oven and front cover by gently closing the cover. It is important for cooking to keep the door open when cooking in grill mode. The Safety panel will provide an ideal cooking circumstance while protecting control panel and buttons.
-
Page 17: Maintenance And Cleaning
MAINTENANCE and CLEANING 1. Switch the power off. 2. While the oven is operating or shortly after it starts operating, it is extremely hot. You must not touch the heating elements. 3. Never clean the interior parts, panel, lid, trays or any other parts of the oven with the tools like a hard brush, cleaning mesh or knife. - Page 18 Changing Oven Lamp: Let the oven cavity and grill burner or heating elements cool down. Switch off the electrical connection of your appliance before changing the lamp. Change with a 15-25W, 300 C˚ temperature resistant lamp. WARNING: The electric plate should never be used for “house heating” purposes and should always be operated with appropriate pots and pans.
- Page 19 PRODUCT FICHE 50x50 &50x60 Plate Free 60x60 Free Standing Electric Type: Standing Electric Cooker Cooker Cavity Number: Energy Source: Electrical Electrical Volume: 52lt 64 lt Energy Consumption / 0,72 kWh 0,78 kWh Convection Mode (EC): Energy Efficiency Index (EEI): 95,6 95,4 Energy Class: EN 60350-1 / Regulation...
- Page 20 Here For You After-sales assistance If you continue to experience problems with your Freestanding Cooker, please call the Montpellier customer service helpline on: 01527 888133. Please have all your product details available, including the model number, serial number, date of purchase, and your retailer’s details before registering a fault.
- Page 21 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
