- Page 1 VENTURA FLEX OWNER’S MANUAL MODEL: TM-105 VENTURA FLEX PL 5011305 Website: www.tortillamachine.com CONFORMS TO UL Rev 06222018 Phone: 281-994-7010 STD. 763 CERT. TO CSA Email: info@tortillamasters.com STD. C22.2 #195 Address: 5005 Gessner Rd. Ste C, Houston TX, 77041...
-
Page 2: Important Safety Information
IMPORTANT SAFEGUARDS SAVE THESE INSTRUCTIONS When using an electrical machine, basic safety precautions should always be followed to reduce the FOR COMMERCIAL USE risk of fire, electric shock and/or injury, including the following: WARNING: RISK OF FIRE OR ELECTRIC READ INSTRUCTIONS BEFORE SHOCK... -
Page 3: Table Of Contents
CONTENTS Content Page IMPORTANT SAFETY INFORMATION INTRODUCTION OPERATING INSTRUCTION TORTILLA THICKNESS ADJUSTMENT COOKING INSTRUCTIONS TIPS AND HINTS STANDARD ACCESSORIES ADDITIONAL ACCESSORIES TORTILLA RELEASE WIRE PREPARATION TORTILLA RELEASE WIRE INSTALLATION INSTALLING METAL STRAPS INSTALLING CONVEYOR MESH REMOVING CONVEYOR MESH INSTALLING EXTENDED TRAY CLEANING INSTRUCTIONS TROUBLESHOOTING SPEC SHEET... -
Page 4: Introduction

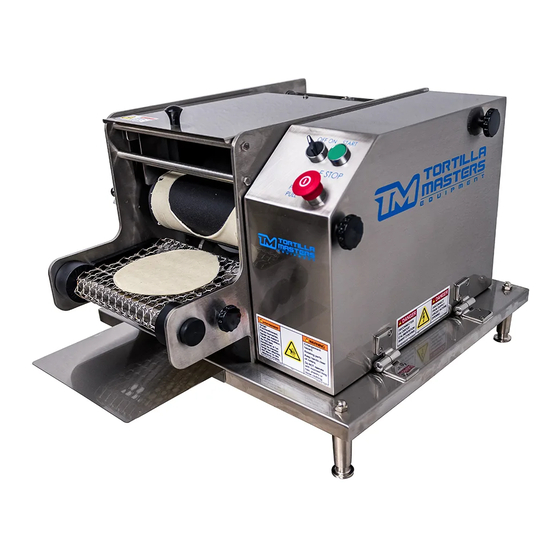

INTRODUCTION Congratulations on your purchase of the Ventura Flex! The TM-105 Ventura Flex is the first tabletop corn tortilla machine by Tortilla Masters Equipment. Ideal for restaurants, this machine’s specialty is to produce a perfect corn tortilla that is ready to cook. The Ventura Flex is NSF and ETL certified. -
Page 5: Operating Instruction
OPERATING INSTRUCTIONS TORTILLA MACHINE OPERATION INSTRUCTIONS 1. Place a clean tortilla cutter in the unit as described in the “Installation of a Tortilla Cutter” 2. Make sure the cutting wire is on properly and tightened with the metal straps 3. Place about half pound of dough, over between and along the two black rollers, making sure that the dough is along the length of the rollers 4. -
Page 6: Tortilla Thickness Adjustment
TORTILLA THICKNESS ADJUSTMENT The Ventura Flex has the capacity to produce tortillas from 1/16 to 1/8 of an inch with the thickness adjuster plates on both sides, simply by loosening the knobs and adjusting the distance between the rollers to the desired thickness for the tortilla. The thickness adjuster plate is in between the two slotted locks that indicate the thickness limit allowed. -
Page 7: Cooking Instructions
COOKING INSTRUCTIONS MAKING THE MASA (TORTILLA DOUGH) Ingredients: Corn Flour 1.0 pounds (~ 0.45 kg) Water 1.3 pounds (~ 20.0 fl-oz) In a mixer, thoroughly stir the corn flour and water until it is all incorporated (about 4 minutes) and a smooth dough is formed which does not stick to your hands. -
Page 8: Tips And Hints
TIPS AND HINTS Have the prepared dough ready to feed the machine. Disengage the tortilla cutter before you place the first piece of dough over the black rollers. The first piece of dough you place over the black rollers, needs to be about half pound in tubular shape laydown. -
Page 9: Standard Accessories
STANDARD ACCESSORIES Extended Tray Tortilla Hopper System TC16 Tortilla Cutter TMSA-200 TMSA-201 Metal Straps – 10 pcs Metal Wire – 10 pcs... -
Page 10: Additional Accessories
ADDITIONAL ACCESSORIES Item Raw Tortilla Cooked Tortilla Cooked Tortilla (centimeters) (centimeters) (Inches) TC10 3 ½’’ TC11 4’’ TC12 4 5/16” TC13 4 ¾’’ TC14 5 1/8” TC15 5 ½’’ TMSA-100 Easy Access Turn Table Easily access the Ventura Flex in any spot of your kitchen. Just turn it on the spin tray! For accessible removal of the tortilla cutters and easy cleaning. -
Page 11: Tortilla Release Wire Preparation
TORTILLA RELEASE WIRE PREPARATION Pull about 3½ inches of wire around a pen or pencil. With one end of the wire, rotate the pen or pencil to make four tight wraps with the tail around the line wire creating a loop. -
Page 12: Tortilla Release Wire Installation
TORTILLA RELEASE WIRE INSTALLATION 1. Turn OFF and unplug the unit. 2. Remove both metal straps OFF the frontal roller. 3. Open the side cover. 4. Take a wire from the spare bag. 5. Make loop as shown in previous page (page 9 TORTILLA RELEASE WIRE PREPARATION”) “... -
Page 13: Installing Metal Straps
INSTALLING METAL STRAPS Important: The wire must be installed completely from the right side to the left side and tightened with the guitar tuning peg before beginning this step. Once the wire is installed, Close and secure the metal It’s important that the tail the metal straps (on both strap. -
Page 14: Installing Conveyor Mesh
INSTALLING CONVEYOR MESH Wrap the conveyor mesh Insert the lock in between the Above is how the conveyor around the sprockets. two links while twisting it. mesh should look with the lock installed. Twist the black cap on to the Insert the stainless-steel shaft Continue inserting the stainless-steel shaft to the left... -
Page 15: Removing Conveyor Mesh
REMOVING CONVEYOR MESH Twist the black roller caps Push the stainless-steel shaft Pull the stainless-steel shaft and remove them from both with your finger. and remove it. sides. Find opening After disassembling Pull the lock from the end conveyor mesh (which is conveyor system your... -
Page 16: Installing Extended Tray
INSTALLING EXTENDED TRAY Included should be 2 screws and 2 butterfly nuts, along with the extended tray. Total, there will be five parts. Begin by lining up the screw holes as shown by the red arrows. After lining up the holes, insert the screws through the holes. -
Page 17: Cleaning Instructions
CLEANING INSTRUCTIONS WARNING: The unit must be disconnected from power source prior to cleaning. Allow unit to cool if still warm. Do not use power-cleaning equipment. DO NOT hose down or pressure wash any part of the Ventura Flex NEVER use a scrubber pad or abrasive material to clean the Ventura Flex NEVER use bleach or bleach-based cleaner Dilute detergent per supplier’s instructions The entire Ventura Flex, including removable parts, must be thoroughly cleaned and sanitized... - Page 18 Tortilla Cutter: Remove and hand wash using mild soap and water, then rinse, dry, and sanitize. Tortilla Cutter Support: Hand wash using a damp cloth, mild soap and water. Then rinse, dry, and sanitize. Remove Tortilla Remove/Release Proceed with cleaning springs connecting to the Cutter.
-
Page 19: Troubleshooting
TROUBLESHOOTING Dough sticks on the back roller Cause Remedy The dough is too wet Make new dough with less amount of water Dough will not stick on front roller Cause Remedy The metal straps do not rotate with the The metal straps must be firmly tightened to the roller roller The dough is too dry Add more water to the dough... -
Page 20: Spec Sheet
VENTURA FLEX Tabletop Corn Tortilla Machine This machine’s specialty is to produce perfect corn tortillas ready to cook. Standards Features Production: 840 raw tortillas per hour NSF & ETL certified Stainless steel construction Food grade plastic rollers ... -
Page 21: Electrical Diagram
ELECTRICAL DIAGRAM... -
Page 22: Warranty
WARRANTY Tortilla Masters Equipment (“TME”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 1 year on parts (excludes wear/expendable parts).
