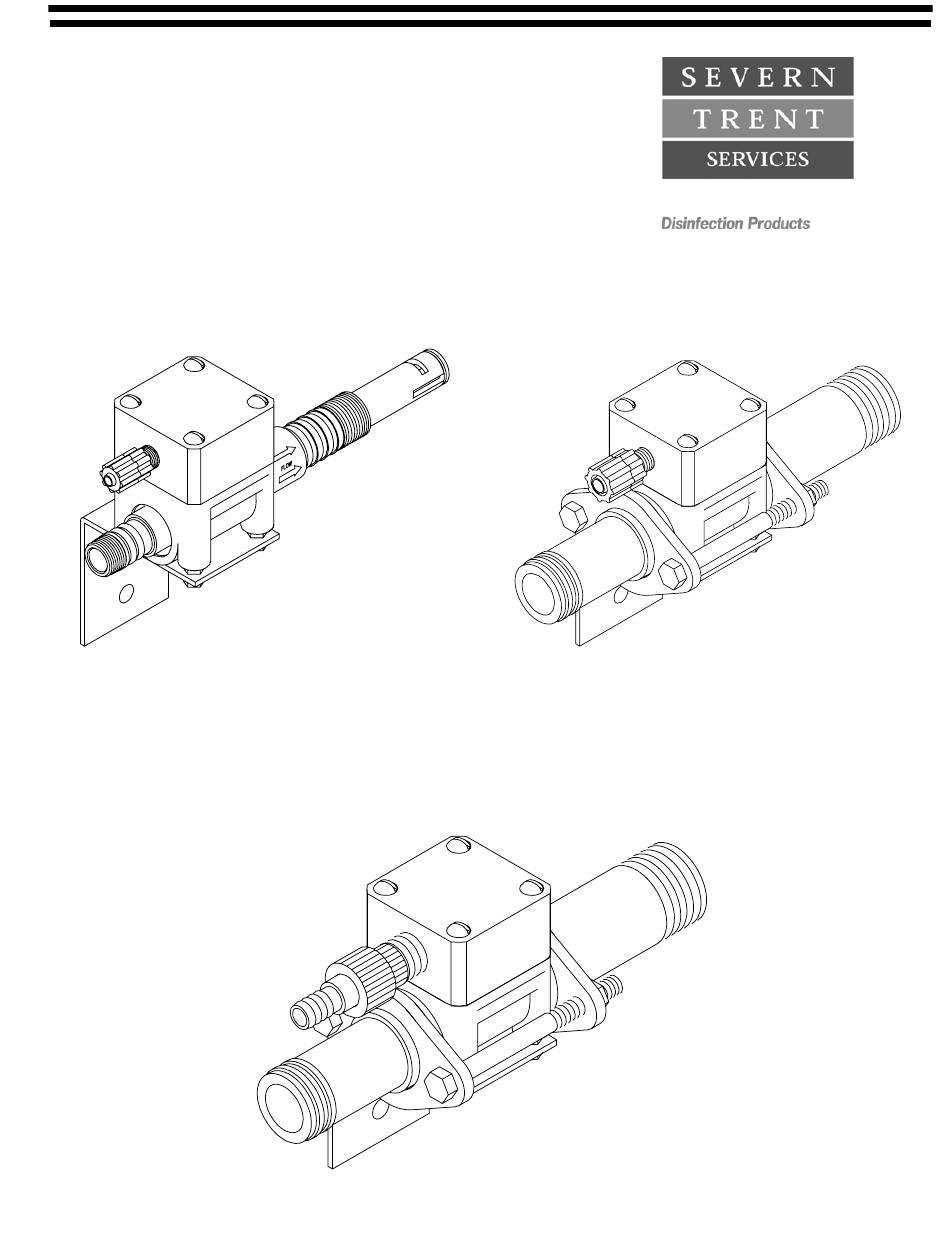

- Page 1 Instruction Manual — O-Ring Ejector Chlorine & Sulfur Dioxide to 500 PPD (10 kg/h) 100 PPD (2 kg/h) Maximum 250 PPD (5 kg/h) Maximum 500 PPD (10 kg/h) Maximum - 1 - 122.6006.9...
- Page 2 If you do not understand these instructions, please call Severn Trent Water Purification (STWP), Inc. for clarification before commencing any work at +1 215 997 4000 and ask for a Field Service Manager. Severn Trent Water Purification, Inc. reserves the rights to make engineering refinements that may not be described herein. It is the responsibility of the installer to contact STWP Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................4 General ........................4 Warranty ........................4 Specifications ......................4 OPERATION ........................5 General ........................5 Installation ........................5 Ejector Vacuum ......................6 Piping ......................... 6 Vacuum Connections ....................6 START-UP ..........................7 Vacuum Check ......................7 SHUTDOWN ........................ -
Page 4: Introduction
INTRODUCTION General ® The ADVANCE ejectors are expertly engineered and carefully tested to assure yearsof satisfactory operation. They are constructed of the finest materials available for gas service. Correct installation and proper care will ensure best operation. Read instructions carefully and save for future reference. This instruction manual only covers our standard O-Ring ejector (Reference 122.3001). -
Page 5: Operation
OPERATION General The ejector is designed to complement Severn Trent Services Series 200 vacuum regulators. The ejector is the heart of the system providing the vacuum necessary to operate the vacuum regulator. The diaphragm ejector is to be used in continuous feed applications. -
Page 6: Ejector Vacuum
2.2.3 Reconnect nozzle and check valve assembly to diffuser. The nozzle may extend through the assembly from either side. A gasket should be on each side. Screw the nozzle into the diffuser HAND TIGHT. (The check valve assembly may be installed in any position.) 2.2.4 Other types of diffuser and ejector installations may be desired for certain applications: The ejector (nozzle and check valve assembly) may be located near the vacuum regulator. -
Page 7: Start-Up
START-UP Vacuum Check The ejector, its water supply and solution lines, must be properly installed and checked before operating the vacuum regulator. Unless the ejector is creating a vacuum, the vacuum regulator will not work. 3.1.1 Disconnect the vacuum tubing from the ejector. 3.1.2 Open the ejector water supply valve. -
Page 8: Shutdown
SHUTDOWN WARNING Before disconnecting or disassembling the ejector, shutdown the system as described below. Failure to do so may result in serious injury or death. Close the gas supply valve at the pressure source(s) to shut off the gas flow. This is normally the gas cylinder and/or container valve(s) supplying the gas dispensing (regulator) system. -
Page 9: Service
SERVICE It is recommended that the Gas Dispensing System be inspected and serviced a minimum of once per year. More frequent service periods may be required due to: 1) the type, quality and quantity of the gas being handled, 2) the complexity of the gas supply system, 3) the quality and quantity of water or process liquid being used to operate the ejector(s), and 4) operation procedures. -
Page 10: Functional Test
Functional Test When the ejector is reassembled, a functional test of the check valve assembly is recommended to check for proper ejector assembly and prevent future flooding of the vacuum regulator. 5.4.1 Do not connect vacuum tubing to vacuum regulator. 5.42 Turn on water supply. - Page 11 Figure 2 - 100 PPD (2 kg/h) Ejector - 11 - 122.6006.9...
- Page 12 Figure 3 - 250 PPD (5 kg/h) Ejector 122.6006.9 - 12 -...
- Page 13 Figure 4 - 500 PPD (10 kg/h) Ejector - 13 - 122.6006.9...
-
Page 14: Troubleshooting Chart
Design improvements may be made without notice. Represented by: Severn Trent Services 3000 Advance Lane Colmar, PA 18915 United States Tel +1 215 997 4000 • Fax +1 215 997 4062 Web: www.severntrentservices.com E-mail: marketing@severntrentservices.com MAY/10 Copyright 2010 Severn Trent Services 122.6006.9 - 14 -...
