- Page 1 VEHICLE RECOVERY ELECTRIC WINCH DOMIN8R SERIES INSTRUCTIONS...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Warning! Observe safety precautions for personal safety and the safety of others. Improper equipment operation may cause personal injury and equipment damage. Read the following carefully before attempting to operate your winch and keep the instructions for future reference. 1. - Page 3 WINCH OPERATION WARNINGS Read the following carefully before attempting to operate your winch and keep the instructions for future reference. • The uneven spooling of rope, while pulling a load, is not a problem, unless there is a rope pile up on one section of the drum which can damage the winch.
- Page 4 WINCH OPERATION WARNINGS (cont.) Battery: • Be sure that the battery is in good condition. Avoid contact with battery acid or other contaminants. • Always wear eye protection when working around a battery. • Have the engine running when using the winch, to avoid flattening the battery. Use a minimum 650CCA battery.
-
Page 5: Installation
INSTALLATION MOUNTING YOUR WINCH: • The winch is to be mounted into a suitable steel mounting frame using the 4 point foot mounting system in either a horizontal or vertical plane. • Before commencing installation ensure the mounting facility being used is capable of withstanding the winch’s rated capacity. - Page 6 NOTE: • Your battery must be kept in good condition. • Be sure battery cables are not drawn taught across any surfaces, which could possibly damage them. • Corrosion on electrical connections will reduce performance or may cause a short. •...
-
Page 7: Winch Operation
WINCH OPERATION SUGGESTION: The best way to get acquainted with how your winch operates is to make a few test runs before you actually need to use it. Plan your test in advance. Remember you can hear your winch as well as you can see it operate. -
Page 8: Maintenance
OPERATING: • Ensure the vehicle is secure by applying the parking brake or chocking the wheels • Pull out the winch rope the desired length and connect to an anchor point. • Disengaging the winch clutch allows rapid uncoiling of the rope for hooking onto the load or anchor point. •... - Page 9 To use hand remote, plug in as shown. When you finish your recovery, remove from control box. Never leave your remotes in the control box when not in use. To use wireless remote, un-plug hand piece and activate wireless mode as shown. When you finish your recovery, remove from control box.

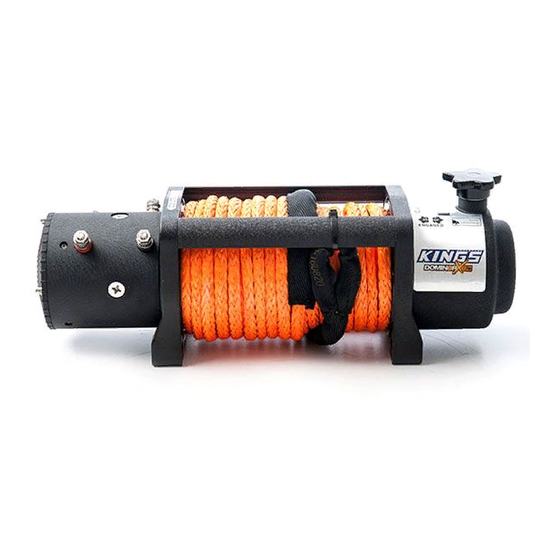

- Page 10 12000LBS FEATURES AND SPECIFICATIONS Single line rated pull 12000LB (5440kg) Motor 7.2hp/5.2kw.Series Wound Main body Sealed Control Remote switch, 12ft (3.7m) lead Remote Control Included Gear train 3 Stage Planetary Gear reduction ratio 218:1 Clutch Keyway Cam Braking Action Automatic Cable 9.5mm x 26m synthetic rope Fairlead...
- Page 11 12000LBS WINCH PARTS LIST Item Number Part No. Description 0107/08-01 Screw M5x12 0115/16-02 O-ring ¢9x1.5 0107/08-38 Clutch Handle 0107/08-24 O-ring ¢18x1 0107/08-04 Clutch Bush 0107/08-06 Spring 0107/08-07 Clutch shaft 0107/08-08 Gear Box 0107/08-09 Bushing 0107/08-10 Centre Gear 0107/08-11 3rd Planetary gear assy 0107/08-12 Clutch Gear 0107/08-13...
- Page 12 12000LBS EXPLODED DIAGRAM...
- Page 13 Solenoid and Drawing: Drainage holes...
- Page 14 Instruction for Cut off switch INSTRUCTION FOR CUT OFF SWITCH 1. The cut off switch is for when the winch is not in use. 2. Failure to disconnect the power to the winch could result in the following problems A. If the winch is not periodically maintained the wiring could become loosened and cause difficulties. B.
- Page 15 WARRANTY REPAIRS CAN ONLY BE AUTHORISED BY 4WDSUPACENTRE (cont). • Any modifications to the winch and or wiring will void your warranty • The purchaser is responsible for the risk and cost of transportation, and in the case of goods being in sound working order, the owner may be charged a fee.
-
Page 16: Warranty
12 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? a. Under normal usage conditions, this warranty covers: b. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
