- Page 1 VP1-250-eSSD(A/C) Single-Slot 3U Open-VPX Rugged NVMe Disk Module USER’S MANUAL Copyright © 2019 Phoenix International Systems, Inc. All Rights Reserved...
- Page 2 However, no responsibility is assumed for inaccuracies. Nor does Phoenix International assume any liability arising out of the application or use of any product or circuit described herein. Phoenix International reserves the right to make changes to any product and product documentation in an effort to improve performance, reliability or design.

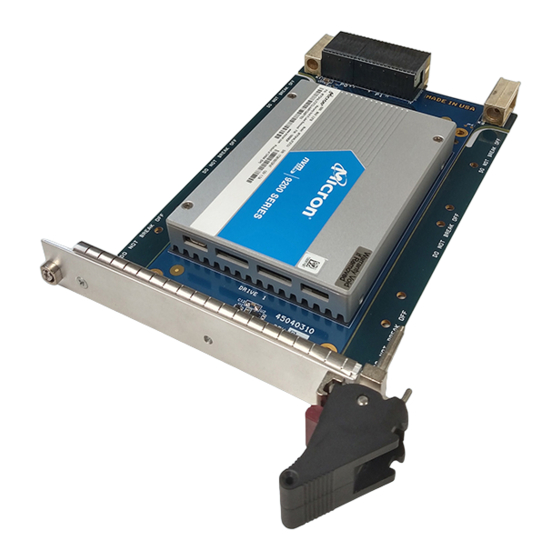

- Page 3 The VP1-250-eSSD is a 3U VPX storage module that supports U.2 form factor NVMe solid-state hard drives. The VP1-250-eSSDs outstanding performance and versatility is enabled by Phoenix Internationals state-of-the-art technology which provides very high transfer and I/O rates, enhanced endurance and maximum data integrity.
- Page 4 Ensure that all power is removed from the VPX backplane before inserting the module. Prior to inserting the VP1-250-eSSD into the card cage, it is necessary to verify the slot the module will be inserted into is compatible with the module. VPX modules are typically keyed to prevent the insertion of a module into the wrong card cage slot.
- Page 5 VPX Connector P0: +12V +12V +12V +12V +12V +12V NVMRO PERST0 REFCLK+ REFCLK- VPX Connector P1: PETP0 PETN0 PERP0 PERN0 PETP1 PETN1 PERP1 PERN1 PETP2 PETN2 PERP2 PERN2 PETP3 PETN3 PERP3 PERN3 VP1-250-eSSD User’s Manual - 5 - Rev. C - 7/20...
- Page 6 2.5” U.2 NVMe Connector J1: J1-1 J1-2 J1-3 PERST0 REFCLK+ REFCLK- PETP0 PETN0 DRVACT PERN0 +12VPRE PERP0 +12V +12V PETP1 PETP3 PETN1 PETN3 PERN1 PERN3 PERP1 PERP3 PETP2 PETN2 PERN2 PERP2 VP1-250-eSSD User’s Manual - 6 - Rev. C - 7/20...
- Page 7 * Must use a Solid State drive capable of temperature range and shock and vibration. Compliance Specifications: The VP1-250-eSSD SATA/SAS Drive Module is designed to meet CE Emissions specification EN 55022, CE Immunity specification EN 50082-2 and FCC 47 CFR, Part 15, Class A when tested in a shielded enclosure.
- Page 8 Phoenix VPX products is restricted to that provided by their manufacturer only. If You Have a Problem If you are having a problem with a Phoenix International product, you should call our main number, (714) 283-4800, and ask for Customer Service. Please be prepared to supply as much detail as you can concerning the nature of the problem and the conditions in which the problem appeared.
